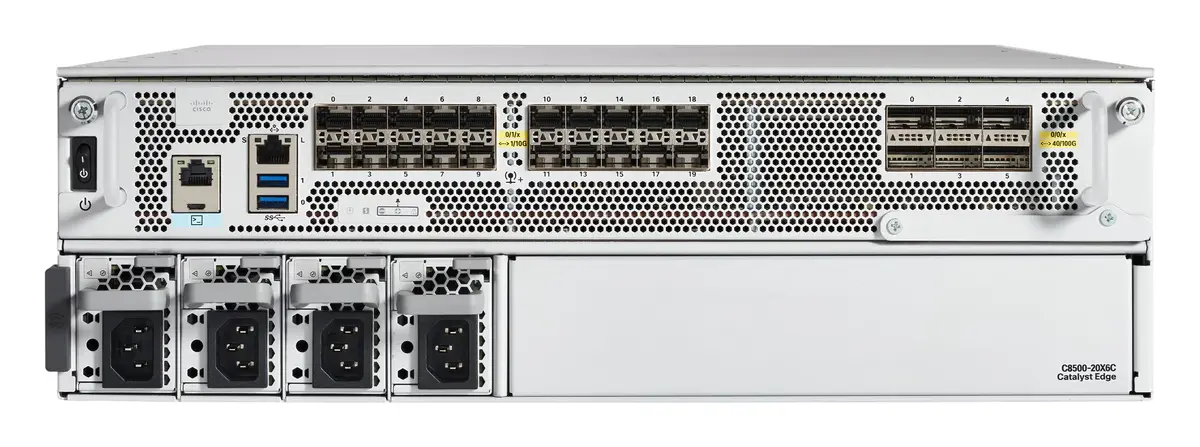

Cisco C8500-20X6C Catalyst 8500 SD-WAN Router

ModelC8500-20X6C

Cisco C8500-20X6C router: 20-port 1/10GE,, 6-port 40/100GE, All-new third-generation Quantum Flow Processor (QFP) ASIC, IPsec, Multicore control processor.

Port sayısı: 20 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

20-port 1/10GE,
6-port 40/100GE
All-new third-generation Quantum Flow Processor (QFP) ASIC
IPsec
Multicore control processor
Interface flexibility
DRAM
SSD storage

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 51 satır

SD-WAN IPsec Throughput (1400Bytes, clear text)	Up to 350Gbps
SD-WAN IPsec Throughput (IMIX, clear text)	Up to 100Gbps
SD-WAN Overlay Tunnels scale	8000 (10000)
IPv4 Forwarding Throughput (1400 bytes)	Up to 500Gbps
IPsec Throughput (1400 bytes, clear text)	Up to 400Gbps
Number of IPsec SVTI Tunnels	4000
Number of ACLs per system	8000
Number of IPv4 ACEs per system	380K
Number of IPv4 Routes	7M w/ default 64GB; (16M w/ default 64GB )
Number of IPv6 Routes	7M w/ default 64GB; (16M w/ default 64GB )
Number of Queues	256K
Number of NAT Sessions	32M
Number of Firewall Sessions	32M
Number of VRFs	8000
Sound Pressure	Typical: 63.3 dBA; Maximum: 79.3 dBA
Sound Power	Typical: 77.4 dBA; Maximum 93.3 dBA
Boyutlar (Y x G x D)	26.85 in. L x; 17.25 in. W x; 5.22 in. H
Rack Yüksekliği (RU)	3RU
Chassis weight with 2x AC power supplies and fan tray	77.5 lbs (4x AC); 75 lbs. (3x AC)
Isı Yayılımı	3753 BTU/hr and Max 5118 BTU/hr
Giriş Gerilimi	AC: 90 to 264 VAC; DC: -40 to -72VDC
Çalışma Sıcaklığı	32 to 104°F; (0 to 40°C)
Depolama Sıcaklığı	-40 to 150°F; (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 10 to 85%; Ambient (noncondensing) nonoperating and storage: 5 to 95%
NEBS criteria levels	GR-1089 and GR-63
Rakım	-500 to 10,000 feet; (-152 to 3048 meters)
MTBF (Arızalar Arası Ortalama Süre)	241,225 hours
Ports type	Configuration
Güvenlik Sertifikaları	UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; GB4943
EMC (Emissions)	47 CFR Part 15 Class A; ICES 003 Class A; AS/NZS CISPR 32 Class A; CISPR 22/CISPR 32 Class A; EN55022/EN55032 Class A; VCCI Class A; CNS-13438 Class A; KN32 Class A; IEC/EN 61000-3-2: Power Line Harmonics; IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
EMC (Immunity)	IEC/EN-61000-4-2: Electrostatic Discharge Immunity; IEC/EN-61000-4-3: Radiated Immunity; IEC/EN-61000-4-4: Electrical Fast Transient Immunity; IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports; IEC/EN-61000-4-6: Immunity to Conducted Disturbances; IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations; KN35
EMC (ETSI/EN)	EN300 386: Telecommunications Network Equipment (EMC); EN55022: Information Technology Equipment (Emissions); EN55032: Multimedia Equipment (Emissions); EN55024: Information Technology Equipment (Immunity); EN55035: Multimedia Equipment (Immunity); EN50082-1/EN-61000-6-1: Generic Immunity Standard
Max 1 GE	20x1GE
Max 10 GE	20x10GE
Max 40 GE + 10 GE	6x40GE + 20x10GE
Max 100 GE + 10 GE	6x100GE + 20x10GE
Max 40/100 GE + 10 GE	6x40/100GE + 20x10GE
Max 100 GE	2x100GE
Max 100 GE + 40 GE	1x100GE + 3x40GE
Max 100 GE + 40 GE + 10 GE	1x100GE + 1x40GE + 8x10GE
Max 10 GE + 40 GE	12x10GE + 3x40GE
Cisco ThousandEyes	ThousandEyes is natively integrated with eligible Catalyst 8500 Series Edge Platforms having greater than 8 GB DRAM and 8 GB bootflash/storage. Additional memory and storage may be necessary for concurrently running the ThousandEyes agent with containerized SD-WAN security services.
Protokoller	IPv4, Ipv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), …
High Availability	Software redundancy with dual IOS, Box-to-Box application-level redundancy
Encapsulations	Generic Routing Encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), High-Level Data Link Control (HDLC), and PPP over Ethernet (PPPoE)
Traffic management	Quality of Service (QoS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), and Network-Based Application Recognition (NBAR)
Cryptographic algorithms	Encryption: DES, 3DES, AES-128, or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512
Core Features	Ipv4, Ipv6, static routes, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), Overlay Management Protocol (OMP), Application Aware Routing (AAR), Traffic Engineering, Service Insertion, zero-trust, whitelisting, tamper-proof module, DTLS/TLS, Ipsec, classification, prioritization, low latency queuing, remarking, shaping, scheduling, …
Application Experience	Quality of Service (QoS), Forward Error Correction (FEC), COS Marking, Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Network-Based Application Recognition (NBAR), Software Defined Application Visibility and Control (SD-AVC), per tunnel QoS, Cloud nramp for SaaS, Enhanced Office 365 traffic steering, Direct Internet Access, Flexible Netflow (FnF)
Cryptographic Algorithms (Teknik Özellikler)	Encryption: AES-256 (in CBC and GCM modes), Internet Key Exchange (IKE), Cisco PKI; Authentication: AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit); Integrity: SHA-1, SHA-2
Security	Built-in end-to-end Segmentation (VPNs), ZBFW, PKI, DNS Layer Security, Security Internet Gateway (Umbrella, Zscaler), ALG for ZBFW

Sipariş Bilgileri 2 satır

Ürün Tanımı (Üretici)	20-port 1/10GE,; 6-port 40/100GE
Planlanan Satış Sonu (End-of-Sale) Tarihi	31.07.2027

Genel bakış

Cisco C8500-20X6C kullanım alanları ve özellikleri.

Cisco C8500-20X6C, Catalyst 8500 ailesinden şube ve kurumsal ağlar için güvenli SD-WAN destekli router platformudur.

The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.

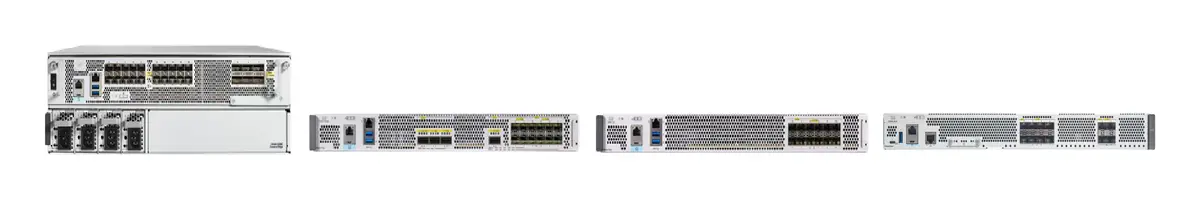

Cisco Catalyst 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU or 3RU (Catalyst C8500-20X6C) devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.

Öne Çıkan Özellikler

20-port 1/10GE,
6-port 40/100GE
All-new third-generation Quantum Flow Processor (QFP) ASIC
IPsec
Multicore control processor
Interface flexibility
DRAM
SSD storage
Redundancy
Form factor
Integrated security
x86 Based Platform Architecture

Tüm özellikler

20-port 1/10GE,
6-port 40/100GE
All-new third-generation Quantum Flow Processor (QFP) ASIC
IPsec
Multicore control processor
Interface flexibility
DRAM
SSD storage
Redundancy
Form factor
Integrated security
x86 Based Platform Architecture
High Performance Control Plane
Flash storage
SSD Storage

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 8500 Datasheet (EN)PDF · C8500-20X6C Catalyst 8500 Datasheet (PDF)PDF · C8500-20X6C

Sık sorulanlar

C8500-20X6C hakkında kısa yanıtlar.

C8500-20X6C fiyatı ne kadar?

C8500-20X6C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
