Cisco C9200L-48PL-4G 48 Port Gigabit PoE+ 4x1G SFP Yönetilebilir Switch

ModelC9200L-48PL-4G

Cisco C9200L-48PL-4G, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 370 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48 x Gigabit port
PoE+ destekli portlar, 370W PoE bütçesi
4x1G SFP uplink
Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 55 satır

Değiştirilebilir (FRU) Güç Kaynağı	Yes
Değiştirilebilir (FRU) Fan	No
Modüler Uplink	No
İstifleme Bant Genişliği	80 Gbps
SD-Access support	Limited (1 virtual network)
Birincil Güç Kaynağı	PWR-C5-600WAC
PoE Gücü (tek güç kaynağıyla)	370W
Optional secondary power supply	PWR-C5-600WAC
Available PoE power with additional secondary power supply	740W
İstifleme Desteği	StackWise-80
Stacking hardware	C9200L-STACK-KIT
Stack Üye Sayısı	8
Supported stack members	Other C9200L models with; same license level
Sanal Ağ Sayısı	1
MAC Adres Sayısı	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 Yönlendirme Girdisi	3,000
IPv6 Yönlendirme Girdisi	1,500
Multicast routing scale	1,000
QoS Girdisi	1,000
ACL Girdisi	1,500
Paket Tamponu	6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models
DRAM	2 GB
Flash Bellek	4 GB
VLAN ID Sayısı	4094
PVST instances	128
STP virtual ports (port VLANs) for PVST	13,000
STP virtual ports (port VLANs) for MST	13,000
Total switched virtual interfaces (SVIs)	512
Jumbo Frame	9198 bytes
IP SGT binding scale	10K
Number of IPv4 bindings	10K
Number of SGT/DGT policies	2K
Number of SXP sessions	200
Anahtarlama Kapasitesi	104 Gbps
Switch capacity with Stacking	184 Gbps
İletim Hızı	77.38 Mpps
İletim Hızı with Stacking	137 Mpps
Ağırlık (lb)	10.58
Ağırlık (kg)	4.80
Ortalama Güç Tüketimi (W, ATIS)	47.571
Güvenlik Sertifikaları	IEC 60950-1/62368-1; UL 60950-1/62368-1; CAN/CSA C22.2 No. 60950-1/62368-1; EN 60950-1/62368-1; AS/NZS 60950.1, AS/NZS 62368.1; Class I Equipment
Electromagnetic compatibility certifications	47 CFR Part 15; CISPR 32 Class A; CNS 13438; EN 300 386; EN 55032 Class A; EN61000-3-2; EN61000-3-3; ICES-003 Class A; KN 32; TCVN 7189 Class A; V-3 Class A; CISPR 35; EN 300 386; EN 55035; KN 35; TCVN 7317
Ortam Koşulları	Reduction of Hazardous Substances (ROHS) 5
TAC support	Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9200 Series product. This support does not include solution or network-level support beyond the specific device under consideration.
Devices covered	Applies to Cisco Catalyst 9200 Series Switches.
Warranty duration	As long as the original customer owns the product.
End-of-life policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
Cisco.com access	Warranty allows guest access only to Cisco.com.
Transceiver Model	Standard
1 Gbps MA-SFP-1GB-SX MA-SFP-1GB-LX10	1000BASE-SX over OM1/2/3/4 up to distances of 1KM; 1000BASE-LX10 over OS1/0S2 up to distances of 10KM
Direct Attach MA-CBL-TA-1M MA-CBL-TA-3M	10GSFP+Cu Passive Twinax

Fiziksel Özellikler 10 satır

Kasa Boyutları Inches	1.73 x 17.5 x 11.3
Kasa Boyutları Centimeters	4.4 x 44.5 x 28.8
Chassis + FEP + Fan dimensions (HxWxD) Inches	1.73 x 17.5 x 12.9
Chassis + FEP + Fan dimensions (HxWxD) Centimeters	4.4 x 44.5 x 32.9
Boyutlar (h x w x d) W/ Default Power Supply	1.73 x 17.5 x 12.9”; (4.4 x 44.5 x 32.9cm)
Ağırlık w/ Default Power Supply	10.58 lb (4.80 kg)
Montaj Tipi	1U Rack Mount
Hot Swap Fans	No, 2x
Çalışma Sıcaklığı	-5°C to 45°C
Nem	5% to 90%

PoE 1 satır

PoE Bütçesi	370W

Sipariş Bilgileri 3 satır

Sipariş Kodları (PID)	C9200L-48PL-4G-A, C9200L-48PL-4G-E
Lisans Seçenekleri	-E: Network Essentials, -A: Network Advantage
Ürün Tanımı (Üretici)	Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch

Güç 7 satır

Power connectors	Internal power supply connector: The internal power supply is an auto-ranging unit.; It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Connectors and cabling	1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, Dense Wavelength-Division Multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single- mode or multimode fiber); 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM …
Default Power Supply	PWR-C5-600WAC
Hot Swap Power Supply	Yes, Dual
Available PoE W/ Primary PS	370W
PoE W/ Secondary PS	740W
Power Load (idle/max)	39.59 / 466.34 W

Arayüzler 5 satır

Arayüzler	48 1G ports partial PoE+
Fixed Uplinks (SFP+/SFP28)	4x 1G SFP
80G Hardware Stack Ports	2
Dedicated Management Interface	1
PoE Capabilities	30W PoE+

Performans 2 satır

Anahtarlama Kapasitesi with Stacking	184 Gbps
İletim Hızı Single / Stack	77.38 Mpps / 137 Mpps

Yazılım Özellikleri 7 satır

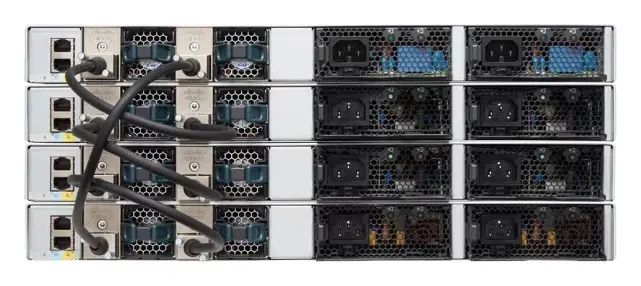

İstifleme (Stack)	Optional stacking kit allowing 8 switches in a stack with 80Gbps of stacking bandwidth; Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration; Faster convergence
Highlights	Layer-3; Four SFP+(10G/1G) fixed uplinks on 4X models; Two SFP28(25G/10G/1G) fixed uplinks on 2Y models; mGig support on XG models; 80G Dual Dedicated Hardware Stacking Ports; PoE+ (30W per port) & IEEE 802.3at; Redundant hotswappable power supplies
Yönetim	Managed via Cisco Meraki Dashboard; Zero-touch remote provisioning (no staging needed); Basic configuration capability via local management page; Detailed historical per-port and per-client usage statistics; Operating System, device, and hostname fingerprinting; Automatic firmware upgrades with scheduling control; SNMP and SYSLOG support for integration with other network management solutions
Remote Diagnostics	Email, SMS and Mobile push notification alerts; Ping, traceroute, cable testing, and link failure detection with alerting; Remote packet capture; Dynamic and interactive network discovery and topology; Combined event and configuration change logs with instant search
Ethernet Switching Capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping); 802.1Q VLAN and trunking support for up to 1024 active VLANs with STP disabled. This is reduced to 512 active VLANs when utilizing MST and 128 active VLANs when using PVST+.; Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST); STP Enhancements: BPDU guard, Root …
Katman	Static routing, OSPFv2; Multicast routing (ASM: PIM-SM); Warm Spare (VRRP) *; DHCP Server, DHCP Relay
Security	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; Corporate wide password policy enforcement; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; Single-Host/Multi-Domain/Multi-Host/Multi Authentication; Port security: Sticky MAC, MAC Allow listing *; DHCP snooping, detection …

Genel bakış

Cisco C9200L-48PL-4G kullanım alanları ve özellikleri.

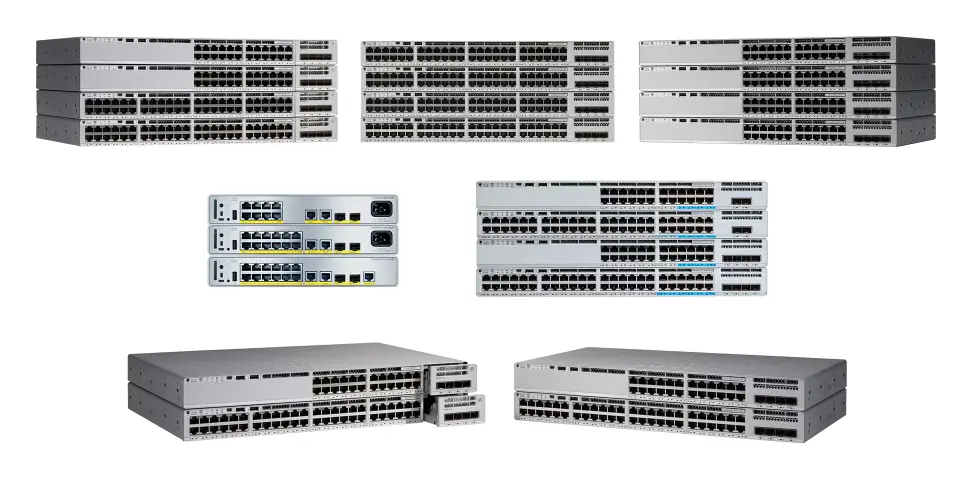

Cisco Catalyst 9200 serisi C9200L-48PL-4G, 48 adet Gigabit port, PoE+ desteği ve 370W PoE bütçesi, 4x1G SFP uplink sunan yönetilebilir katman 2/3 switch'tir.

Cisco Catalyst ™ 9200 Series Switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, the Catalyst 9200 Series switches offer simplicity without compromise —they are secure, always on, and IT simplified .

As foundational building blocks for the Cisco ® Networking Cloud, Catalyst 9200 Series Switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Öne Çıkan Özellikler

48 x Gigabit port
PoE+ destekli portlar, 370W PoE bütçesi
4x1G SFP uplink
Catalyst 9200L 48-port partial PoE+ 4x1G uplink Switch

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9200 Datasheet (EN)PDF · C9200L-48PL-4G Catalyst 9200 Datasheet (PDF)PDF · C9200L-48PL-4G Catalyst 9200L-M Datasheet (EN)PDF · C9200L-48PL-4G

Sık sorulanlar

C9200L-48PL-4G hakkında kısa yanıtlar.

C9200L-48PL-4G IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 370 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

C9200L-48PL-4G kaç portlu?

C9200L-48PL-4G 48 porta sahiptir.

C9200L-48PL-4G fiyatı ne kadar?

C9200L-48PL-4G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
