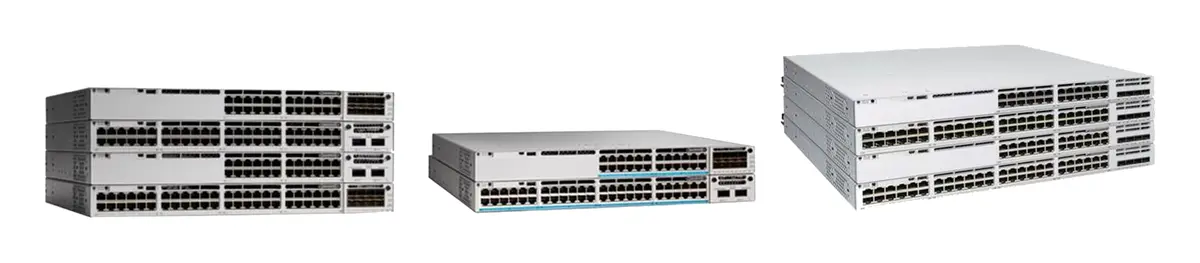

Cisco C9300L-48UXG-2Q 48 Port Multigigabit UPOE Yönetilebilir Switch

ModelC9300L-48UXG-2Q

Cisco C9300L-48UXG-2Q, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 675 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48 x Multigigabit port
UPOE destekli portlar, 675W PoE bütçesi
Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 44 satır

Birincil Güç Kaynağı	PWR-C1-1100WAC-P
Kullanılabilir PoE Gücü	675W
With 350W secondary PS	1025W
With 715W secondary PS	1390W
With 1100W secondary PS	1775W
İstifleme Desteği	StackWise-320
İstifleme Bant Genişliği	320 Gbps
Optional stacking hardware	C9300L-STACK-KIT Or C9300L-STACK-KIT2
Stack Üye Sayısı	8
Supported stack members	Stacks with other Catalyst 9300L and 9300LM models with same license level
MAC Adres Sayısı	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 Yönlendirme Girdisi	16,000
Multicast routing scale	8,000
QoS Girdisi	5,120
ACL Girdisi	5,120
Paket Tamponu	16-MB buffer for 24- or 48-port Gigabit Ethernet models; 32-MB buffer for 24- and 48-port Multigigabit
FNF entries	64,000 flows on 24-and 48-port Gigabit Ethernet models; 128,000 flows on 24-port Multigigabit
DRAM	8 GB
Flash Bellek	16 GB
VLAN ID Sayısı	4094
PVST Instances	300
STP virtual ports (port VLANs) for PVST	13,000
STP virtual ports (port VLANs) for MST	13,000
Total switched virtual interfaces (SVIs)	1000
Jumbo Frame	9198 bytes
Total routed ports per Catalyst 9300 Series stack	448
Anahtarlama Kapasitesi	472 Gbps
Anahtarlama Kapasitesi with stacking	792 Gbps
İletim Hızı	351.19 Mpps
İletim Hızı with stacking	589.28 Mpps
Ortalama Güç Tüketimi (W, ATIS)	157.94
Power connectors	Customers can power up the switch by plugging in a power cord to the power supply AC inlet at the back of the switch; The 350W, 715W, 1100W and 1900W (AC input version) power supplies are auto-ranging between 100 (115 V for 1100W and 1900W AC version) and 240 VAC. For 1900W AC version, when AC input is 115V, the maximum power is limited to 1500W
Güvenlik Sertifikaları	UL 60950-1; CAN/CSA-C222.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950.1; IEEE 802.3
Electromagnetic compatibility certifications	47 CFR Part 15; EN 300 386 V1.6.1; EN 55032 Class A; CISPR 32 Class A; EN61000-3-2; EN61000-3-3; ICES-003 Class A; TCVN 7189 Class A; V-3 Class A; CISPR 35; EN 300 386; EN 55035; TCVN 7317; V-2/2015.04; V-3/2015.04; CNS13438; KN32; KN35; Additional certifications for C9300L SKUs: QCVN 118:2018/BTTTT; VCCI-CISPR 32 Class A
Ortam Koşulları	Reduction of Hazardous Substances (ROHS) 5
TAC support	Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9300 Series product. This support does not include solution or network-level support beyond the specific device under consideration.
Connectors and cabling	1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling; 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; SFP transceivers: LC fiber connectors (single-mode or multimode fiber); SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber); QSFP+ transceivers: MPO and LC fiber …
Devices covered	Applies to Cisco Catalyst 9300 Series Switches.
Warranty duration	As long as the original customer owns the product.
End-of-life policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
Cisco.com access	Warranty allows guest access only to Cisco.com.

Güç 2 satır

Ağırlık (lb)	16.86
Ağırlık (kg)	7.65

PoE 1 satır

PoE Bütçesi	675W

Sipariş Bilgileri 3 satır

Sipariş Kodları (PID)	C9300L-48UXG-2Q-E, C9300L-48UXG-2Q-A
Lisans Seçenekleri	-E: Network Essentials, -A: Network Advantage
Ürün Tanımı (Üretici)	Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE

Genel bakış

Cisco C9300L-48UXG-2Q kullanım alanları ve özellikleri.

Cisco Catalyst 9300 serisi C9300L-48UXG-2Q, 48 adet Multigigabit port, UPOE desteği ve 675W PoE bütçesi sunan yönetilebilir katman 2/3 switch'tir.

Cisco Catalyst ™ 9300 Series Switches are Cisco’s lead stackable enterprise access switching platform and, as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce, big or small. With Catalyst 9300 Series switches, you choose how you want to manage your network – on-premises, virtual, or from the cloud.

Öne Çıkan Özellikler

48 x Multigigabit port
UPOE destekli portlar, 675W PoE bütçesi
Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9300 Datasheet (EN)PDF · C9300L-48UXG-2Q Catalyst 9300 Datasheet (PDF)PDF · C9300L-48UXG-2Q

Sık sorulanlar

C9300L-48UXG-2Q hakkında kısa yanıtlar.

C9300L-48UXG-2Q IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 675 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

C9300L-48UXG-2Q kaç portlu?

C9300L-48UXG-2Q 48 porta sahiptir.

C9300L-48UXG-2Q fiyatı ne kadar?

C9300L-48UXG-2Q için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
