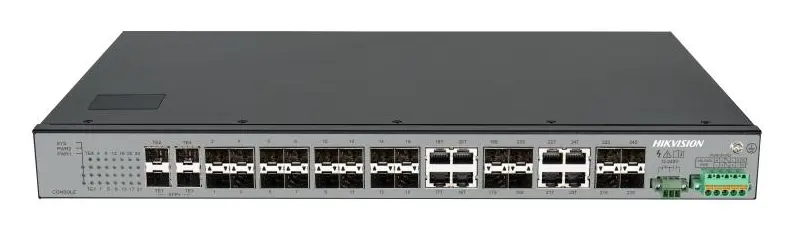

Hikvision DS-3T3728F Endüstriyel Switch

ModelDS-3T3728F

Hikvision DS-3T3728F gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Lightning protection level: 4KV
IP40 protection, industrial fanless thermal conduction.
Supports dual AC industrial power input.
Supports relay alarm, Phoenix terminal output.
Business ports, management ports, power input terminals, and relay terminals are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS.
Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value).
Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP).

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 10 satır

Net Ağırlık	3 kg (6.61 lb)
Brüt Ağırlık	3.3 kg (7.27 lb)
Boyutlar (G × Y × D)	440 mm × 44 mm × 280 mm (17.32" × 1.73" × 11.02")
Çalışma Sıcaklığı	-40°C to 75°C (-40°F to 167°F)
Depolama Sıcaklığı	-40°C to 85°C (-40°F to 185°F)
Çalışma Nemi	5% to 95% (no condensation)
Depolama Nemi	5% to 95% (no condensation)
Güç Kaynağı	Dual AC model: 100~240V
Maks. Güç Tüketimi	400 W
Gövde	Metal material, IP40

Ağ Parametreleri 4 satır

MAC Adres Tablosu	16 K
Portlar	16 × Gigabit fiber optical port,8 × Gigabit combo,4 × 10G fiber optical port
Anahtarlama Kapasitesi	Whole-Device Performance: 336 Gbps; Port Performance: 144 Gbps
Paket İletim Hızı	Whole-Device Performance: 108 Mpps; Port Performance: 108 Mpps

Yazılım Fonksiyonları 6 satır

QoS	Traffic classification of port/L2~4 protocol headers/VLAN/CoS/DSCP; CAR traffic control; 802.1P/DSCP priority mapping and remark; Multiple queuing algorithms such as SP, WRR or SP+WRR; Tail-Drop, WRED; Traffic supervision and traffic shaping; 8 queues per port; Rate-limit based on MAC/IP/COS/DSCP/TOS/EXP/any
VLAN	4K VLAN IDs, 4094 active VLAN, 64 SVI; GVRP; 1:1 and N:1 VLAN Mapping; QinQ and selective QinQ; Private VLAN; Voice-VLAN; Port-based VLAN; MAC-based VLAN; Protocol-based VLAN
Management Method	CLI: Console, Telnet, SSHv1/2; Web-GUI: HTTP, HTTPS/SSL; SNMP v1/v2c/v3, RMON, SNMP alarm/inform/traps; MIB-I, MIB-II; Upload and download of FTP/TFTP files; Debugging; Syslog for alarm/notification/command/debug; NTP-4; SPAN, RSPAN (1:1 and N:1 port mirror); LLDP, LLDP-MED; ZTP（Zero Touch Provisioning）; Optical DDM; Ethernet cable diagnosis
Reliability	Static and LACP link aggregation, 64 groups, ups to 8 ports in one group; Load-balance based src-MAC/src-IP/dst-MAC/dst-IP/src-port/dst-port and any combination; EAPS, ERPS(recovery time≤50ms); ERPS revertive and non-revertive operation mode; ISSU; Loopback-detection
Güvenlik	L2~L4 ingress/egress ACL (895 IPv4 FP, 384 IPv6 FP); Anti-DOS/IP spoofing/TCP/ping/SYN/ICMP flood attacks; CPU protection; Broadcast/multicast/unknown-unicast storm-control; Port isolation; Port Security, MAC address limitation, IP+MAC+port binding; DHCP Snooping, DHCP Option 82; DAI(Dynamic ARP Inspection); IPSG(IP Source Guard); IEEE 802.1x authentication; MAC-based authentication; AAA; Radius, TACACS+; Multiple user privileges
Multicast	IGMP v1/v2/v3(1024 groups); IGMP Snooping; IGMP Fast Leave; Multicast group policy and multicast number limit; Multicast filtering; Support for transparent passing of multicast traffic without IGMP snooping in certain port and VLAN

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Güvenlik	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Kimyasal Uyumluluk	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027)

Genel bakış

Hikvision DS-3T3728F kullanım alanları ve özellikleri.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Lightning protection level: 4KV
IP40 protection, industrial fanless thermal conduction.
Supports dual AC industrial power input.
Supports relay alarm, Phoenix terminal output.
Business ports, management ports, power input terminals, and relay terminals are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS.
Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value).
Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP).
Supports virtual stacking.
Supports to form a self-healing ring between any two ports, and supports multiple independent self-healing rings.
Provides Data Leakage Prevention (DLP), to quickly recover from network failures.
Supports simple network management protocol (SNMP) and Pallas cloud operating platform.
The mean time between failures (MTBF): more than 800,000 hours.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · DS-3T3728F

Sık sorulanlar

DS-3T3728F hakkında kısa yanıtlar.

DS-3T3728F fiyatı ne kadar?

DS-3T3728F için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
