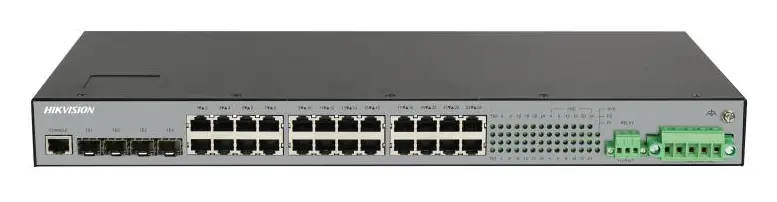

Hikvision DS-3T3728P PoE Endüstriyel Switch

ModelDS-3T3728P

Hikvision DS-3T3728P gigabit bir endüstriyel switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 370 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Lightning protection level: 4KV
IP40 protection, industrial fanless thermal conduction.
Supports dual DC wide-voltage industrial power input.
Supports relay alarm, Phoenix terminal output.
Business ports, management ports, power input terminals, and relay terminals are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS.
Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value).
Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP).

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 10 satır

Net Ağırlık	2.1 kg (4.6 lb)
Brüt Ağırlık	2.4 kg (5.3 lb)
Boyutlar (G × Y × D)	440 mm × 44 mm × 200 mm (17.32" × 1.73" × 7.87")
Çalışma Sıcaklığı	-40°C to 75°C (-40°F to 167°F)
Depolama Sıcaklığı	-40°C to 85°C (-40°F to 185°F)
Çalışma Nemi	5% to 95% (no condensation)
Depolama Nemi	5% to 95% (no condensation)
Güç Kaynağı	Dual DC; 48~54V
Maks. Güç Tüketimi	400 W
Gövde	Metal material, IP40

Ağ Parametreleri 4 satır

MAC Adres Tablosu	8 K
Portlar	24 × Gigabit PoE port,4 × 10G fiber optical port
Anahtarlama Kapasitesi	Whole-Device Performance: 336 Gbps; Port Performance: 128 Gbps
Paket İletim Hızı	Whole-Device Performance: 189 Mpps; Port Performance: 95 Mpps

Yazılım Fonksiyonları 6 satır

QoS	Traffic classification of port/L2~4 protocol headers/VLAN/CoS/DSCP; CAR traffic control; 802.1P/DSCP priority mapping and remark; Multiple queuing algorithms such as SP, WRR or SP+WRR; Tail-Drop, WRED; Traffic supervision and traffic shaping; 8 queues per port; Rate-limit based on MAC/IP/COS/DSCP/TOS/EXP/any
VLAN	4K VLAN IDs, 4094 active VLAN, 64 SVI; GVRP; 1:1 and N:1 VLAN Mapping; QinQ and selective QinQ; Private VLAN; Voice-VLAN; Port-based VLAN; MAC-based VLAN; Protocol-based VLAN
Management Method	CLI: Console, Telnet, SSHv1/2; Web-GUI: HTTP, HTTPS/SSL; SNMP v1/v2c/v3, RMON, SNMP alarm/inform/traps; MIB-I, MIB-II; Upload and download of FTP/TFTP files; Debugging; Syslog for alarm/notification/command/debug; NTP-4; SPAN, RSPAN (1:1 and N:1 port mirror); LLDP, LLDP-MED; ZTP（Zero Touch Provisioning）; Optical DDM; Ethernet cable diagnosis
Reliability	Static and LACP link aggregation, 64 groups, ups to 8 ports in one group; Load-balance based src-MAC/src-IP/dst-MAC/dst-IP/src-port/dst-port and any combination; EAPS, ERPS(recovery time≤50ms); ERPS revertive and non-revertive operation mode; ISSU; Loopback-detection
Güvenlik	L2~L4 ingress/egress ACL (895 IPv4 FP, 384 IPv6 FP); Anti-DOS/IP spoofing/TCP/ping/SYN/ICMP flood attacks; CPU protection; Broadcast/multicast/unknown-unicast storm-control; Port isolation; Port Security, MAC address limitation, IP+MAC+port binding; DHCP Snooping, DHCP Option 82; DAI(Dynamic ARP Inspection); IPSG(IP Source Guard); IEEE 802.1x authentication; MAC-based authentication; AAA; Radius, TACACS+; Multiple user privileges
Multicast	IGMP v1/v2/v3(1024 groups); IGMP Snooping; IGMP Fast Leave; Multicast group policy and multicast number limit; Multicast filtering; Support for transparent passing of multicast traffic without IGMP snooping in certain port and VLAN

PoE Güç Beslemesi 5 satır

PoE Standardı	IEEE 802.3af, IEEE 802.3at
PoE Güç Pinleri	4-pin power: 1/2(+), 3/6(-)
PoE Portu	PoE: Ports 1 to 24
Maks. Port Gücü	30 W
PoE Bütçesi	370 W

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Güvenlik	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Kimyasal Uyumluluk	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027)

Genel bakış

Hikvision DS-3T3728P kullanım alanları ve özellikleri.

Hikvision DS-3T3728P, 370 W PoE bütçesi sunan bir Endüstriyel Switch modelidir.

Industrial PoE L3 Switch

Lightning protection level: 4KV
IP40 protection, industrial fanless thermal conduction.
Supports dual DC wide-voltage industrial power input.
Supports relay alarm, Phoenix terminal output.
Business ports, management ports, power input terminals, and relay terminals are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS.
Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value).
Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP).
Supports virtual stacking.
Supports to form a self-healing ring between any two ports, and supports multiple independent self-healing rings.
Provides Data Leakage Prevention (DLP), to quickly recover from network failures.
Supports simple network management protocol (SNMP) and Pallas cloud operating platform.
The mean time between failures (MTBF): more than 800,000 hours.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Lightning protection level: 4KV
IP40 protection, industrial fanless thermal conduction.
Supports dual DC wide-voltage industrial power input.
Supports relay alarm, Phoenix terminal output.
Business ports, management ports, power input terminals, and relay terminals are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS.
Supports node self-healing time less than 5 milliseconds, and ring network self-healing time less than 50 milliseconds (typical value).
Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP).
Supports virtual stacking.
Supports to form a self-healing ring between any two ports, and supports multiple independent self-healing rings.
Provides Data Leakage Prevention (DLP), to quickly recover from network failures.
Supports simple network management protocol (SNMP) and Pallas cloud operating platform.
The mean time between failures (MTBF): more than 800,000 hours.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · DS-3T3728P

Sık sorulanlar

DS-3T3728P hakkında kısa yanıtlar.

DS-3T3728P IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 370 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

DS-3T3728P fiyatı ne kadar?

DS-3T3728P için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
