Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Sipariş Kodu (WW / Türkiye) | AP33-WW |
|---|---|
| Bölgesel Sipariş Kodları | AP33-US, AP33-WW |
Teknik Özellikler 28 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Standardı | 802.11ax (Wi-Fi 6) 5 GHz: 4x4:4 2.4 GHz: 2x2:2 |
| Wi-Fi Radyoları | Dedicated third radio for scanning |
| Anten Seçenekleri | Internal |
| Sanal BLE (vBLE) | Y |
| USB | Y |
| Garanti | Limited lifetime |
| Desteklenen Frekanslar | 2.4 GHz, 5 GHz |
| Wi-Fi Standardı | 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac |
| Combined highest supported data rates | 3.0 Gbps |
| 2.4 GHz | 2x2:2 802.11b/g/n/ac up to 400 Mbps data rate; 2x2:2 802.11ax up to 575 Mbps data rate |
| MIMO Çalışması | Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4x4 HE80 Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO-capable client devices simultaneously |
| Dedicated third radio | 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio |
| Internal antennas | Two 2.4 GHz omnidirectional antennas with 5 dBi peak gain Four 5 GHz omnidirectional antennas with 6 dBi peak gain |
| Bluetooth 5.0 | vBLE 16-element directional antenna array + omnidirectional Bluetooth antenna |
| Hüzme Yönlendirme (Beamforming) | Transmit Beamforming and Maximal Ratio Combining |
| Güç Seçenekleri | 802.3at PoE, 802.3bt PoE |
| Boyutlar | 202 x 202 x 44 mm (7.95 x 7.95 x 1.73 in) |
| Ağırlık | 0.98 kg (2.16 lbs) excluding mount and accessories |
| Çalışma Sıcaklığı | Internal antenna: 0° to 40°C |
| Çalışma Nemi | 10% to 90% maximum relative humidity, non-condensing |
| Çalışma İrtifası | 3,048 m (10,000 ft) |
| Mean time between failures (MTBF) | Indoor MTBF in hours is 846,2972 |
| USB | USB 2.0 support interface |
| Eth0 | 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD |
| Eth1 | 10/100/1000Base-T; RJ45 |
| Sıfırlama | Reset to the factory default settings |
| Göstergeler | One multicolor status LED |
Genel bakış

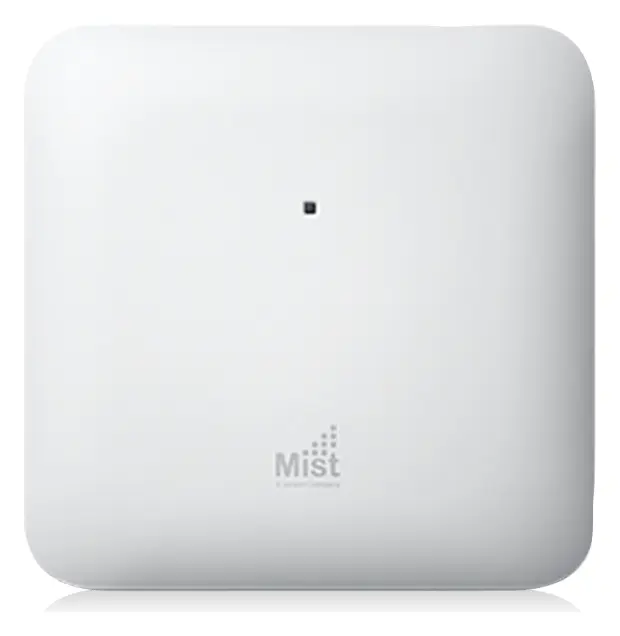

Juniper AP33 kullanım alanları ve özellikleri.
AP33 access point and dynamic virtual Bluetooth LE (vBLE) antenna array which automate network operations and boost Wi-Fi performance while providing dynamic network insights and location services.
The AP33 access point and dynamic virtual Bluetooth LE (vBLE) antenna array automate network operations and boost Wi-Fi performance, while providing dynamic network insights and location services. Through its vBLE technology and OpenAPIs, the AP33 enables the delivery of location-based services with one- to three-meter accuracy. It offers an aggregate data rate up to 3 Gbps with the 2.4 GHz and 5 GHz bands running concurrently.
The Juniper AP33 Wi-Fi 6 indoor access point delivers fast and reliable Wi-Fi experiences and location-based services with one- to threemeter accuracy for retail, warehouse, school, clinic, and home office environments. The AP33 offers an aggregate data rate up to 3 Gbps with the 2.4 GHz and 5 GHz bands running concurrently, and a patented virtual Bluetooth LE (vBLE) antenna array boosts Wi-Fi performance, while providing dynamic network insights and location services.
While wired and wireless networks are business critical, without the right architecture they can be harder to operate given the sheer number of mobile and IoT devices—not to mention the extensive variety of hardware, operating systems, and applications currently in use. Traditional architectures—highly manual and network-centric—lack the scale, flexibility, and end-to-end visibility required to support modern mobility requirements and the IT departments that manage them.
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP33 hakkında kısa yanıtlar.
AP33 fiyatı ne kadar?
Hızlı teklif
Formu doldurun, AP33 için fiyat ve teslim süresini iletelim.
