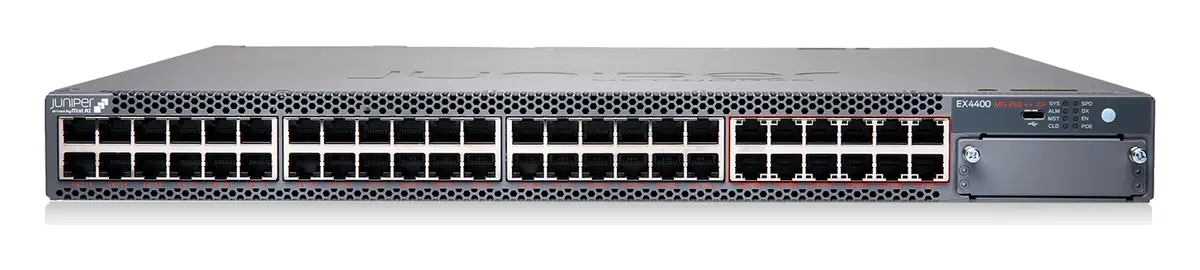

Juniper EX4400-48MXP 48 Port Multigigabit PoE++ PoE Switch

ModelEX4400-48MXP

Juniper EX4400-48MXP, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 1650 W.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN–Virtual Extensible LAN (EVPN-VXLAN) to the access layer
End-to-end encryption using Media Access Control Security (MACsec) AES256
IEEE 802.3bz Multigigabit
IEEE 802.3bt Power over Ethernet (PoE++)
Wi-Fi 7-ready switches, delivering up to 3600W of PoE power per switch with AC/DC power supply options
Standards-based microsegmentation using group-based policies (GBP)
Flow-based telemetry to monitor traffic flows for anomaly detection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Donanım Açıklaması	12x100M/1/2.5/5/10GbE + 36x100M/1/2.5GbE ports PoE++ power + 2000 W AC PS (provides 1650/3600W PoE++ power with single/dual PS) (DAC for Virtual Chassis ordered separately)

Model Özellikleri 24 satır

Erişim Portu Yapılandırması	48-port GbE (12x100M/1/2.5/5/10GbE + 36x100M/1/2.5GbE
PoE++ Port Sayısı	48
PoE++ Bütçesi (1 PSU / 2 PSU)	1650 W/ 724 W/ 3600 W 1748 W
10GbE Ports (max. with module)	12(16)
25GbE Ports (max. with module)	0(4)
100GbE/ 40GbE Ports (max with module)	2(3)
Güç Kaynağı Değeri	2000 W AC
Soğutma	AFO (frontto-back airflow)
PSU Type	AC
PSU (W)	2000
Idle 0% (W)	104.8
10% Traffic (W)	105
30% Traffic (W)	107.7
50% Traffic (W)	113.7
100% Max (W)	116.8
Idle 0% (W)	3740
10% Traffic (W)	3752
30% Traffic (W)	3758
50% Traffic (W)	3764
100% Max (W)	3776
Güç Kaynağı Değeri	2000W AC AFO
Acoustic Noise (1 PSU)	42.33
Acoustic Noise (2 PSU)	47.35
PoE Bütçesi	1650 W/ 3600 W 724 W/ 1748 W

Genel bakış

Juniper EX4400-48MXP kullanım alanları ve özellikleri.

EX4400 line of Ethernet access switches which offers secure, cloud-ready access for enterprise campus, branch, and data center networks for the AI era.

The EX4400 line of Ethernet access switches offers secure, cloud-ready access for enterprise campus, branch, and data center networks for the AI era. The platforms, which deliver up to 3600W of PoE power, boost network performance and visibility in support of ongoing security needs.

As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4400 is purpose-built for, and managed by, the cloud. The switch leverages Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, user experience-first approach to access layer switching.

The Juniper Networks EX4400 line of Ethernet switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4400 switches combine the simplicity of the cloud, the power of Mist AI, and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist Wired Assurance, you can effortlessly onboard, configure, and manage the EX4400 from the cloud. This simplifies operations, improves visibility, and optimizes experiences for connected devices and users.

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN–Virtual Extensible LAN (EVPN-VXLAN) to the access layer
End-to-end encryption using Media Access Control Security (MACsec) AES256
IEEE 802.3bz Multigigabit
IEEE 802.3bt Power over Ethernet (PoE++)
Wi-Fi 7-ready switches, delivering up to 3600W of PoE power per switch with AC/DC power supply options
Standards-based microsegmentation using group-based policies (GBP)
Flow-based telemetry to monitor traffic flows for anomaly detection
Precision Timing Protocol–Transparent clock
10 member Virtual Chassis support

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Tüm özellikler

Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
Ethernet VPN–Virtual Extensible LAN (EVPN-VXLAN) to the access layer
End-to-end encryption using Media Access Control Security (MACsec) AES256
IEEE 802.3bz Multigigabit
IEEE 802.3bt Power over Ethernet (PoE++)
Wi-Fi 7-ready switches, delivering up to 3600W of PoE power per switch with AC/DC power supply options
Standards-based microsegmentation using group-based policies (GBP)
Flow-based telemetry to monitor traffic flows for anomaly detection
Precision Timing Protocol–Transparent clock
10 member Virtual Chassis support

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - EX4400 line of Ethernet switches (PDF)PDF · EX4400-48MXP

Sık sorulanlar

EX4400-48MXP hakkında kısa yanıtlar.

EX4400-48MXP IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 1650 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

EX4400-48MXP kaç portlu?

EX4400-48MXP 48 porta sahiptir.

EX4400-48MXP fiyatı ne kadar?

EX4400-48MXP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
