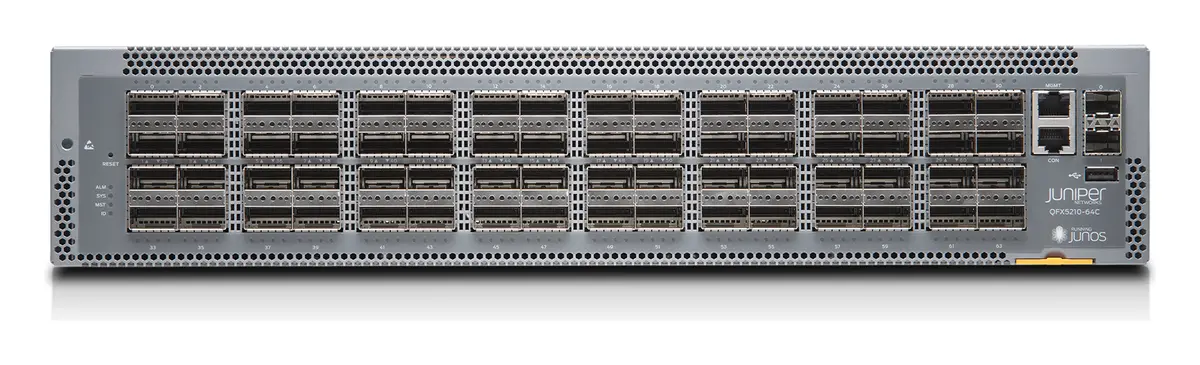

Juniper QFX5120-32C-DC-AFO 32 Port 100G QSFP28 DC Veri Merkezi Switch

Juniper QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. The QFX5120 switch is a versatile routing and switching platform addressing higher server access speed.

The QFX5120 switch delivers rich, low latency Layer 2/Layer 3 features and advanced EVPN-VXLAN capabilities, making it an ideal data center top-of-rack and distribution switch for campus enterprise deployments.

Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/ underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y and QFX5120-48YM, 10GbE/1GbE copper with 100GbE uplink ports on the QFX5120-48T, and 32 100GbE ports on the QFX5120-32C make the QFX5120 family ideal for spine-and-leaf network deployments.

The Juniper QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. The QFX5120 switch is a versatile routing and switching platform addressing higher server access speed and campus distribution use cases while offering high-density 1GbE/10GbE/25GbE and 100GbE uplinks for collapsed spine data center or campus distribution deployments

The QFX5120 switch includes four compact 1 U platforms—the QFX5120-48Y, the QFX5120-48YM, the QFX5120-48T, and the QFX5120-32C—that provide wire-speed packet performance, very low latency, and a rich set of Junos operating system features.

Using breakout cables, each of the eight 100GbE QSFP28 ports can be broken into four 25GbE SFP28 ports, while each 40GbE quad small form-factor pluggable plus (QSFP+) transceiver ports can be broken into four 10GbE small form-factor pluggable plus (SFP+) transceiver ports, increasing the total number of supported 25GbE and 10GbE ports per switch to 80.

• 32 100GbE (QSFP28) or 40GbE (QSFP+) uplink ports
• A 2.2 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
• Up to 3.2/6.4 Tbps (uni/bidirectional) L2 and L3 performance, with latency as low as 800 nanoseconds
• Support for VXLAN as an L2 or L3 gateway
• Advanced Junos OS features such as Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN), BGP add-path, L3 VPN, and MPLS
• Feature-rich automation capabilities with support for Python and zero-touch provisioning (ZTP)
• Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts
• Uninterrupted routing and forwarding, with features such as nonstop active routing (NSR) and nonstop bridging (NSB)
• Commit and rollback functionality that ensures error-free network configurations
• A powerful set of scripts for on-box problem detection, reporting, and resolution

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Tüm özellikler

• 32 100GbE (QSFP28) or 40GbE (QSFP+) uplink ports
• A 2.2 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
• Up to 3.2/6.4 Tbps (uni/bidirectional) L2 and L3 performance, with latency as low as 800 nanoseconds
• Support for VXLAN as an L2 or L3 gateway
• Advanced Junos OS features such as Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN), BGP add-path, L3 VPN, and MPLS
• Feature-rich automation capabilities with support for Python and zero-touch provisioning (ZTP)
• Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts
• Uninterrupted routing and forwarding, with features such as nonstop active routing (NSR) and nonstop bridging (NSB)
• Commit and rollback functionality that ensures error-free network configurations
• A powerful set of scripts for on-box problem detection, reporting, and resolution
