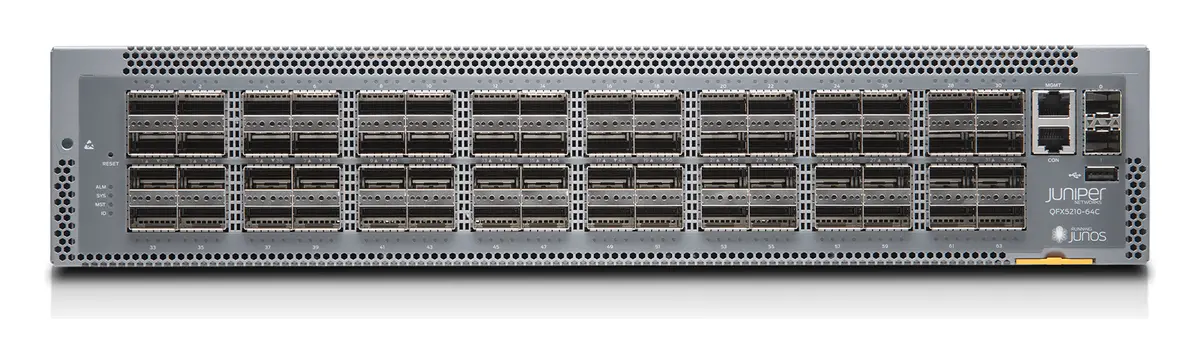

Juniper QFX5210-64C-D-AFI2 64 Port 100G QSFP28 DC Veri Merkezi Switch

ModelQFX5210-64C-D-AFI2

Juniper QFX5210-64C-D-AFI2 bir yönetilebilir switch'tir.

Port hızı: 10G uplink
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Donanım Açıklaması	QFX5210, 64 QSFP+/QSFP28 ports, reduced latency, redundant fans, 2 DC power supplies, back-to-front airflow, Flex Transform

Teknik Özellikler 24 satır

Çalışma Sıcaklığı	32°F to 104°F (0°C to 40°C)
Depolama Sıcaklığı	-40°F to 158°F (-40°C to 70°C)
Çalışma İrtifası	AFO models: Up to 6000 ft. (1828 m) AFI models: Sea level only
Relative humidity operating	5 to 90% (noncondensing)
Relative humidity nonoperating	5 to 95% (noncondensing)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
Maximum power draw* Typical power draw**	655 W (AC), 696 W (DC) 357 W (AC), 383 W (DC)
Description	Measurement
System throughout	Up to 12.8 Tbps (bidirectional)
Forwarding capacity	Up to 4.2 Bpps
QSFP+/QSFP28 ports	64 QSFP+ or QSFP28
25GbE (breakout cable, QSFP28)	128
10GbE (breakout cable, QSFP+)	128+2
Dimensions (W x H x D)	17.26 x 3.45 x 24.1 in. (43.84 x 8.77 x 61.2 cm) (depth including fan handle; otherwise 22.83 in. (58 cm)
Rack units	2U
Ağırlık	14.1 kg
Operating system	Junos OS
Switch chip	Broadcom Tomahawk2
CPU	Intel Broadwell-DE, 4 Core, 2.2 GHz, 16 GB DDR4, 100 GB SSD
Management interfaces	1 RJ-45 management port provided
Güç	Redundant (1+1) hot-pluggable 1100 W AC/DC power supplies; 110-240V single phase AC power; -36 to -72V DC power
Soğutma	Front-to-back and back-to-front cooling; Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw
Total packet buffer	42 MB
Garanti	HPE standard one-year warranty

Genel bakış

Juniper QFX5210-64C-D-AFI2 kullanım alanları ve özellikleri.

The Juniper Networks QFX5210 Switch is a next-generation, fixed-configuration spine/leaf switch that offers flexible, cost-effective, high-density 10GbE, 25GbE, 40GbE and 100GbE interfaces for IP fabric networks and providing deployment versatility.

The QFX5210 Switch is a flexible, 64-port, fixed-configuration switch designed for spine-and-leaf applications in next-generation IP fabric networks. Featuring linerate, high-density QSFP+/QSFP28 ports supporting 10GbE, 25GbE, 40GbE, and 100GbE connections, the QFX5210 offers an advanced Layer 2, Layer 3, and MPLS feature set. This allows network operators to build large, high-density IP fabrics that support network virtualization and intelligent traffic forwarding based on proven, Internet-scale technology, while enabling easy upgrades to 25GbE servers.

Network operators are increasingly deploying scale-out spine-and-leaf IP fabric architectures built with fixed-configuration switches to support growing east-west traffic in the data center. The Juniper Networks QFX5210 Switch is a next-generation, fixed-configuration spine/leaf switch that offers flexible, cost-effective, high-density 10GbE, 25GbE, 40GbE, and 100GbE interfaces for IP fabric networks, providing deployment versatility, investment protection, and future-proofing for today’s data centers. The QFX5210 Switch’s high port density also contributes to simplified Clos architectures, eliminating network tiers while reducing complexity and cost.

Like other HPE Juniper Networking QFX Switch Series, the QFX5210 supports advanced L2, L3, and MPLS features. For large public cloud providers—among the first to adopt 25GbE servers to meet explosive workload growth—the QFX5210 enables very large, dense, and fast IP fabrics based on proven Internet scale technology.

The QFX5210 runs the same reliable, high-performance Junos operating system used by network operators around the world.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - QFX5210 Switch data sheet (PDF)PDF · QFX5210-64C-D-AFI2
