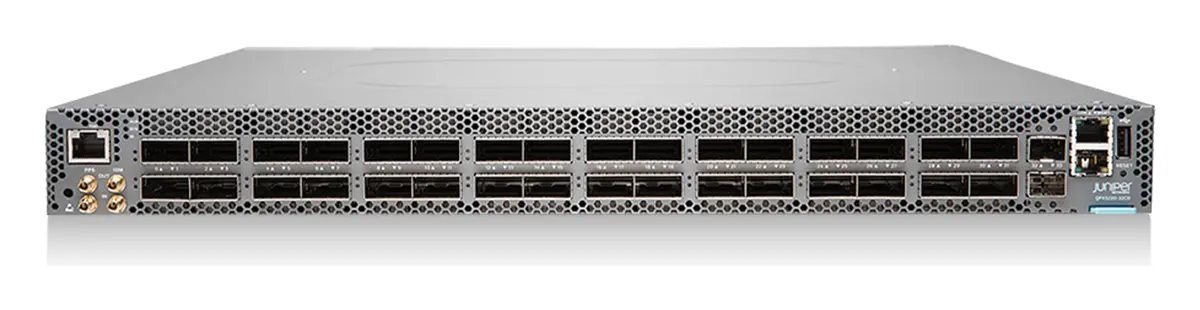

Juniper QFX5220-32CD-AFI 32 Port 400G QSFP-DD Veri Merkezi Switch

ModelQFX5220-32CD-AFI

Juniper QFX5220-32CD-AFI, 32 portlu bir yönetilebilir switch'tir. 2 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: 10G uplink
PoE: PoE yok
Port sayısı: 32 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Advanced Junos Evolved features : The QFX5220 switch supports features such as BGP add-path, MPLS, L3 VPN, RoCEv2, and multicast capabilities.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Donanım Açıklaması	QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/ QSFP28 ports, redundant fans, 2 AC power supplies, back-to-front airflow

Teknik Özellikler 23 satır

System throughput	Up to 25.6 Tbps (bidirectional)
Forwarding capacity	8 billion packets per second
Port density	32 ports of QSFP56-DD 400GbE
SFP+/SFP28	2 SFP+ transceiver ports for in-band network management
Dimensions (W x H x D)	17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)
Rack units	1U
Ağırlık	24.5 lb (11.11 kg) with 2 power supplies and 6 fans installed
Operating system	Junos OS Evolved
Switch chip	Broadcom Tomahawk3
CPU	Intel
Güç	Redundant (1+1) hot-pluggable 1600W AC/ DC power supplies (2n); -115-240V single phase AC power; -48 to -60V DC power
Soğutma	Ports-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling; Redundant (5+1) hot-pluggable fan modules with variable speed to minimize power draw
Total packet buffer	64 MB
Recommended software version	Junos OS Evolved 22.2R3-Sx and later
Garanti	Juniper standard one-year warranty
Çalışma Sıcaklığı	32° to 104°F (0° to 40°C)
Depolama Sıcaklığı	-40° through 158°F
Çalışma İrtifası	Up to 6000 feet (1828.8 meters)
Relative humidity operating	5 to 90% (noncondensing)
Relative humidity nonoperating	5 to 95% (noncondensing)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
Maximum power draw*	220–240V: 834W (AC), 860W (DC)
Typical power draw**	220–240V: 310W (AC), 328W (DC)

Genel bakış

Juniper QFX5220-32CD-AFI kullanım alanları ve özellikleri.

The Juniper QFX5220 Switch is a next-generation, fixed-configuration spine-and-leaf switch. It offers flexible, cost-effective, high-density interfaces for server and intra-fabric connectivity.

Cloud providers and network operators are increasingly deploying scale-out, spine-and-leaf IP fabric architectures built on fixed-configuration switches to support growing east-west traffic in the data center.

The QFX5220 Switch is optimally suited for these highspeed, high-density, spine-and-leaf IP fabrics. Supporting 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE connections and offering an advanced L2, L3, and MPLS feature set, the QFX5220 enables cloud service providers and network operators to build large, next-generation IP fabrics that support network virtualization and intelligent traffic forwarding based on proven, Internet-scale technology.

The Juniper QFX5220 Switch is a next-generation, fixed-configuration spine-and-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers.

QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven internet-scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.

Two QFX5220 models are available, supporting different configurations and use cases. Delivering 25.6 Tbps (bidirectional) of bandwidth, both models are optimally designed for spine-and-leaf deployments in enterprise, HPC, service provider, and cloud data centers.

Advanced Junos Evolved features : The QFX5220 switch supports features such as BGP add-path, MPLS, L3 VPN, RoCEv2, and multicast capabilities.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - QFX5220 Switch (PDF)PDF · QFX5220-32CD-AFI

Sık sorulanlar

QFX5220-32CD-AFI hakkında kısa yanıtlar.

QFX5220-32CD-AFI kaç portlu?

QFX5220-32CD-AFI 32 porta sahiptir ve 2 adet SFP uplink portu bulunur.

QFX5220-32CD-AFI fiyatı ne kadar?

QFX5220-32CD-AFI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
