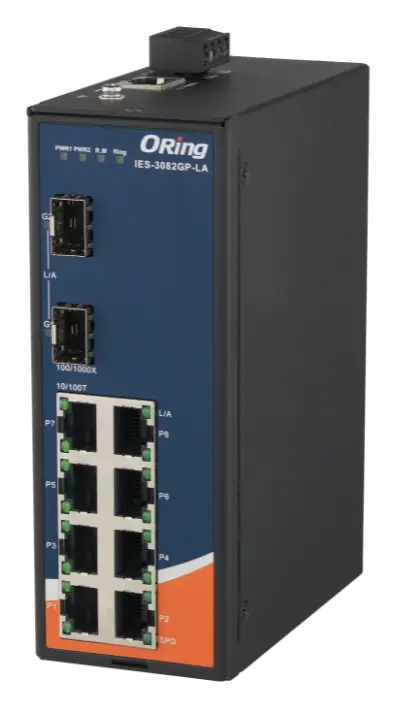

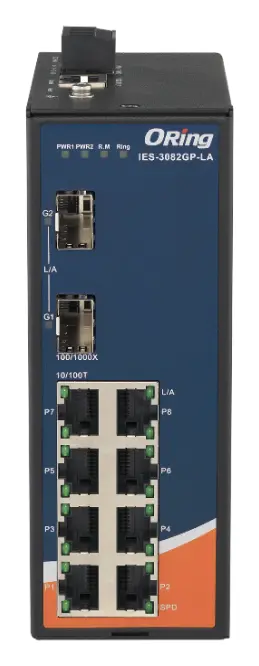

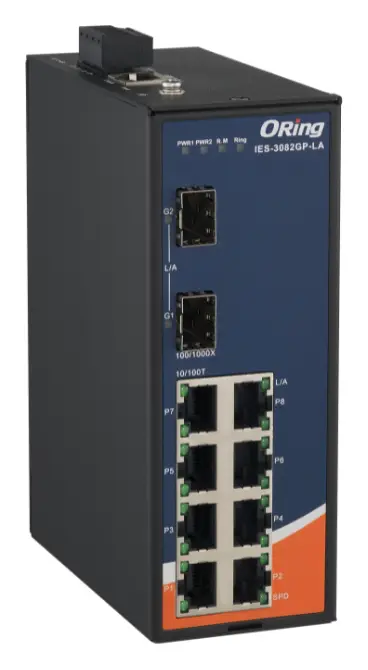

ORing IES-3082GP-LA 10 Port Ethernet switch ve 8x 10/100Base-T(X) ve 2x 100/1000Base-FX, SFP socket Endüstriyel Yönetilebilir Switch

ORing IES-3082GP-LA – Industrial 10-port managed Ethernet switch with 8x 10/100Base-T(X) and 2x 100/1000Base-FX, SFP socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 6 Watts
• Konnektör: Terminal Block
• Yedekli Güç Girişi: Dual 12~48V DC
• Kasa: IP-30
• MAC Adres Tablosu: 8K
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 Years

Temel Özellikler (Features)

• O-Ring redundancy with recovery time < 30 ms for rings of up to 250 devices
• O-Chain allows multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
• Supports IPV6 new Internet Protocol version
• Support Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for easy of bandwidth management
• Event notification through Syslog server/client, Email and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design

Genel Bakış (Description)

The ORing IES-3082GP-LA is a 10-port industrial managed Ethernet switch featuring 8 x 10/100Base-T(X) RJ45 ports and 2 x 100/1000Base-X SFP slots for flexible copper and fiber connectivity. Designed for mission-critical industrial networks, it supports multiple Ethernet redundancy protocols, including O-Ring (recovery time < 30 ms for rings of up to 250 devices), O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP, helping minimize network downtime and maintain reliable communication. O-Chain enables the interconnection of multiple redundant rings, including rings using different redundancy protocols, providing greater network flexibility and scalability. The switch also supports advanced network management and security features, including VLAN, SNMP, HTTPS/SSH, ACL, and IEEE 802.1X authentication. With dual redundant 12–48VDC power inputs, an IP30-rated enclosure, and a wide operating temperature range of -40°C to 75°C, the IES-3082GP-LA is well suited for industrial automation and other demanding networking environments.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• O-Ring redundancy with recovery time < 30 ms for rings of up to 250 devices
• O-Chain allows multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
• Supports IPV6 new Internet Protocol version
• Support Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for easy of bandwidth management
• Event notification through Syslog server/client, Email and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design
• DIN-Rail mounting enabled
• Web-based, Telnet and Console (CLI) configuration
