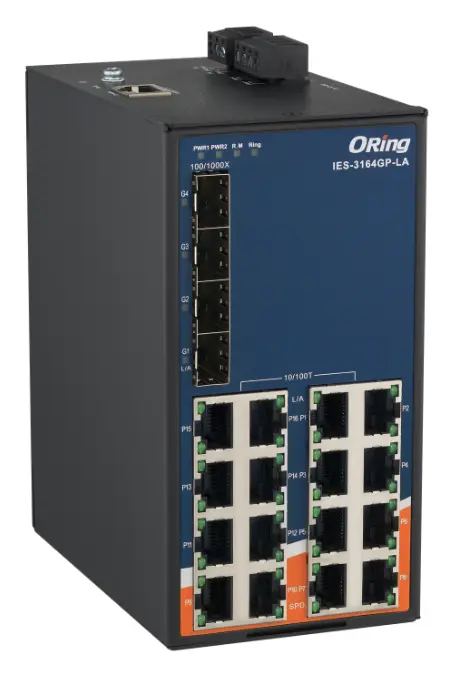

ORing IES-3164GP-LA 20 Port Ethernet switch ve 16x10/100Base-T(X) ve 4x100/1000Base-(F)X, SFP socket Endüstriyel Yönetilebilir Switch — görsel 3

1 / 3

Endüstriyel Switch IES-3164 Serisi

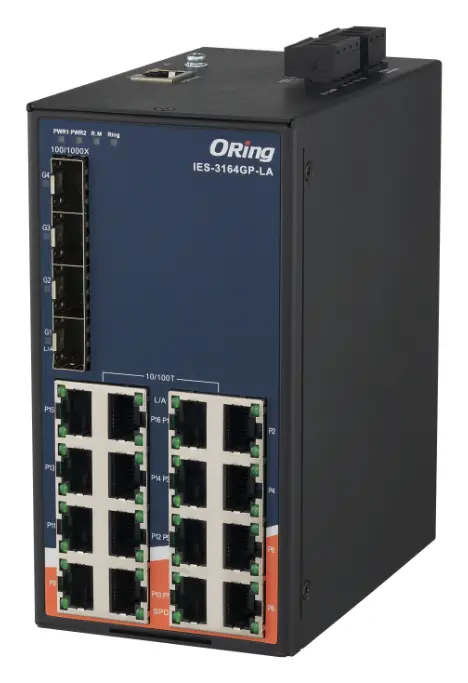

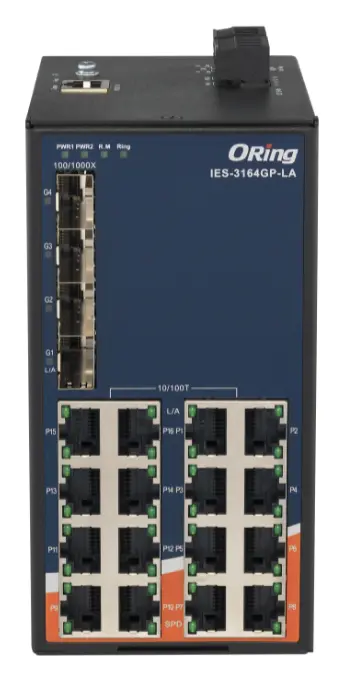

ORing IES-3164GP-LA 20 Port Ethernet switch ve 16x10/100Base-T(X) ve 4x100/1000Base-(F)X, SFP socket Endüstriyel Yönetilebilir Switch

Q: IES-3164GP-LA kaç portlu?

IES-3164GP-LA 20 porta sahiptir.

Q: IES-3164GP-LA fiyatı ne kadar?

IES-3164GP-LA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelIES-3164GP-LA

ORing IES-3164GP-LA, 20 portlu 10/100 Mbps bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Fast Ethernet
PoE: PoE yok
Port sayısı: 20 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
O-Chain allows multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
Supports IPV6 new Internet Protocol version
Supports Auto Negotiation Speed
Support Modbus TCP protocol
Provided HTTPS/SSH protocol to enhance network security

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 4 satır

10/100Base-T(X) ports in RJ45	16
Reset	1
100/1000Base-X with SFP port	4
RS-232 Serial Console port	1

LED Göstergeler 5 satır

Güç Göstergesi	Green: Power LED x 2
Ring Master Indicator (R.M.)	Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green: Indicates that the system operating in O-Ring mode; Green Blinking: Indicates that the Ring is broken.
10/100Base-T(X) RJ45 Port Indicator	Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.; Green for Speed indicator: On for 100Mbps, Off for 10Mbps
100/1000Base-X SFP Port Indicator	Green for Link/Act indicator: On for link-up, Off for link-down, Blinking for act.

Güç 5 satır

Güç Tüketimi (Tipik)	10 Watts
Konnektör	Terminal Block
Yedekli Güç Girişi	Dual 12~48V DC
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present (not working)

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	76 (W) x 125 (D) x 145 (H)mm; 2.992 (W) x 4.921 (D) x 5.709 (H) inch
Ağırlık (g)	1073 g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol); IEEE 802.1D for STP (Spanning Tree Protocol); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Adres Tablosu	8K
Packet buffer Size	4.1 Mbits
Priority Queues	4
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 10 µs; Switching bandwidth: 11.2Gbps; Max. Number of Available VLANs: 4096; VLAN ID Range: VID 1 to 4095; IGMP multicast groups: 1024; Port rate limiting: User Define
Security Features	HTTPS/SSH enhance network security; TACACS+ centralized authentication, authorization, and accounting for network devices; RADIUS client forwards user authentication requests to a RADIUS server; Access Management controls access to organizational resources; IP source guard prevents IP spoofing; Port based network access control (802.1x); Port security limit control the number of MAC addresses on a port; VLAN (802.1Q) to segregate and secure network traffic; SNMP V1/V2c/V3 manages and collects da
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging and GVRP/GARP supported; MVR (Multicast VLAN Registration) supported; Q-in-Q supported; IGMP v2/v3 Snooping for multicast filtering; Port configuration, status, statistics, monitoring, security; SNTP client synchronizes the system clock with an NTP server; NTP server/client for synchronizes the system clock;
Network Redundancy	O-Ring; O-Chain; MRP; MSTP/RSTP/STP
Warning / Monitoring System	Relay Output; Syslog server / client to record and view events; Include SMTP for event warning notification via email; Event selection support

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output (NC/NO) to carry capacity of 1A at 24VDC

Reset Function 1 satır

Reset Butonu	Less than 5 sec: System reboot; More than the 5 sec: Factory default

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85℃ (-40 to 185℉)
Çalışma Sıcaklığı	-40 to 75℃ (-40 to 167℉)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 Years

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55035, EN 55032), FCC Part 15 B
EMI	EN 55032, EN 61000-6-4, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	EN 55035 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
Darbe Dayanımı	IEC60068-2-27
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6
Güvenlik Standardı	EN 62368-1

Genel bakış

ORing IES-3164GP-LA kullanım alanları ve özellikleri.

ORing IES-3164GP-LA – Industrial 20-port managed Ethernet switch with 16x10/100Base-T(X) and 4x100/1000Base-(F)X, SFP socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 10 Watts
Konnektör: Terminal Block
Yedekli Güç Girişi: Dual 12~48V DC
Kasa: IP-30
MAC Adres Tablosu: 8K
Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
Garanti: 5 Years

Temel Özellikler (Features)

World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
O-Chain allows multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
Supports IPV6 new Internet Protocol version
Supports Auto Negotiation Speed
Support Modbus TCP protocol
Provided HTTPS/SSH protocol to enhance network security
IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Supports ACL, TACACS+, and 802.1x User Authentication for security
Port Trunking for easy of bandwidth management
Event notification through Syslog server/client, Email, and SNMP trap
RMON for traffic monitoring
Support LLDP protocol

Genel Bakış (Description)

IES-3164GP-LA is a managed Redundant Ring Ethernet switch with 16x10/100Base-T(X) ports and 4x100/1000Base-X, SFP socket. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network. O-Chain allows multiple redundant network rings of different redundancy protocols to join and function as a larger, more robust compound network topology. O-Chain provides ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. In addition, the wide operating temperature range from -40 to 75 °C can satisfy most operating environments. Therefore, the switch is one of the most reliable choices for highly-managed Ethernet applications.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
O-Chain allows multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
MSTP/RSTP/STP (IEEE 802.1s/w/D) supports
Supports IPV6 new Internet Protocol version
Supports Auto Negotiation Speed
Support Modbus TCP protocol
Provided HTTPS/SSH protocol to enhance network security
IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Supports ACL, TACACS+, and 802.1x User Authentication for security
Port Trunking for easy of bandwidth management
Event notification through Syslog server/client, Email, and SNMP trap
RMON for traffic monitoring
Support LLDP protocol
Rigid IP-30 housing design
DIN-Rail mounting enabled
Web-based, Telnet and Console (CLI) configuration

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IES-3164GP-LA Hızlı Kurulum Kılavuzu (EN)PDF · IES-3164GP-LA Kullanım Kılavuzu (EN)PDF · IES-3164GP-LA

Sık sorulanlar

IES-3164GP-LA hakkında kısa yanıtlar.

IES-3164GP-LA kaç portlu?

IES-3164GP-LA 20 porta sahiptir.

IES-3164GP-LA fiyatı ne kadar?

IES-3164GP-LA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
