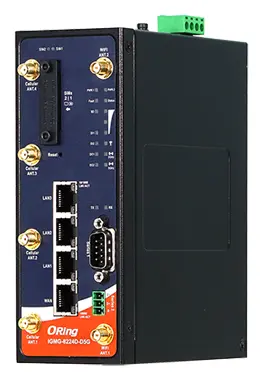

ORing IGMG-8224D-D5G WIFI5 ve 5G Cellular Router Gateway ve Serial port ve 4x10/100/1000Base-T(X) Endüstriyel IoT Gateway

ModelIGMG-8224D-D5G

ORing IGMG-8224D-D5G endüstriyel IoT gateway: High Speed Air Connectivity: WLAN interface support up to 867Mbps link spee d with concurrent dual band operating ., Provide 4 port 10/100/1000Base-T(X) port with RJ45 connector, 5G/LTE Modem dial up included with 2 sim card slots, Highly Security Capability:.

Port sayısı: 4 port
Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High Speed Air Connectivity: WLAN interface support up to 867Mbps link spee d with concurrent dual band operating .
Provide 4 port 10/100/1000Base-T(X) port with RJ45 connector
5G/LTE Modem dial up included with 2 sim card slots
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Secured Management by HTTPs
Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem/Dial Up
IP table to prevent access from unauthorized IP address
Support VPN for secured network connection (Open VPN , IPSEC, VPN)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 1 satır

10/100/1000Base-T(X) ports in RJ45	3 LAN +1 WAN

Hücresel Arayüz 4 satır

SIM card slot	2
Cellular Standard	HSDPA / HSUPA / LTE/ LTE+/ 5G
Band options	5G NR :; n1,n2,n3,n5,n7,n8,n12,n20,n28,n41,n66,n71,n77,n78,n79; LTE :; FDD : B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; TDD :; B34/B38/B39/B40/B41/B42/B46/B48; WCDMA :; B1/B2/B3/B4/B5/B6/B8/B9/B19
Anten Konnektörü	4 x SMA Female

LED Göstergeler 6 satır

Ethernet Port Indicator	8 x LEDs,; LNK: Green for port Link/AcT for 1000Base-T(X); LNK: Green for port Link/AcT for 10/100Base-T(X)
SIM Indicator	2 x LEDs; Green On: in active and dial up
Status Indicator	Green Blinking: System Booting, Green Solid On:System Ready
Güç Göstergesi	2 x LEDs, PWR1(2) / Ready:; Green On: Power is on and functioning Normal
Serial TX/RX Indicator	Green : Receiving data; Green : Transmitting data
Fault Indicator (Fault)	Green On: When fault event occurs

Güç 4 satır

Güç Tüketimi (Tipik)	13.9w
Yedekli Güç Girişi	Dual DC inputs. 12-48VDC on 4-pin terminal block
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present

Kablosuz (WLAN) Arayüz 7 satır

Anten Konnektörü	2 x Reverse SMA Female
Modülasyon	802.11a: OFDM; 802.11b: CCK, DQPSK, DBPSK; 802.11g: OFDM; 802.11n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Frekans Bandı	America / FCC:; 2.412~2.462 GHz (11 channels ); 5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels ); Europe CE / ETSI:; 2.412~2.472 GHz ( 13 channels ); 5.180~5.240 GHz ( 4 channels )
İletim Hızı	802.11b: 1/2/5.5/11 Mbps; 802.11a/g: 6/9/12/18/24/36/48/54 Mbps; 802.11n: UP to 300 Mbps; 802.11ac: up to 867Mbps
Yayın Gücü	IEEE 802.11a: 21dBm ± 2dBm@54Mbps; IEEE 802.11b: 23dBm ± 2dBm@11Mbps; IEEE 802.11g: 20dBm ± 2dBm@54Mbps; IEEE 802.11gn HT20: 18dBm ± 2dBm @MCS7; IEEE 802.11gn HT40: 18dBm ± 2dBm @MCS7; IEEE 802.11an HT20: 20dBm ± 2dBm @MCS7; IEEE 802.11an HT40: 20dBm ± 2dBm @MCS7; IEEE 802.11ac VHT80: 20dBm ± 2dBm @MCS9
Alıcı Hassasiyeti	IEEE 802.11a : -75dBm ± 2dBm@54Mbps; IEEE 802.11b : -90dBm ± 2dBm@11Mbps; IEEE 802.11g : -75dBm ± 2dBm@54Mbps; IEEE 802.11gn HT20:-72dBm ± 2dBm@MCS7; IEEE 802.11gn HT40:-70dBm ± 2dBm@MCS7; IEEE 802.11an HT20:-72dBm ± 2dBm@MCS7; IEEE 802.11an HT40:-69dBm ± 2dBm@MCS7; IEEE 802.11ac VHT80:-60dBm ± 2dBm@MCS9
Şifreleme Güvenliği	WEP: (64-bit ,128-bit key supported); WPA/WPA2 :802.11i(WEP and AES encryption); WPA-PSK (256-bit key pre-shared key supported); 802.1X Authentication supported; TKIP encryption

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	60(W) x 125(D) x 158(H)
Ağırlık (g)	1100

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-30 to 70°C (-22 to 158°F)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 6 satır

EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Darbe Dayanımı	IEC60068-2-27
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6
Güvenlik Standardı	EN60950-1

Genel bakış

ORing IGMG-8224D-D5G kullanım alanları ve özellikleri.

ORing IGMG-8224D-D5G – Industrial WIFI5 and 5G Cellular Router Gateway with Serial port and 4x10/100/1000Base-T(X). Bu ürün ORing Industrial Networking'in Endüstriyel IoT Gateway ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 13.9w
Yedekli Güç Girişi: Dual DC inputs. 12-48VDC on 4-pin terminal block
Frekans Bandı: America / FCC:; 2.412~2.462 GHz (11 channels ); 5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels ); Europe CE / ETSI:; 2.412~2.472 GHz ( 13 channels ); 5.180~5.240 GHz ( 4 channels )
İletim Hızı: 802.11b: 1/2/5.5/11 Mbps; 802.11a/g: 6/9/12/18/24/36/48/54 Mbps; 802.11n: UP to 300 Mbps; 802.11ac: up to 867Mbps
Kasa: IP-30
Çalışma Sıcaklığı: -30 to 70°C (-22 to 158°F)
Garanti: 5 years

Temel Özellikler (Features)

High Speed Air Connectivity: WLAN interface support up to 867Mbps link spee d with concurrent dual band operating .
Provide 4 port 10/100/1000Base-T(X) port with RJ45 connector
5G/LTE Modem dial up included with 2 sim card slots
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Secured Management by HTTPs
Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem/Dial Up
IP table to prevent access from unauthorized IP address
Support VPN for secured network connection (Open VPN , IPSEC, VPN)
Support NAT Setting (Virtual Server, Port Forward)
Support Modbus TCP/RTU industrial protocols
Wireless connecting status monitoring
Versatile modes & event alarm by e-mail
12 ~ 48Vdc dual power input
Support Multiple-SSID to 4 SSID
Provide 2 Digital Input and 2 Digital Output

Genel Bakış (Description)

IGMG-8224D-D5G is a reliable WIFI5 WLAN VPN router with 4 ports 10/100/1000Base-T(X) router where ETH1 to ETH3 for LAN and ETH4 for WAN. It supports 802.1X and MAC filter for security control. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Modem dial up. In the mode of Modem dial up, it support 3G/3.5G/LTE/LTE-A/5G modem by internal cellular module. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modems. Therefore, IGMG-8224D-D5G is one of the best solution for applications of gateway communication.

Tüm özellikler

High Speed Air Connectivity: WLAN interface support up to 867Mbps link spee d with concurrent dual band operating .
Provide 4 port 10/100/1000Base-T(X) port with RJ45 connector
5G/LTE Modem dial up included with 2 sim card slots
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Secured Management by HTTPs
Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE, Modem/Dial Up
IP table to prevent access from unauthorized IP address
Support VPN for secured network connection (Open VPN , IPSEC, VPN)
Support NAT Setting (Virtual Server, Port Forward)
Support Modbus TCP/RTU industrial protocols
Wireless connecting status monitoring
Versatile modes & event alarm by e-mail
12 ~ 48Vdc dual power input
Support Multiple-SSID to 4 SSID
Provide 2 Digital Input and 2 Digital Output
Provide full function RS232/422/485 with DB9 connector
Support Micro SD card
Rigid IP-30 housing design
DIN-Rail and Wall-mount enabled

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IGMG-8224D-D5G Kullanım Kılavuzu (EN)PDF · IGMG-8224D-D5G
