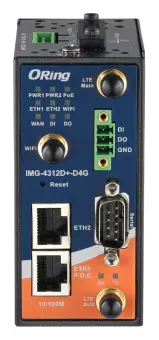

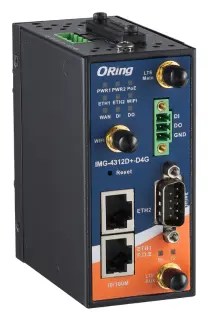

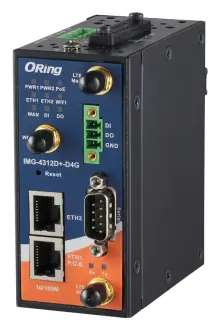

ORing IMG-4312D+-D4G FirstNet approved LTE Gateway ve WIFI4, 2FE ve 1 RS-232/422/485 port Endüstriyel IoT Gateway

ModelIMG-4312D+-D4G

ORing IMG-4312D+-D4G endüstriyel IoT gateway: FirstNet approved device and AT&T/Verizon certified, Support LTE Cat. 4 with up to 150Mbps downlink and 50Mbps uplink data rates, Support dual mini SIM card slot, Support 2x 10/100Base-T(x) Ethernet ports, Support 1x RS-232/422/485,1x DI and 1x DO.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

FirstNet approved device and AT&T/Verizon certified
Support LTE Cat. 4 with up to 150Mbps downlink and 50Mbps uplink data rates
Support dual mini SIM card slot
Support 2x 10/100Base-T(x) Ethernet ports
Support 1x RS-232/422/485,1x DI and 1x DO
IEEE 802.11 b/g/n WLAN Wi-Fi interface with up to 150Mbps bandwidth
Support ORing Open Gateway (protocol converter) software feature for user-friendly IIoT deployment
Support ORing Cloud Wizard feature for easy and quick step-by-step device provisioning

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 2 satır

10/100Base-T(X) ports in RJ45	2
PoE PD Portu	P.O.E.Present at ETH1; Power Device (IEEE 802.3af):; IEEE 802.3af compliant input interface; Over load & short circuit protection; Isolation Voltage: 1000 VDC min.; Isolation Resistance : 108 ohms min

Hücresel Arayüz 4 satır

SIM card slot	2
Cellular Standard	GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA /LTE
Band options	America (US grade); LTE:; FDD:1900(B2)/1700(B4)/850(B5)/700(B12)/700(B13)/700(B14)/1700(B66)/600(B71) MHz; UMTS/HSDPA/HSUPA/HSPA+:; 1900/1700/850 MHz; Europe (EU grade); FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz; TDD:TDD:2600(B38)/2300(B40)/2500(B41) MHz; 2100(B1)/900(B8) MHz; GSM/GPRS/EDGE:; 900/850 MHz; Taiwan (TW grade); FDD:2100(B1)/1900(B2)/1800(B3)/1700(B4)/850(B5)/2600(B7)/900(B8)/700(B28) MHz; TDD:2300(B40); UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:; 2100(B1)/1900(B2)/850(B5)/900(B8) MH
Anten Konnektörü	2 x SMA Female

LED Göstergeler 4 satır

WIFI(WLAN) Indicator	1 x LED, Green: WIFI Link /ACT
Güç Göstergesi	3 x LEDs, PWR 1(2)(PoE) / Ready:; Green On: Power is on
Serial TX/RX Indicator	Red: Serial port is receiving data; Green: Serial port is transmitting data
10/100Base-T(X) RJ45 Port Indicator	2 x LEDs, Green for port Link/Act at 100Mbps.

Güç 4 satır

Güç Tüketimi (Tipik)	5.5W
Yedekli Güç Girişi	Dual DC inputs. 12-48VDC on 4-pin terminal block
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present on terminal block

Kablosuz (WLAN) Arayüz 7 satır

Anten Konnektörü	1 x RP-SMA Female
Modülasyon	IEEE802.11b: CCK/DQPSK/DBPSK; IEEE802.11g: OFDM; IEEE802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Frekans Bandı	America / FCC:; 2.412~2.462 GHz (11 channels ); Europe CE / ETSI:; 2.412~2.472 GHz ( 13 channels )
İletim Hızı	802.11b: 1/2/5.5/11 Mbps; 802.11g: 6/9/12/18/24/36/48/54 Mbps; 802.11n(40MHz): UP to 150 Mbps
Yayın Gücü	802.11b: 19dBm ± 1.5dBm; 802.11g: 17dBm ± 1.5dBm; 802.11n(2.4G@20MHz): 16dBm ± 1.5dBm; 802.11n(2.4G@40MHz): 14dBm ± 1.5dBm
Alıcı Hassasiyeti	802.11b: -90dBm ± 2dBm@1Mbps; 802.11g: -72dBm ± 2dBm@54Mbps; 802.11n(2.4G@40MHz,MCS7): -68dBm ± 2dBm
Şifreleme Güvenliği	WEP: (64-bit ,128-bit key supported); WPA/WPA2 :802.11i(WEP and AES encryption); WPA-PSK (256-bit key pre-shared key supported); 802.1X Authentication supported; TKIP encryption

Protocol Support 1 satır

Protokol	ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, DDNS, PPPoE

Seri Arayüz 8 satır

Konnektör	DB9 x 1
Çalışma Modu	RS-232/422/485
Serial Baud Rate	110 bps to 115.2 Kbps
Veri Bitleri	7, 8
Parite	odd, even, none, mark, space
Stop Bits	1, 1.5, 2
Akış Kontrolü	XON/XOFF, RTS/CTS, DTR/DSR
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	45(W)x80.6(D)x95(H) mm (1.77 x 3.17 x 3.74 inch)
Ağırlık (g)	395

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-25 to 70°C (-13 to 158°F)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 9 satır

RF	EN 301 489-1/-17(2.4G), EN 300 328(2.4G), EN 301 511(2G), EN 301 908-1(3G/4G), FCC Par 15C(2.4G)
EMC	CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B Class A
EMS	EN 55024, (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP))
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	UL61010-1/-2-201, ATEX, C1D2
Diğer	353,679 hrs

Genel bakış

ORing IMG-4312D+-D4G kullanım alanları ve özellikleri.

ORing IMG-4312D+-D4G – Industrial FirstNet approved LTE Gateway with WIFI4, 2FE and 1 RS-232/422/485 port. Bu ürün ORing Industrial Networking'in Endüstriyel IoT Gateway ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 5.5W
Yedekli Güç Girişi: Dual DC inputs. 12-48VDC on 4-pin terminal block
Frekans Bandı: America / FCC:; 2.412~2.462 GHz (11 channels ); Europe CE / ETSI:; 2.412~2.472 GHz ( 13 channels )
İletim Hızı: 802.11b: 1/2/5.5/11 Mbps; 802.11g: 6/9/12/18/24/36/48/54 Mbps; 802.11n(40MHz): UP to 150 Mbps
Konnektör: DB9 x 1
Kasa: IP-30
Çalışma Sıcaklığı: -25 to 70°C (-13 to 158°F)
Garanti: 5 years

Temel Özellikler (Features)

FirstNet approved device and AT&T/Verizon certified
Support LTE Cat. 4 with up to 150Mbps downlink and 50Mbps uplink data rates
Support dual mini SIM card slot
Support 2x 10/100Base-T(x) Ethernet ports
Support 1x RS-232/422/485,1x DI and 1x DO
IEEE 802.11 b/g/n WLAN Wi-Fi interface with up to 150Mbps bandwidth
Support ORing Open Gateway (protocol converter) software feature for user-friendly IIoT deployment
Support ORing Cloud Wizard feature for easy and quick step-by-step device provisioning
Support Modbus TCP/RTU industrial protocols
Support MQTT/MQTT Sparkplug B/CoAP/LWM2M Cloud protocols
Support VPN for secured network connection (OpenVPN, PPTP, IPSec)
Support NAT (Network Address Translation) and Firewall features
Event warning by System logs, SNMP Trap, E-mail and SMS
Redundant 12~48VDC power input
PoE power input available with 1kV isolation

Genel Bakış (Description)

IMG-4312D+-D4G LTE cellular M2M Gateway is an innovative product for Cloud, Internet of Things and Industry 4.0 applications. It is a perfect choice for remote secured data collection from the factory floor (PLCs, machines, networking devices) and environmental sensors (temperature, humidity, noise, pollution, vibration etc.) as well as for serving control commands coming from Cloud Platforms for changing end-devices status. Connectivity : IMG-4312D+-D4G Gateway uses LTE module which supports 2G/3.5G/4G technologies. The user has a possibility to choose between three different communication interfaces to connect his end-device: Fast Ethernet ports, Serial port and Wireless Wi-Fi connectivity with 150Mbps link speed. With Modbus RTU and TCP protocols the Gateway can easily communicate with any compatible device to poll and write all kind of data types. IMG-4312D-D4Gcan also transfer data to 5 host PCs simultaneously for backup purposes. In addition the gateway supports all common VPN protocols (OpenVPN, PPTP, IPSec) and can establish secured tunneling connection between clients and servers. Cloud Platforms connection : IMG-4312D+-D4G supports all common lightweight Cloud communication protocols: MQTT including Sparkplug B version for payload and topic definition, CoAP (Constrained Application Protocol) and LWM2M (Lightweight M2M). It is fully compatible with ORing PaaS Cloud but it also makes the Gateway a universal and flexible solution for any existing Cloud Platform integration. Thanks to ORing branded Open Gateway software feature it simplifies to maximum IoT solution deployment. Connecting big variety of end-devices, very often with different communication interfaces, to different Cloud Platforms has never been so easy. Open Gateway protocol converter from a very simple and user-friendly web-based configuration interface turns the gateway into a transparent man in the middle between Modbus field devices and MQTT/CoAP/LWM2M servers. The user has a possibility to define and shape the data format before it is sent to the Cloud for secured storing, analysis and Dashboard or HMI SCADA visualization.

Tüm özellikler

FirstNet approved device and AT&T/Verizon certified
Support LTE Cat. 4 with up to 150Mbps downlink and 50Mbps uplink data rates
Support dual mini SIM card slot
Support 2x 10/100Base-T(x) Ethernet ports
Support 1x RS-232/422/485,1x DI and 1x DO
IEEE 802.11 b/g/n WLAN Wi-Fi interface with up to 150Mbps bandwidth
Support ORing Open Gateway (protocol converter) software feature for user-friendly IIoT deployment
Support ORing Cloud Wizard feature for easy and quick step-by-step device provisioning
Support Modbus TCP/RTU industrial protocols
Support MQTT/MQTT Sparkplug B/CoAP/LWM2M Cloud protocols
Support VPN for secured network connection (OpenVPN, PPTP, IPSec)
Support NAT (Network Address Translation) and Firewall features
Event warning by System logs, SNMP Trap, E-mail and SMS
Redundant 12~48VDC power input
PoE power input available with 1kV isolation
DIN Rail and Wall mounting types
Support OpenWRT SDK for project customization
