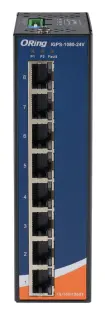

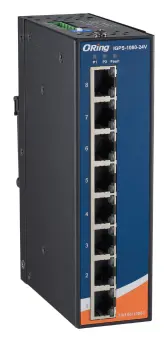

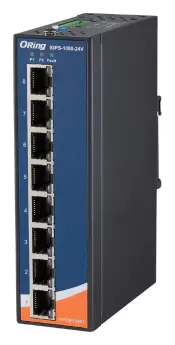

ORing IGPS-1080-24V 8GE PoE Ethernet Switch, IEEE 802.3af/at, 24VDC Endüstriyel Yönetilemez PoE Switch

ORing IGPS-1080-24V – 8GE PoE Unmanaged Ethernet Switch, IEEE 802.3af/at, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilemez PoE Switch ailesinde yer alır.

Temel Özellikler (Features)

• 8x 10/100/1000Base-T(X) PoE ports
• IEEE 802.3at compliant PoE and total power budget is 120 Watts
• Supports dual 12-57VDC power inputs
• Supports Jumbo frame up to 9KBytes
• Supports auto-negotiation and auto-MDI/MDI-X
• Supports store and forward transmission
• Supports flow control
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled

Genel Bakış (Description)

IGPS-1080-24V is the unmanaged gigabit PoE switch with P.S.E. function and relay output of 24VDC at 1A. IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1080-24V supports wide-range 12~57VDC power inputs and generates 50VDC P.S.E. power output per port. IGPS-1080-24V PoE switch has 8x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• 8x 10/100/1000Base-T(X) PoE ports
• IEEE 802.3at compliant PoE and total power budget is 120 Watts
• Supports dual 12-57VDC power inputs
• Supports Jumbo frame up to 9KBytes
• Supports auto-negotiation and auto-MDI/MDI-X
• Supports store and forward transmission
• Supports flow control
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
