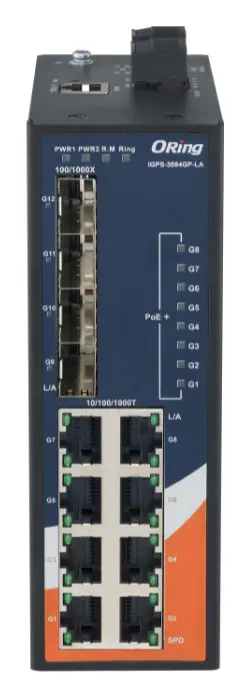

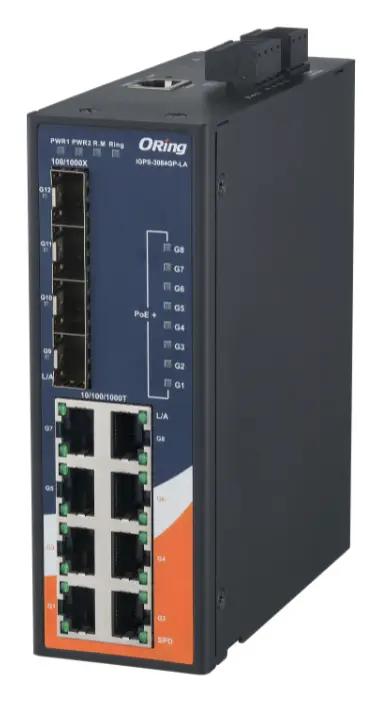

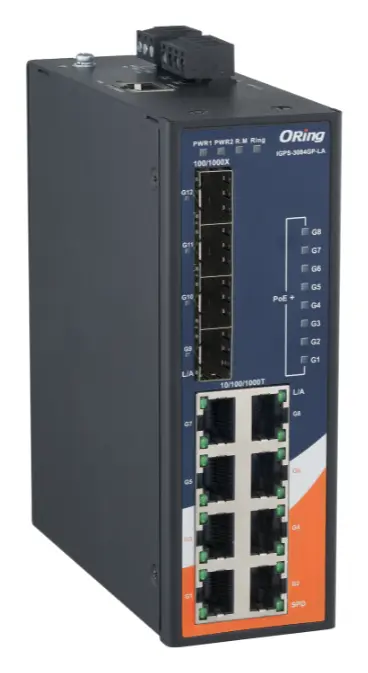

ORing IGPS-3084GP-LA 12 Port Gigabit PoE Ethernet switch ve 8x10/100/1000Base-T(X) P.S.E. ve 4x100/1000Base-(F)X Endüstriyel Yönetilebilir PoE Switch

ORing IGPS-3084GP-LA – Industrial 12-port managed Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x100/1000Base-(F)X, SFP socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 20 Watts (PoE output power not included)
• Konnektör: Terminal Block
• Yedekli Güç Girişi: Dual 48~57V DC
• Toplam PoE Çıkış Gücü: 150 Watts
• Kasa: IP-30
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 10K bytes
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 Years

Temel Özellikler (Features)

• Supports O-Ring, O-Chain, RSTP/MSTP and IEC 62439-2 MRP for Ethernet redundancy
• Supports IPv6 new Internet Protocol version
• 8 ports P.S.E. fully compliant with IEEE802.3at
• Provide a PoE power delay function, users can define a delay time for the PoE power supply
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for ease of bandwidth management
• Event notification through Syslog server/client, Email, and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design
• DIN-Rail mounting enabled

Genel Bakış (Description)

The IGPS-3084GP-LA is a managed redundant ring Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) ports featuring 30Watts PoE (P.S.E.) function and 4x100/1000Base-(F)X SFP sockets. It fully supports Ethernet redundancy protocols, including O-Ring (recovery time < 30ms over 250 units of connection), O-Chain, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D), ensuring fast recovery technology to protect your mission-critical applications from network interruptions or temporary malfunctions. Another O-Chain is the revolutionary network redundancy technology that provides additional network redundancy topology for any backbone network. O-Chain allows multiple redundant network rings with different redundancy protocols to join and function as a larger, more robust compound network topology. O-Chain enhances ease-of-use while maximizing fault-recovery speed, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. The IGPS-3084GP-LA also supports Power over Ethernet, a system for transmitting electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-3084GP-LA switch has 8x10/100/1000Base-T(X) 30 Watts P.S.E. (Power Sourcing Equipment) ports. P.S.E. devices such as switches or hubs provide power in a PoE setup. The switch supports the DDM (Digital Diagnostic Monitoring) function, which instantly monitors the status of electronic voltage, current, and temperature. Additionally, its wide operating temperature range from -40 to 75 °C ensures suitability for various operating environments. Therefore, these switches are among the most reliable choices for highly-managed and Fiber Ethernet applications with PoE functionality.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Supports O-Ring, O-Chain, RSTP/MSTP and IEC 62439-2 MRP for Ethernet redundancy
• Supports IPv6 new Internet Protocol version
• 8 ports P.S.E. fully compliant with IEEE802.3at
• Provide a PoE power delay function, users can define a delay time for the PoE power supply
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for ease of bandwidth management
• Event notification through Syslog server/client, Email, and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design
• DIN-Rail mounting enabled
• Web-based, Telnet, and Console (CLI) configuration
