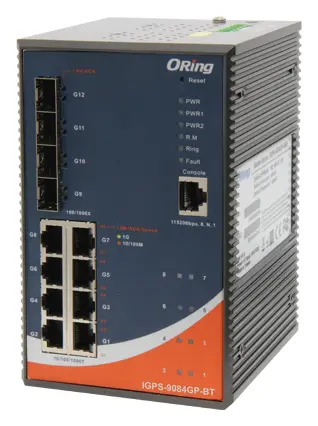

ORing IGPS-9084GP-BT 12 Port Gigabit Yüksek Güçlü PoE Ethernet switch ve 8x10/100/1000Base-T(X) bt P.S.E. Port Endüstriyel Yönetilebilir PoE Switch

ORing IGPS-9084GP-BT – Industrial 12-port managed Gigabit High power PoE Ethernet switch with 8x10/100/1000Base-T(X) bt P.S.E. ports and 4x100/1000Base-X, SFP socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir PoE Switch ailesinde yer alır.

Temel Özellikler (Features)

• Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• Open-Ring support the other vendor’s ring technology in open architecture
• O-Chain allow multiple redundant network rings
• Support IEC 62439-2 MRP (Media Redundancy Protocol)
• P.S.E. fully compliant with IEEE802.3af/at/bt standard, provide up to 90Watts per port and total power budget is 240W
• Support PoE scheduled configuration and PoE auto-ping check function
• Support IEEE 1588v2 clock synchronization
• Support IPV6 new internet protocol version
• Support Modbus TCP and Ethernet/IP protocol
• Support IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Support SMTP client
• Support IP-based bandwidth management
• Support backup unit device DBU-01 to quickly configuration backup/restor

Genel Bakış (Description)

IGPS-9084GP-BT is managed redundant ring PoE Ethernet switch with 8x10/100/1000Base-T(X) bt P.S.E. ports and 4x100/1000Base-X SFP ports. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9084GP-BT also support Power over Ethernet, a system to transmit electrical power up to 90 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-9084GP-BT switch has 8x10/100/1000Base-T(X) 90Watts P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 oC to 75 oC. IGPS-9084GP-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• Open-Ring support the other vendor’s ring technology in open architecture
• O-Chain allow multiple redundant network rings
• Support IEC 62439-2 MRP (Media Redundancy Protocol)
• P.S.E. fully compliant with IEEE802.3af/at/bt standard, provide up to 90Watts per port and total power budget is 240W
• Support PoE scheduled configuration and PoE auto-ping check function
• Support IEEE 1588v2 clock synchronization
• Support IPV6 new internet protocol version
• Support Modbus TCP and Ethernet/IP protocol
• Support IEEE 802.3az Energy-Efficient Ethernet technology
• Provided HTTPS/SSH protocol to enhance network security
• Support SMTP client
• Support IP-based bandwidth management
• Support backup unit device DBU-01 to quickly configuration backup/restor
