ORing

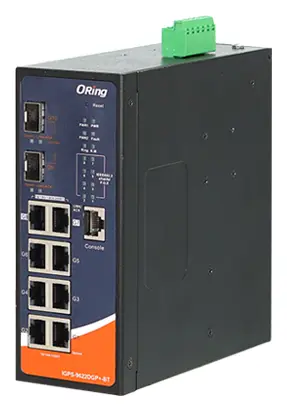

ORing IGPS-9622DGP+-BT 10 Port L2 802.3bt PoE Switch, 6x 1G/PoE + 2x 2.5G/PoE + 2x 1G/10GBase-X SFP+ socket Endüstriyel Yönetilebilir PoE Switch
Endüstriyel Switch IGPS-9622 Serisi

ORing IGPS-9622DGP+-BT 10 Port L2 802.3bt PoE Switch, 6x 1G/PoE + 2x 2.5G/PoE + 2x 1G/10GBase-X SFP+ socket Endüstriyel Yönetilebilir PoE Switch

ModelIGPS-9622DGP+-BT

ORing IGPS-9622DGP+-BT, 10 portlu gigabit bir endüstriyel switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı
Gigabit
PoE
PoE
Port sayısı
10 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
  • Support 2-ports multi-G RJ45 up to 2.5Gbps uplink
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 4 satır
10/100/1000/2500Base-T(X) ports with P.S.E. in RJ452
10/100/1000Base-T(X) ports with P.S.E. in RJ456
1000/10G Base-X with SFP/SFP+ port2
RS-232 Serial Console portSupport
LED Göstergeler 6 satır
Power Indicator (Power)Green: Power LED x 3
Ring Master Indicator (R.M.)Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)Green: Indicates that the system operating in O-Ring mode; Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault)Amber: Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicatorLink/ACT: Light with Green for Link indicator. Blinking with Green for act (data transmitted); Speed: Light with Green for 1000Mbps, Light with Amber for 100Mbps, Off for 10Mbps
PoE IndicatorGreen: Indicates that PoE port has PoE power output
Güç 6 satır
Güç Tüketimi (Tipik)23.8 Watts without any PoE power output
PoE Output PowerUp to 90 watts (port 1~8)
Yedekli Güç GirişiDual 50-57 VDC
Toplam PoE Çıkış Gücü240 Watts (Max.)
Aşırı Akım KorumasıPresent
Ters Polarite KorumasıNot present, switch isn't working without any damaged
Fiziksel Özellikler 3 satır
KasaIP-30
Dimensions (mm)65 x 160.2 x 153.6 mm
Ağırlık (g)1377g
Teknoloji 11 satır
Ethernet StandartlarıIEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T; IEEE 802.3z for 1000Base-X; IEEE 802.3bz for 2.5GBase-T; IEEE 802.3ae for 10Gigabit Ethernet; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol); IEEE 802.1p for CoS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1d for STP (Spanning Tree Protocol); IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1
MAC Adres Tablosu16K
Packet buffer Size8Mbits
Priority Queues8
Anahtarlama YöntemiStore-and-Forward
Switch ÖzellikleriSwitching latency: 7 us; Switching bandwidth: 62Gbps; Throughput (packet per second): 46.13Mpps@64Bytes packet; Max. Number of Available VLANs: 4096 (ID Range: VID 1 to 4095); Port rate limiting: User Define
Jumbo FrameUp to 10K Bytes
Security FeaturesDevice Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); VLAN (802.1Q) to segregate and secure network traffic; RADIUS/TACACS+ centralized password management; SNMPv3 encrypted authentication and access security; HTTPS / SSH / SSL enhance network security; DOS/DDOS auto prevention; IP Source Guard; Per port MAC limit control; Access Control List; DHCP Snooping
Software FeaturesRedundant Ring (O-Ring) with recovery time less than 30ms; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging, MAC-based VLAN, IP Subnet-based VLAN; Private VLAN; IGMP Snooping v1/v2/v3, up to 512 groups; MLD Snooping v1/v2, up to 128 groups; IP-based bandwidth management; Application-based QoS management; Port configuration, status, statistics, monitoring, security, descriptionnDHCP Server/Client/Relay; SMTP Client; Modbus TCP; NTP server/client; IEC61850
Network RedundancyO-Ring; O-Chain; MSTP (RSTP/STP compatible)
Warning / Monitoring SystemSyslog, system log, cable diagnostic, SFP/SFP+ transceiver DDM
Arıza Kontağı 1 satır
Röle ÇıkışıRelay output to carry capacity of 1A at 24VDC (pin 3 and 4 for 6-pin removeable terminal block)
Reset Function 1 satır
Reset Butonuless than 5 sec: System reboot, greater than 5 sec: Factory default
Ortam Koşulları 3 satır
Depolama Sıcaklığı-40 to 85 degrees C (-40 to 185 degrees F)
Çalışma Sıcaklığı-40 to 75 degrees C (-40 to 167 degrees F) @ 1G SFP transceiver installation; -40 to 60 degrees C (-40 to 140 degrees F) @ 10G SFP+ transceiver installation
Çalışma Nemi5% to 95% Non-condensing
Garanti 1 satır
Garanti5 years
Sertifikalar ve Onaylar 7 satır
EMCCE EMC (EN 55024, EN 55032), EN50121-4 (compliant), FCC Part 15 B
EMIEN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMSIEC/EN 61000-4-2 (ESD),IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT),IEC/EN 61000-4-5(Surge),IEC/EN 61000-4-6 (CS) IEC/EN 61000-4-8(PFMF)
Darbe DayanımıIEC 60068-2-27
Serbest DüşmeIEC 60068-2-31
TitreşimIEC 60068-2-6
MTBF713020.68hours @ 25 degrees C

Genel bakış

ORing IGPS-9622DGP+-BT kullanım alanları ve özellikleri.

ORing IGPS-9622DGP+-BT – Industrial 10-port Layer 2 802.3bt PoE Switch, 6x 1G/PoE + 2x 2.5G/PoE + 2x 1G/10GBase-X SFP+ socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

  • Güç Tüketimi (Tipik): 23.8 Watts without any PoE power output
  • Yedekli Güç Girişi: Dual 50-57 VDC
  • Toplam PoE Çıkış Gücü: 240 Watts (Max.)
  • Kasa: IP-30
  • MAC Adres Tablosu: 16K
  • Jumbo Frame: Up to 10K Bytes
  • Çalışma Sıcaklığı: -40 to 75 degrees C (-40 to 167 degrees F) @ 1G SFP transceiver installation; -40 to 60 degrees C (-40 to 140 degrees F) @ 10G SFP+ transceiver installation
  • Garanti: 5 years
  • MTBF: 713020.68hours @ 25 degrees C

Temel Özellikler (Features)

  • Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
  • Support 2-ports multi-G RJ45 up to 2.5Gbps uplink
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+, RADIUS and 802.1X User Authentication for security
  • Support 10K Bytes Jumbo Frame

Genel Bakış (Description)

IGPS-9622DGP+-BT is Layer-2 managed Gigabit Ethernet switch with 6x10/100/1000Base-T(X) P.S.E ports and 2x100/1G/ 2.5G Base-T(X) P.S.E ports plus 2x1G/10GBase-X SFP+ slots. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IGPS-9622DGP+-BT also support Power over Ethernet, a system to transmit electrical power up to 90 watts with total 240 watts PoE budget, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each IGPS-9622DGP+-BT switch has 6x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. and 2x100/1G/ 2.5G Base-T(X) P.S.E ports are a device (switch or hub for instance) that will provide power in a PoE connection. And support wide operating temperature from -40 degrees C to 75 degrees C. IGPS-9622DGP+-BT can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

  • Support 8-ports IEEE 802.3af/at/bt compliant PoE and total power budget is 240W with maximum 90W per port
  • Support 2-ports multi-G RJ45 up to 2.5Gbps uplink
  • Support O-Ring (recovery time < 30ms) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
  • O-Chain allow multiple redundant network rings
  • Support Modbus TCP protocol
  • Provided HTTPS/SSH protocol to enhance network security
  • Support SMTP client and NTP server protocol
  • Support IP-based bandwidth management
  • Support application-based QoS management
  • Support Device Binding security function
  • Support DOS/DDOS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Support ACL, TACACS+, RADIUS and 802.1X User Authentication for security
  • Support 10K Bytes Jumbo Frame
  • Syslog/SNMP Trap notification for warning of unexpected event
  • Support DBU-01 backup unit device to quickly backup/restore configuration
  • Web-based, SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Rigid IP-30 housing design
  • DIN-Rail and wall mounting enabled

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IGPS-9622DGP+-BT Hızlı Kurulum Kılavuzu (EN)PDF · IGPS-9622DGP+-BT

Sık sorulanlar

IGPS-9622DGP+-BT hakkında kısa yanıtlar.

IGPS-9622DGP+-BT IP kamera beslemek için uygun mu?
Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.
IGPS-9622DGP+-BT kaç portlu?
IGPS-9622DGP+-BT 10 porta sahiptir.
IGPS-9622DGP+-BT fiyatı ne kadar?
IGPS-9622DGP+-BT için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
