Endüstriyel Switch IGPS-P9084 Serisi

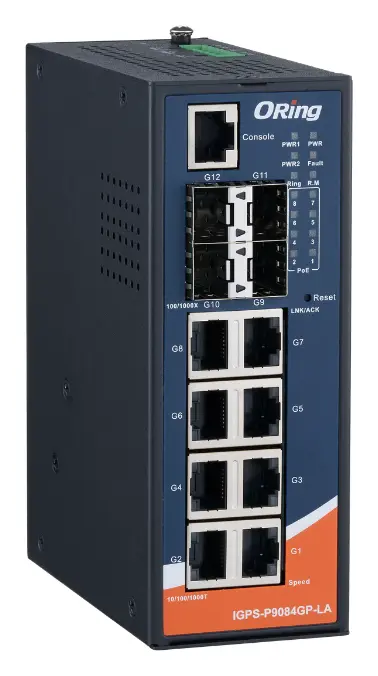

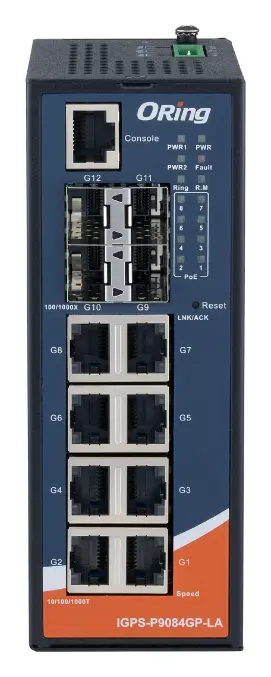

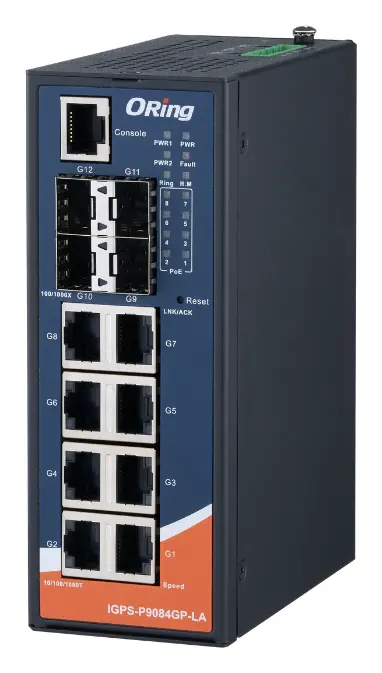

ORing IGPS-P9084GP-LA Endüstriyel IEC 61850-3 12 Port Yönetilebilir Gigabit PoE Switch ve 8G/PSE ve 4G SFP socket IEC 61850-3 Trafo Merkezi PoE Switch

ModelIGPS-P9084GP-LA

ORing IGPS-P9084GP-LA, 12 portlu gigabit bir endüstriyel switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 240 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 12 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Compliant with IEC 61850-3 and IEEE 1613 standards for power substation applications
8 × 10/100/1000Base-T(X) IEEE 802.3at PoE+ ports, delivering up to 30W per port
4 × 100/1000Base-X SFP ports for flexible fiber connectivity
Total PoE power budget of up to 240W
IEEE 1588v2 time synchronization
O-Ring redundancy with recovery times under 20ms across up to 250 nodes
Supports O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP redundancy protocols
Intelligent PoE management with scheduled power control, alive check, and automatic reboot

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 5 satır

Konsol	1
Reset	1
10/100/1000Base-T(X) ports with P.S.E. in RJ45	8
100/1000Base-X with SFP port	4
RS-232 Serial Console port	RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1

LED Göstergeler 7 satır

Güç Göstergesi	Green : Power LED x 3
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Green for Port LINK/ACT indicator; Dual color LED for speed indicator: Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps
100/1000Base-X SFP Port Indicator	Green for port Link/Act.
PoE Indicator	Green : PoE enabled LED x 8

Güç 6 satır

Güç Tüketimi (Tipik)	13.2 Watts for system only
PoE Output Power	Per port 56V DC, 350mA. Max. 15.4 watts (IEEE 802.3af); Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at)
Konnektör	6-pin terminal block
Yedekli Güç Girişi	50/57VDC
Toplam PoE Çıkış Gücü	240W max, 30W/per port
Aşırı Akım Koruması	Present

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches)
Ağırlık (g)	779g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.3z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1D for STP (Spanning Tree Protocol); IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link
MAC Adres Tablosu	8k
Packet buffer Size	4Mbit
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 24Gbps; Throughput (packet per second) : 17.856Mpps@64Bytes packet; Max. Number of Available VLANs: 4096; VLAN ID Range : VID 0 to 4095; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 9.6K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s); Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; DHCP Server/Client/Relay; SMTP Client; Modbus TCP; EtherNet/IPTM
Network Redundancy	O-Ring; Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output to carry capacity of 1A at 24VDC

Reset Function 1 satır

Reset Butonu	less than 5 sec: System reboot, greater than 5 sec: Factory default

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85 degrees C (-40 to 185 degrees F)
Çalışma Sıcaklığı	-40 to 75 degrees C (-40 to 167 degrees F )
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 9 satır

EMC	CE EMC (EN 55035, EN 55032); FCC Part 15 B
EMI	EN 55032; CISPR32; EN 61000-3-2; EN 61000-3-3; FCC Part 15 B class A
EMS	EN 55035 (IEC/EN 61000-4-2, IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4; IEC/EN 61000-4-5; IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF)
Darbe Dayanımı	IEC60068-2-27
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6
Güvenlik Standardı	EN62368-1
Diğer	IEC 61850-3; IEEE 1613
MTBF	602,954hrs

Genel bakış

ORing IGPS-P9084GP-LA kullanım alanları ve özellikleri.

ORing IGPS-P9084GP-LA – Industrial IEC 61850-3 12-port Managed Gigabit PoE Switch with 8G/PSE and 4G SFP socket. Bu ürün ORing Industrial Networking'in IEC 61850-3 Trafo Merkezi PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 13.2 Watts for system only
Konnektör: 6-pin terminal block
Yedekli Güç Girişi: 50/57VDC
Toplam PoE Çıkış Gücü: 240W max, 30W/per port
Kasa: IP-30
MAC Adres Tablosu: 8k
Jumbo Frame: Up to 9.6K Bytes
Çalışma Sıcaklığı: -40 to 75 degrees C (-40 to 167 degrees F )
Garanti: 5 years
MTBF: 602,954hrs

Temel Özellikler (Features)

Compliant with IEC 61850-3 and IEEE 1613 standards for power substation applications
8 × 10/100/1000Base-T(X) IEEE 802.3at PoE+ ports, delivering up to 30W per port
4 × 100/1000Base-X SFP ports for flexible fiber connectivity
Total PoE power budget of up to 240W
IEEE 1588v2 time synchronization
O-Ring redundancy with recovery times under 20ms across up to 250 nodes
Supports O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP redundancy protocols
Intelligent PoE management with scheduled power control, alive check, and automatic reboot
Supports IPv6, EtherNet/IP, Modbus TCP, VLAN, QoS, and IGMP snooping
Secure network access with HTTPS, SSH, ACL, TACACS+, IEEE 802.1X, and Device Binding
DoS/DDoS prevention and SNMPv3-based network management
Flexible management via Web GUI, SNMP, CLI, and Open-Vision
Syslog and SNMP Trap notifications for network event monitoring
Configuration backup and restoration via optional DBU-01 module
Wide operating temperature range of −40°C to +75°C

Genel Bakış (Description)

The ORing IGPS-P9084GP-LA is a 12-port managed industrial Gigabit PoE Ethernet switch designed for power substations and other mission-critical industrial networks. Compliant with IEC 61850-3 and IEEE 1613 , it features 8 Gigabit IEEE 802.3at PoE+ ports delivering up to 30W per port, with a total PoE power budget of 240W, and 4 additional 100/1000Base-X SFP ports for fiber connectivity. To ensure reliable network communication, the IGPS-P9084GP-LA supports multiple Ethernet redundancy protocols, including O-Ring with recovery times under 20ms across up to 250 nodes , MRP, and MSTP (RSTP/STP compatible). It also supports IEEE 1588v2 time synchronization, VLAN, QoS, and SNMP-based network management. With a rugged IP30 fanless design and a wide operating temperature range of −40°C to +75°C , the switch is well suited for demanding power utility and industrial automation environments.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Compliant with IEC 61850-3 and IEEE 1613 standards for power substation applications
8 × 10/100/1000Base-T(X) IEEE 802.3at PoE+ ports, delivering up to 30W per port
4 × 100/1000Base-X SFP ports for flexible fiber connectivity
Total PoE power budget of up to 240W
IEEE 1588v2 time synchronization
O-Ring redundancy with recovery times under 20ms across up to 250 nodes
Supports O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP redundancy protocols
Intelligent PoE management with scheduled power control, alive check, and automatic reboot
Supports IPv6, EtherNet/IP, Modbus TCP, VLAN, QoS, and IGMP snooping
Secure network access with HTTPS, SSH, ACL, TACACS+, IEEE 802.1X, and Device Binding
DoS/DDoS prevention and SNMPv3-based network management
Flexible management via Web GUI, SNMP, CLI, and Open-Vision
Syslog and SNMP Trap notifications for network event monitoring
Configuration backup and restoration via optional DBU-01 module
Wide operating temperature range of −40°C to +75°C
Rugged IP30 fanless design with DIN-rail and wall-mounting options

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IGPS-P9084GP-LA Kullanım Kılavuzu (EN)PDF · IGPS-P9084GP-LA

Sık sorulanlar

IGPS-P9084GP-LA hakkında kısa yanıtlar.

IGPS-P9084GP-LA IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 240 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

IGPS-P9084GP-LA kaç portlu?

IGPS-P9084GP-LA 12 porta sahiptir.

IGPS-P9084GP-LA fiyatı ne kadar?

IGPS-P9084GP-LA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
