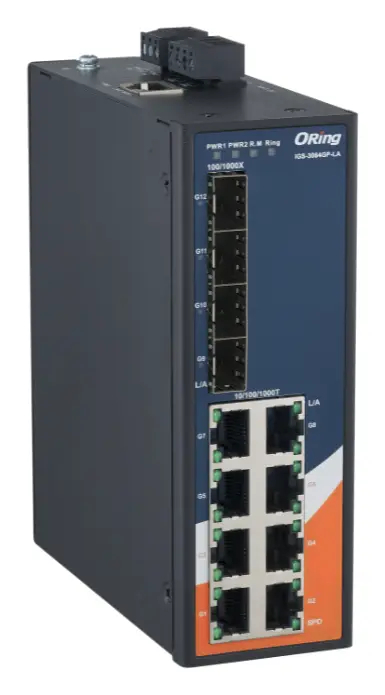

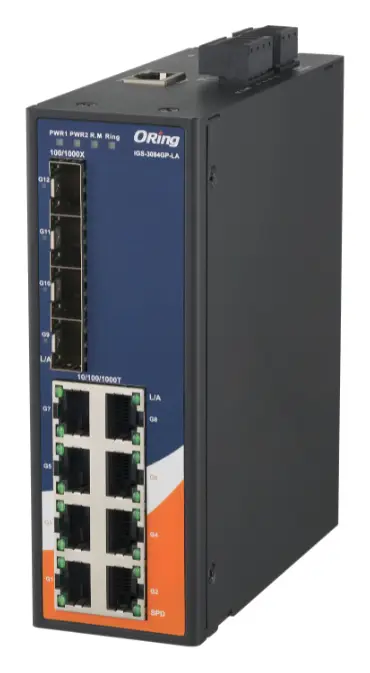

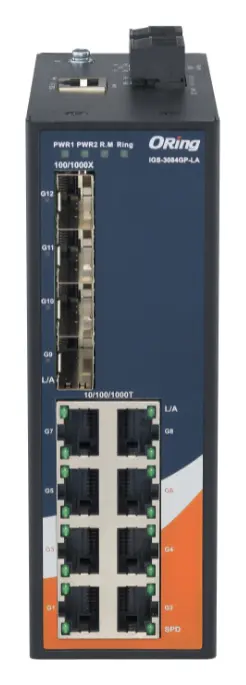

ORing IGS-3084GP-LA 12 Port Gigabit Ethernet switch ve 8x 10/100/1000Base-T(X) ve 4x 100/1000Base-(F)X SFP socket Endüstriyel Yönetilebilir Switch

ORing IGS-3084GP-LA – Industrial 12-port managed Gigabit Ethernet switch with 8x 10/100/1000Base-T(X) and 4x 100/1000Base-(F)X SFP socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 12 Watts
• Konnektör: Terminal Block
• Yedekli Güç Girişi: Dual 12~48V DC
• Kasa: IP-30
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 10K bytes
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 Years

Temel Özellikler (Features)

• O-Ring redundancy with recovery time < 30 ms for rings of up to 250 devices
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• MSTP/RSTP/STP supports
• Supports IPV6 new Internet Protocol version
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for ease of bandwidth management
• Event notification through Syslog server/client, Email, and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design

Genel Bakış (Description)

The ORing IGS-3084GP-LA is a 12-port industrial managed Gigabit Ethernet switch featuring 8 x 10/100/1000Base-T(X) RJ45 ports and 4 x 100/1000Base-X SFP slots for flexible copper and fiber connectivity. Designed for mission-critical industrial networks, it supports multiple Ethernet redundancy protocols, including O-Ring (recovery time < 30 ms for rings of up to 250 devices), O-Chain, IEC 62439-2 MRP, and MSTP/RSTP/STP, helping minimize network downtime and maintain reliable communication. O-Chain enables the interconnection of multiple redundant rings using different redundancy protocols, providing greater network flexibility and scalability. The switch also supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of optical transceiver parameters, along with network management and security features such as VLAN, SNMP, HTTPS/SSH, ACL, and IEEE 802.1X authentication. With dual redundant 12–48VDC power inputs, an IP30-rated aluminum enclosure, and a wide operating temperature range of -40°C to 75°C, the IGS-3084GP-LA is well suited for industrial automation and demanding fiber-optic networking applications.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• O-Ring redundancy with recovery time < 30 ms for rings of up to 250 devices
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• MSTP/RSTP/STP supports
• Supports IPV6 new Internet Protocol version
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+, and 802.1x User Authentication for security
• Port Trunking for ease of bandwidth management
• Event notification through Syslog server/client, Email, and SNMP trap
• RMON for traffic monitoring
• Support LLDP protocol
• Rigid IP-30 housing design
• DIN-Rail mounting enabled
• Web-based, Telnet, and Console (CLI) configuration
