Endüstriyel Switch IGS-P9812 Serisi

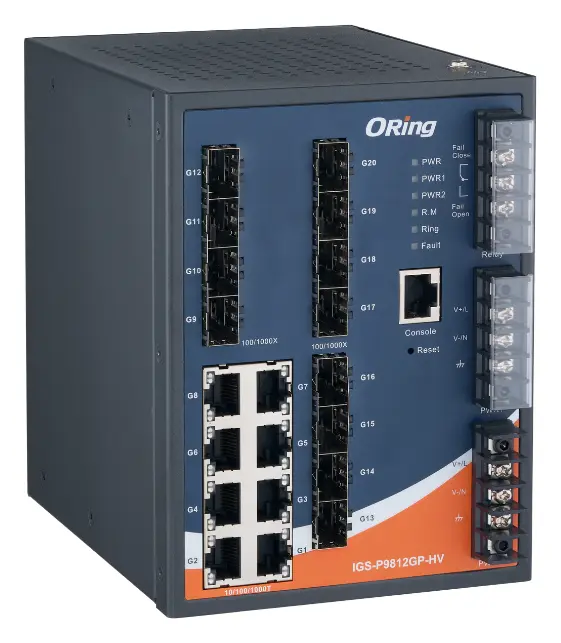

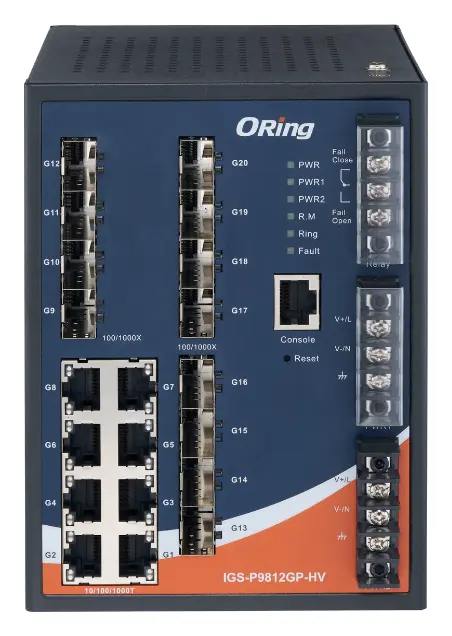

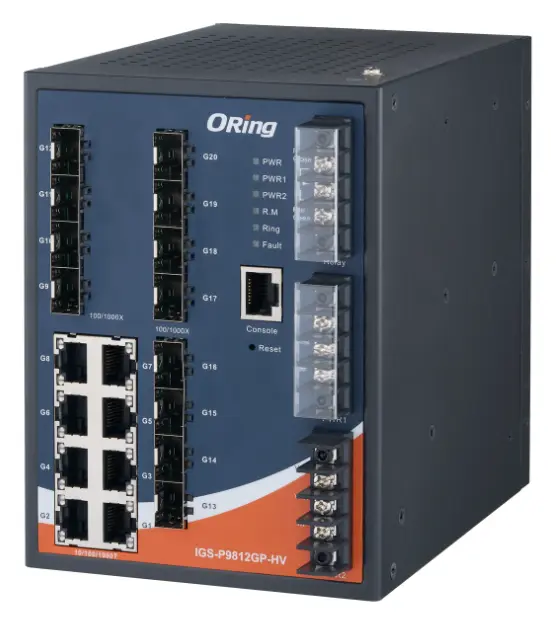

ORing IGS-P9812GP-HV IEC 61850-3 Cyber-hardened Yönetilebilir Ethernet Switch ve 8GE ve 12G SFP, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch

ModelIGS-P9812GP-HV

ORing IGS-P9812GP-HV, 45 portlu gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 45 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Designed for power substation, fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Supports O-Ring, O-Chain, RSTP/MSTP, IEC 62439-2 MRP and ERPS for Ethernet Redundancy
Supports IEEE 1588v2 clock Synchronization
Built-in MMS server and IEC 61850 QoS
Supports Modbus TCP and Ethernet/IP
Supports IEEE 802.3azEnergy-Efficient Ethernet technology
Provides HTTPS/SSH protocol to enhance network security

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 2 satır

10/100/1000Base-T(X) ports in RJ45	8
100/1000Base-X with SFP port	12

LED Göstergeler 6 satır

Power Indicator (Power)	Green : Power LED x 3
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Green for Link/Act.; Dual color LED for speed indicator: Green for 1000Mbps, Amber for 100Mbps, Off-light for 10Mbps
100/1000Base-X SFP Port Indicator	Green for port Link/Act

Güç 4 satır

Güç Tüketimi (Tipik)	24 Watts
Yedekli Güç Girişi	Dual power inputs. 85~264VAC / 88~373VDC on 6-pin; terminal block
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present

Koruma / Sertifikalar 1 satır

Güvenlik Standardı	EN60950-1

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	115 (W) x 159 (D) x 154 (H)mm (4.53 x 6.26 x 6.06 inch) Weight (g) 1520 g
Ağırlık (g)	1870 g

Teknoloji 9 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1Q-2014 MSTP (compatible with STP/RSTP); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Adres Tablosu	8k
Packet buffer Size	4Mbits
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 40Gbps; Max. Number of Available VLANs: 4095; VLAN ID Range: VID 1 to 4094; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define; Https / SSH enhance network security
Jumbo Frame	9.6K
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security
Software Features	MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; DHCP Server/Client/Relay; SMTP Client; Modbus TCP; NTP server

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output to carry capacity of 1A at 24VDC

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-40 to 75°C (-40 to 167°F )
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 8 satır

EMC	CE EMC (EN 55035 EN 55032), FCC Part 15 B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	EN 55035 IEC/EN 61000-4-2(ESD), IEC/EN 61000-4-3(RS), IEC/EN 61000-4-4(EFT),; IEC/EN 61000-4-5(Surge), IEC/EN 61000-4-6(CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11(DIP)
Darbe Dayanımı	IEC60068-2-27
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6
Güvenlik Standardı	EN60950-1
Diğer	IEC 61850-3, IEEE 1613

Genel bakış

ORing IGS-P9812GP-HV kullanım alanları ve özellikleri.

ORing IGS-P9812GP-HV – IEC 61850-3 Cyber-hardened Managed Ethernet Switch with 8GE and 12G SFP, Dual AC/DC. Bu ürün ORing Industrial Networking'in IEC 61850-3 Trafo Merkezi Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 24 Watts
Yedekli Güç Girişi: Dual power inputs. 85~264VAC / 88~373VDC on 6-pin; terminal block
Kasa: IP-30
MAC Adres Tablosu: 8k
Jumbo Frame: 9.6K
Çalışma Sıcaklığı: -40 to 75°C (-40 to 167°F )
Garanti: 5 years

Temel Özellikler (Features)

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Designed for power substation, fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Supports O-Ring, O-Chain, RSTP/MSTP, IEC 62439-2 MRP and ERPS for Ethernet Redundancy
Supports IEEE 1588v2 clock Synchronization
Built-in MMS server and IEC 61850 QoS
Supports Modbus TCP and Ethernet/IP
Supports IEEE 802.3azEnergy-Efficient Ethernet technology
Provides HTTPS/SSH protocol to enhance network security
Supports SMTP client & NTP server
Supports IP-based bandwidth management
Supports application-based QoS management
Supports backup unit device DBU-01 to quickly configuration backup/restore

Genel Bakış (Description)

ORing IGS-P9812GP is a managed Gigabit Ethernet switch designed for power substation applications, fully compliant with IEC 61850-3, IEEE 1613, and IEC 62443-4-2 cybersecurity standards. It features eight 10/100/1000Base-T(X) ports and twelve 100/1000Base-X SFP fiber ports. The switch supports O-Ring (recovery time under 30ms over 250 units) and MSTP/RSTP redundancy protocols to protect mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration. The switch operates across a temperature range of −40°C to +75°C.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Designed for power substation, fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Supports O-Ring, O-Chain, RSTP/MSTP, IEC 62439-2 MRP and ERPS for Ethernet Redundancy
Supports IEEE 1588v2 clock Synchronization
Built-in MMS server and IEC 61850 QoS
Supports Modbus TCP and Ethernet/IP
Supports IEEE 802.3azEnergy-Efficient Ethernet technology
Provides HTTPS/SSH protocol to enhance network security
Supports SMTP client & NTP server
Supports IP-based bandwidth management
Supports application-based QoS management
Supports backup unit device DBU-01 to quickly configuration backup/restore

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IGS-P9812GP-HV Kullanım Kılavuzu (EN)PDF · IGS-P9812GP-HV Hızlı Kurulum Kılavuzu (EN)PDF · IGS-P9812GP-HV

Sık sorulanlar

IGS-P9812GP-HV hakkında kısa yanıtlar.

IGS-P9812GP-HV kaç portlu?

IGS-P9812GP-HV 45 porta sahiptir.

IGS-P9812GP-HV fiyatı ne kadar?

IGS-P9812GP-HV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
