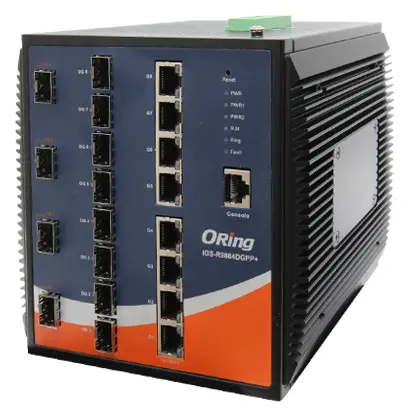

ORing IGS-R9884DGPP+ Layer-3 20 Port Ethernet switch ve 8x 10/100/1000Base-T(X), 8x 100/1G/2.5GBase-X, SFP socket Endüstriyel Yönetilebilir Switch

ORing IGS-R9884DGPP+ – Industrial Layer-3 20-port Managed Ethernet switch with 8x 10/100/1000Base-T(X), 8x 100/1G/2.5GBase-X, SFP socket, and 4x 1G/10GBase-X, SFP+ socket. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Temel Özellikler (Features)

• Supports static routing and route redistribution for IPv4
• Supports IPv4 routing protocols – RIP v2
• Supports standard IEC 62439-2 MRP
• Supports IPv6 new internet protocol version
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• Supports SMTP client and NTP server protocol
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DoS/DDoS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports port mirror function to monitor port data
• Supports ACL and 802.1x User Authentication for security

Genel Bakış (Description)

IGS-R9884DGPP+ is a Layer-3 20-port managed redundant ring Ethernet switches, that provided 8x 10/100/1000Base-T(X) copper ports, 8x 100/1G/2.5GBase-X with SFP socket and also provided 4x 1G/10GBase-X with SFP+ socket. IGS-R9884DGPP+ supports static routing, RIP and VRRP protocols. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -20°C to 60°C. IGS-R9884DGPP+ also be managed centralized and convenient by very powerful management utility – “Open-Vision”, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Supports static routing and route redistribution for IPv4
• Supports IPv4 routing protocols – RIP v2
• Supports standard IEC 62439-2 MRP
• Supports IPv6 new internet protocol version
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• Supports SMTP client and NTP server protocol
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DoS/DDoS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports port mirror function to monitor port data
• Supports ACL and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notification for warning of unexpected event
• Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Supports DBU-01 backup unit device to quickly backup/restore configuration
• Rigid IP-30 housing design, DIN-Rail and wall mounting enabled
