ORing

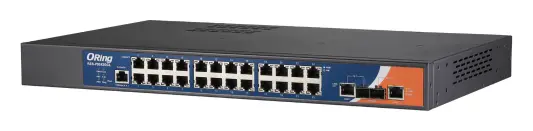

ORing RES-P9242GCL-HV IEC 61850-3 Cyber-hardened Yönetilebilir Ethernet Switch ve 24FE ve 2G Combo, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch

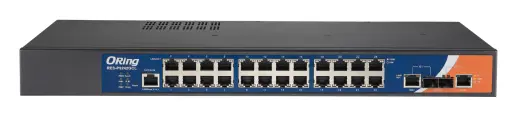

ORing RES-P9242GCL-HV IEC 61850-3 Cyber-hardened Yönetilebilir Ethernet Switch ve 24FE ve 2G Combo, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch — görsel 2

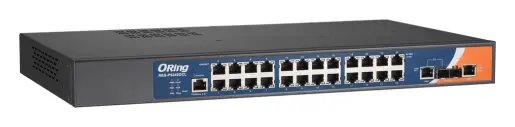

ORing RES-P9242GCL-HV IEC 61850-3 Cyber-hardened Yönetilebilir Ethernet Switch ve 24FE ve 2G Combo, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch — görsel 3
1 / 3
Endüstriyel Switch RES-P9242 Serisi

ORing RES-P9242GCL-HV IEC 61850-3 Cyber-hardened Yönetilebilir Ethernet Switch ve 24FE ve 2G Combo, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch

ModelRES-P9242GCL-HV

ORing RES-P9242GCL-HV, 12 portlu gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı
Gigabit
PoE
PoE yok
Port sayısı
12 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Designed for Power substation application and fully compliant with the IEC 61850-3 and IEEE 1613
  • Supports O-Ring, O-Chain, RSTP/MSTP and IEC 62439-2 MRP for Ethernet Redundancy
  • Built-in MMS server and IEC 61850 QoS
  • Supports IEEE 1588v2 clock Synchronization
  • Supports Modbus TCP and Ethernet/IP
  • Supports IEEE 802.3az Energy-Efficient Ethernet technology
  • Provides HTTPS/SSH protocol to enhance network security

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 2 satır
10/100Base-T(X) ports in RJ4524
Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports2
LED Göstergeler 6 satır
Güç GöstergesiGreen : Power indicator x 2
10/100/500Base-T(X) M12 P.S.E. Port IndicatorGreen : Indicates that the system is operating in O-Ring Master mode
10/100/500Base-T(X) M12 Port IndicatorGreen : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
10/100Base-T(X) M12 Port IndicatorAmber : Indicate unexpected event occurred
10/100Base-T(X) RJ45 Port IndicatorGreen for Link/Act indicator.; Green for speed indicator ~ On for 100Mbps / Off for 10Mbps
100/1000Base-X SFP Port IndicatorGreen for port Link/Act.
Güç 2 satır
Güç GirişiDual power inputs. 85~264VAC/88~300VDC
Aşırı Akım KorumasıPresent
Fiziksel Özellikler 3 satır
Kasa19 inches rack mountable
Dimensions (mm)443.7(W) x 262.7(D) x 44(H) mm (17.46x10.34x1.73 inch)
Ağırlık (g)4,050g
Teknoloji 8 satır
Ethernet StandartlarıIEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T; IEEE 802.3z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Adres Tablosu8k
Priority Queues8
Anahtarlama YöntemiStore-and-Forward
Switch ÖzellikleriSwitching latency: 7 us; Switching bandwidth: 7.46Gbps; Max. Number of Available VLANs: 4095; VLAN ID Range : VID 1 to 4094; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define
Security FeaturesDevice Binding; Enable/disable ports; MAC based port security; Port based network access control (802.1x); Single 802.1x and Multiple 802.1x; MAC-based authentication; QoS assignment; MAC address limit; TACACS+; VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization
Software FeaturesIEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static); Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP v2/v3 Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security;
Network RedundancyO-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible); Fast Recovery
Ortam Koşulları 3 satır
Depolama Sıcaklığı-40 to 85oC (-40 to 185oF)
Çalışma Sıcaklığı-40 to 85oC (-40 to 185oF )
Çalışma Nemi5% to 95% Non-condensing
Sertifikalar ve Onaylar 8 satır
EMCCE EMC (EN 55035, EN 55032), FCC Part 15 B, IEC 61850/ IEEE1613
EMIFCC Part 15, CISPR (EN55035) class B
EMSEN61000-4-2 (ESD) EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),; EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Darbe DayanımıIEC60068-2-27
Serbest DüşmeIEC60068-2-32
TitreşimIEC60068-2-6
Güvenlik StandardıEN62368-1
MTBF262,968 hrs

Genel bakış

ORing RES-P9242GCL-HV kullanım alanları ve özellikleri.

ORing RES-P9242GCL-HV – IEC 61850-3 Cyber-hardened Managed Ethernet Switch with 24FE and 2G Combo, Dual AC/DC. Bu ürün ORing Industrial Networking'in IEC 61850-3 Trafo Merkezi Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

  • Kasa: 19 inches rack mountable
  • MAC Adres Tablosu: 8k
  • Çalışma Sıcaklığı: -40 to 85oC (-40 to 185oF )
  • MTBF: 262,968 hrs

Temel Özellikler (Features)

  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Designed for Power substation application and fully compliant with the IEC 61850-3 and IEEE 1613
  • Supports O-Ring, O-Chain, RSTP/MSTP and IEC 62439-2 MRP for Ethernet Redundancy
  • Built-in MMS server and IEC 61850 QoS
  • Supports IEEE 1588v2 clock Synchronization
  • Supports Modbus TCP and Ethernet/IP
  • Supports IEEE 802.3az Energy-Efficient Ethernet technology
  • Provides HTTPS/SSH protocol to enhance network security
  • Supports SMTP client and NTP server protocol
  • Supports Device Binding security function
  • Supports DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Supports ACL and 802.1x User Authentication for security
  • SFP socket support DDM function

Genel Bakış (Description)

ORing RES-P9242GCL is a 26-port rackmount managed Ethernet switch designed for power substation applications, fully compliant with IEC 61850-3, IEEE 1613, and IEC 62443-4-2 cybersecurity standards. It features twenty-four 10/100Base-T(X) ports and two Gigabit combo ports with SFP sockets. The switch supports O-Ring and other Ethernet redundancy protocols to protect mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

  • Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
  • Designed for Power substation application and fully compliant with the IEC 61850-3 and IEEE 1613
  • Supports O-Ring, O-Chain, RSTP/MSTP and IEC 62439-2 MRP for Ethernet Redundancy
  • Built-in MMS server and IEC 61850 QoS
  • Supports IEEE 1588v2 clock Synchronization
  • Supports Modbus TCP and Ethernet/IP
  • Supports IEEE 802.3az Energy-Efficient Ethernet technology
  • Provides HTTPS/SSH protocol to enhance network security
  • Supports SMTP client and NTP server protocol
  • Supports Device Binding security function
  • Supports DoS/DDoS auto prevention
  • IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
  • Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
  • Supports ACL and 802.1x User Authentication for security
  • SFP socket support DDM function
  • Multiple notification for warning of unexpected event
  • Supports backup unit DBU-01 for quickly backup/restore configuration
  • Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
  • Supports LLDP Protocol
  • 19 inches rack mountable design

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RES-P9242GCL-HV Hızlı Kurulum Kılavuzu (EN)PDF · RES-P9242GCL-HV Kullanım Kılavuzu (EN)PDF · RES-P9242GCL-HV

Sık sorulanlar

RES-P9242GCL-HV hakkında kısa yanıtlar.

RES-P9242GCL-HV kaç portlu?
RES-P9242GCL-HV 12 porta sahiptir.
RES-P9242GCL-HV fiyatı ne kadar?
RES-P9242GCL-HV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
