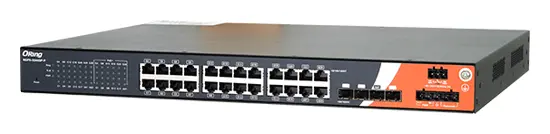

ORing RGPS-3244GP-P 28 Port Gigabit PoE Switch, 24GE PoE + 4G SFP Endüstriyel Yönetilebilir PoE Switch

ORing RGPS-3244GP-P – Industrial 28-port Managed Gigabit PoE Switch, 24GE PoE + 4G SFP. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): ≤25W
• Kasa: IP-30
• MAC Adres Tablosu: 8k
• Jumbo Frame: Up to 9.6K Bytes
• Çalışma Sıcaklığı: -40 to 75°C (-40 to 167°F )
• Garanti: 5 years

Temel Özellikler (Features)

• Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
• O-Chain allow multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• STP/RSTP/MSTP supported
• 16 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port ,total power output of 360W
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• 1Q VLAN
• Port Trunking for easy of bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Support LLDP protocol
• Event notification through Syslog, SNMP trap.
• 19 inches rack mountable design

Genel Bakış (Description)

RGPS-3244GP-P is a rack mount Gigabit managed PoE Ethernet switch with 24x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X，SFP socket . With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection), O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain providing ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. RGPS-3244GP-P also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. It is specifically designed for the toughest industrial environments. In addition, the wide operating temperature range from -40 ℃ to 75 ℃ can satisfy most of operating environment.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Redundant Ethernet Ring: O-Ring (recovery time < 30ms over 250 units of connection)
• O-Chain allow multiple redundant network rings
• Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• STP/RSTP/MSTP supported
• 16 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port ,total power output of 360W
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• 1Q VLAN
• Port Trunking for easy of bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Support LLDP protocol
• Event notification through Syslog, SNMP trap.
• 19 inches rack mountable design
