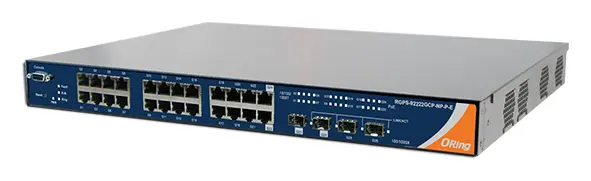

ORing RGPS-92222GCP-NP-P-E 22GE PoE + 2G Combo PoE + 2G SFP Cyber-hardened L2 Ethernet Switch, IEEE 802.3af/at, AC input Endüstriyel Yönetilebilir PoE Switch

ModelRGPS-92222GCP-NP-P-E

ORing RGPS-92222GCP-NP-P-E, 24 portlu gigabit bir endüstriyel switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Developed in accordance with IEC 62443-4-1 standards and certified to meet IEC 62443-4-2 compliance
24 port P.S.E. fully compliant with IEEE802.3at
Support RSTP/MSTP , O-Ring/O-Chain , MRP and G.8032
Support PoE scheduled configuration and PoE auto-ping check function
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 4 satır

Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports	2
10/100/1000/2500Base-T(X) ports with P.S.E. in RJ45	22
100/1000Base-X with SFP port	2
RS-232 Serial Console port	RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1

LED Göstergeler 7 satır

Power Indicator (Power)	Green : Power indicator
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Dual color LED for Speed/Link/Act; Green : 1000Mbps Link/Act; Amber : 10/100Mbps Link/Act
100/1000Base-X SFP Port Indicator	Green for port Link/Act.
PoE Indicator	Green : PoE enabled LED x 24

Güç 5 satır

Güç Tüketimi (Tipik)	37 Watts (P.D. not included)
PoE Output Power	30W/pre port
Güç Girişi	One 100 ~ 240VAC with AC socket and dual 50 ~ 57VDC with terminal block
Toplam PoE Çıkış Gücü	terminal block Power supply 1000 Watts power supply included (720W power budget)
Aşırı Akım Koruması	Present

Teknoloji 9 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol); IEEE 802.3at PoE spec
MAC Adres Tablosu	8K
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us Switching bandwidth: 52Gbps; Max. Number of Available VLANs: 4095; VLAN ID Range : VID 1 to 4094; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 9.6K Bytes
Security Features	Device Binding security feature Enable/disable ports, MAC based port security; Port based network access control (802.1x); Single 802.1x and Multiple 802.1x; MAC-based authentication; QoS assignment; Guest VLAN; MAC address limit; TACACS+; VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; Authorization (15 levels);
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP v2/v3 Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; D
Network Redundancy	O-Ring Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55035, EN 55032), FCC Part 15B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMS	IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4 (EFT); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF); IEC/EN 61000-4-11 (DIP))
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	EN 62368-1

Genel bakış

ORing RGPS-92222GCP-NP-P-E kullanım alanları ve özellikleri.

ORing RGPS-92222GCP-NP-P-E – 22GE PoE + 2G Combo PoE + 2G SFP Cyber-hardened Managed L2 Ethernet Switch, IEEE 802.3af/at, AC input. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 37 Watts (P.D. not included)
Toplam PoE Çıkış Gücü: terminal block Power supply 1000 Watts power supply included (720W power budget)
MAC Adres Tablosu: 8K
Jumbo Frame: Up to 9.6K Bytes

Temel Özellikler (Features)

Developed in accordance with IEC 62443-4-1 standards and certified to meet IEC 62443-4-2 compliance
24 port P.S.E. fully compliant with IEEE802.3at
Support RSTP/MSTP , O-Ring/O-Chain , MRP and G.8032
Support PoE scheduled configuration and PoE auto-ping check function
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN network management
Support ACL, TACACS+ and 802.1x User Authentication for security

Genel Bakış (Description)

RGPS-92222GCP-NP series are gigabit managed redundant ring PoE Ethernet switch with 22x 10/100/1000Base-T(X) P.S.E. ports, 2x gigabit combo P.S.E. ports and 2x 100/1000Base-X SFP ports. The series products developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2. With Ethernet redundancy protocols supported, which can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. RGPS-92222GCP-NP series also support Power over Ethernet, a system to transmit electrical power up to 30 watts, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each RGPS-92222GCP-NP switch has (22+2)x 10/100/1000Base-T(X) P.S.E. ports. P.S.E. is a device that will provide power in a PoE connection. RGPS-92222GCP-NP series can also be managed centralized and convenient by Open-Vision, Except the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and fiber PoE Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Developed in accordance with IEC 62443-4-1 standards and certified to meet IEC 62443-4-2 compliance
24 port P.S.E. fully compliant with IEEE802.3at
Support RSTP/MSTP , O-Ring/O-Chain , MRP and G.8032
Support PoE scheduled configuration and PoE auto-ping check function
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN network management
Support ACL, TACACS+ and 802.1x User Authentication for security
SFP socket support DDM function (Port 25~26 only)
Multiple notification for warning of unexpected event
Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
Support LLDP Protocol
19 inches rack mountable design

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RGPS-92222GCP-NP-P-E Hızlı Kurulum Kılavuzu (EN)PDF · RGPS-92222GCP-NP-P-E Kullanım Kılavuzu (EN)PDF · RGPS-92222GCP-NP-P-E

Sık sorulanlar

RGPS-92222GCP-NP-P-E hakkında kısa yanıtlar.

RGPS-92222GCP-NP-P-E IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.

RGPS-92222GCP-NP-P-E kaç portlu?

RGPS-92222GCP-NP-P-E 24 porta sahiptir.

RGPS-92222GCP-NP-P-E fiyatı ne kadar?

RGPS-92222GCP-NP-P-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
