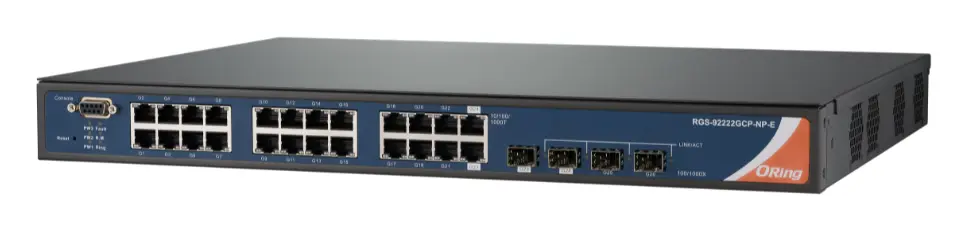

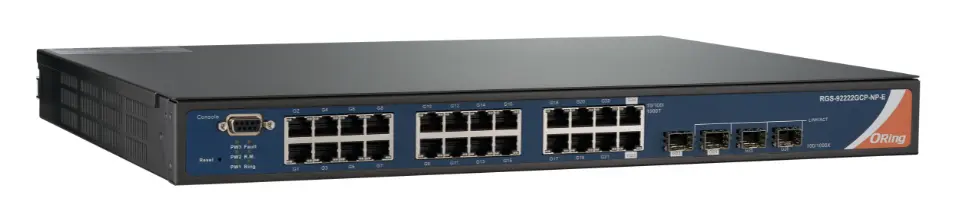

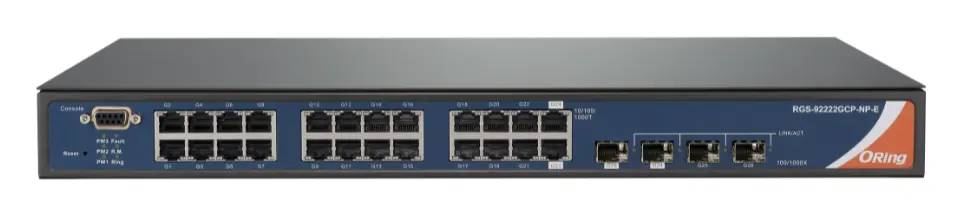

ORing RGS-92222GCP-NP-E 22GE + 2G Combo + 2G SFP Cyber-hardened L2 Ethernet Switch, AC ve Dual DC Endüstriyel Yönetilebilir Switch

ModelRGS-92222GCP-NP-E

ORing RGS-92222GCP-NP-E gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring , O-Chain , MRP , G.8032 ERPS and MSTP/RSTP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocols
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 3 satır

10/100/1000Base-T(X) ports in RJ45	22
Gigabit Combo ports with 10/100/1000Base-T(X) RJ45 and 100/1000Base-X SFP ports	2
100/1000Base-X with SFP port	2

Teknoloji 9 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Adres Tablosu	8K
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us Switching bandwidth: 52Gbps; Max. Number of Available VLANs: 4095; VLAN ID Range : VID 1 to 4094; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 9.6K Bytes
Security Features	Device Binding security feature Enable/disable ports, MAC based port security; Port based network access control (802.1x); Single 802.1x and Multiple 802.1x; MAC-based authentication; QoS assignment; Guest VLAN; MAC address limit; TACACS+; VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; Authorization (15 levels);
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP v2/v3 Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; D
Network Redundancy	O-Ring Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85℃ (-40 to 185℉)
Çalışma Sıcaklığı	-40 to 75℃ (-40 to 167℉ )
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55035, EN 55032), FCC Part 15B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMS	IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4 (EFT); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF); IEC/EN 61000-4-11 (DIP))
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	EN 62368-1

Genel bakış

ORing RGS-92222GCP-NP-E kullanım alanları ve özellikleri.

ORing RGS-92222GCP-NP-E – 22GE + 2G Combo + 2G SFP Cyber-hardened Managed L2 Ethernet Switch, AC and Dual DC. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

MAC Adres Tablosu: 8K
Jumbo Frame: Up to 9.6K Bytes
Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉ )
Garanti: 5 years

Temel Özellikler (Features)

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring , O-Chain , MRP , G.8032 ERPS and MSTP/RSTP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocols
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Supports backup unit device DBU-01 for quickly configuration backup/restore

Genel Bakış (Description)

The RGS-92222GCP-NP series is a gigabit managed redundant ring Ethernet switch featuring 22x 10/100/1000Base-T(X) copper ports, 2x Gigabit combo ports, and 2x 100/1000Base-X SFP ports. Developed in accordance with IEC 62443-4-1 standards and certified compliant with IEC 62443-4-2 industrial cybersecurity standards, this switch offers robust security measures. With support for network redundancy protocols, it ensures uninterrupted operation of mission-critical applications by quickly recovering from network interruptions or temporary malfunctions. Managed centrally and conveniently through Open-Vision, it provides web-based interface, Telnet, and console (CLI) configuration options. The RGS-92222GCP-NP series is the ideal choice for highly-managed Fiber Ethernet applications, offering reliability and advanced security features.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring , O-Chain , MRP , G.8032 ERPS and MSTP/RSTP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocols
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Supports backup unit device DBU-01 for quickly configuration backup/restore

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RGS-92222GCP-NP-E Hızlı Kurulum Kılavuzu (EN)PDF · RGS-92222GCP-NP-E Kullanım Kılavuzu (EN)PDF · RGS-92222GCP-NP-E

Sık sorulanlar

RGS-92222GCP-NP-E hakkında kısa yanıtlar.

RGS-92222GCP-NP-E fiyatı ne kadar?

RGS-92222GCP-NP-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
