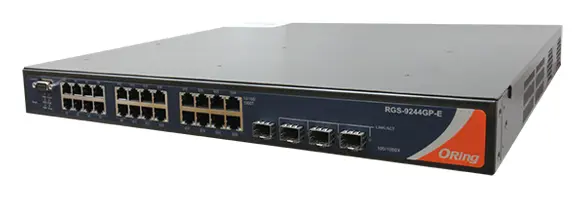

ORing RGS-9244GP-E 24GE + 4G SFP Ethernet Switch, AC ve Dual DC Endüstriyel Yönetilebilir Switch

Q: RGS-9244GP-E kaç portlu?

RGS-9244GP-E 45 porta sahiptir.

Q: RGS-9244GP-E fiyatı ne kadar?

RGS-9244GP-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRGS-9244GP-E

ORing RGS-9244GP-E, 45 portlu gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 45 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IEC 62439-2 MRP (Media Redundancy Protocol)
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server
Support IP-based bandwidth management

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 3 satır

10/100/1000Base-T(X) ports in RJ45	24
100/1000Base-X with SFP port	4
RS-232 Serial Console port	RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1

LED Göstergeler 6 satır

Power Indicator (Power)	Green LED x 3 : Power-1/2/3 indicator
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Green for Link/Act indicator; Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps
100/1000Base-X SFP Port Indicator	Green for port Link/Act.

Güç 2 satır

Güç Tüketimi (Tipik)	30 watts max. for DC power input; 30.6 watts max. for AC power input
Güç Girişi	100 ~ 240VAC with power socket and dual 48VDC (36 ~ 72VDC) at 6-pin terminal block

Fiziksel Özellikler 2 satır

Dimensions (mm)	431 (W) x 342 (D) x 44 (H)mm (16.97 x 13.46 x 1.73 inch)
Ağırlık (g)	4652 g

Teknoloji 9 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Adres Tablosu	8K
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us Switching bandwidth: 56Gbps Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define
Jumbo Frame	Up to 10K Bytes
Security Features	Device Binding security feature Enable/disable ports, MAC based port security; Port based network access control (802.1x); Single 802.1x and Multiple 802.1x; MAC-based authentication; QoS assignment; Guest VLAN; MAC address limit; TACACS+; VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; Authorization (15 levels);
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP v2/v3 Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; D
Network Redundancy	O-Ring Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85oC (-40 to 185oF)
Çalışma Sıcaklığı	-40 to 75oC (-40 to 167oF)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5-years

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55035, EN 55032), FCC Part 15B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMS	IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4 (EFT); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF); IEC/EN 61000-4-11 (DIP))
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	EN 62368-1

Genel bakış

ORing RGS-9244GP-E kullanım alanları ve özellikleri.

ORing RGS-9244GP-E – 24GE + 4G SFP Managed Ethernet Switch, AC and Dual DC. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 30 watts max. for DC power input; 30.6 watts max. for AC power input
MAC Adres Tablosu: 8K
Jumbo Frame: Up to 10K Bytes
Çalışma Sıcaklığı: -40 to 75oC (-40 to 167oF)
Garanti: 5-years

Temel Özellikler (Features)

Support O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IEC 62439-2 MRP (Media Redundancy Protocol)
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DOS/DDOS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL and 802.1x User Authentication for security
Support 10K Bytes Jumbo Frame

Genel Bakış (Description)

RGS-9244GP series are Gigabit managed redundant ring Ethernet switch with 24x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9244GP series support wide operating temperature from -40 o C to 75 o C. RGS-9244GP series can also be managed centralized and convenient by Open-Vision, as well as the web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Support O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IEC 62439-2 MRP (Media Redundancy Protocol)
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DOS/DDOS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL and 802.1x User Authentication for security
Support 10K Bytes Jumbo Frame
SFP socket support DDM function
Multiple notification for warning of unexpected event
Web-based ,Telnet, Console (CLI), and Windows utility ( Open-Vision ) configuration
Support LLDP Protocol
Support DBU-01 backup unit device to quickly backup/restore configuration
19 inches rack mountable design

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RGS-9244GP-E Kullanım Kılavuzu (EN)PDF · RGS-9244GP-E

Sık sorulanlar

RGS-9244GP-E hakkında kısa yanıtlar.

RGS-9244GP-E kaç portlu?

RGS-9244GP-E 45 porta sahiptir.

RGS-9244GP-E fiyatı ne kadar?

RGS-9244GP-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
