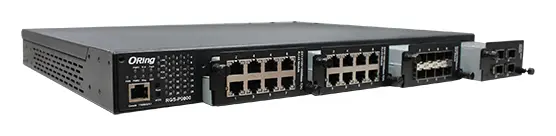

ORing RGS-P9000-HV IEC 61850-3 Modular Cyber-hardened Yönetilebilir L2 Ethernet Switch, 4 Slots, Dual AC/DC IEC 61850-3 Trafo Merkezi Switch

ModelRGS-P9000-HV

ORing RGS-P9000-HV gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

IEC 61850-3 & IEEE 1613 Certified – Built for power utility and substation networks
IEC 62443 Cybersecurity – IEC 62443-4-1 developed and IEC 62443-4-2 certified
Flexible Modular Design – 4 slots with Gigabit and 10GbE options
High Network Availability – O-Ring, O-Chain, MRP, ERPS, RSTP and MSTP
IEC 61850 Support – Built-in MMS server and IEC 61850 QoS
Industrial Protocols – Modbus TCP and EtherNet/IP
Precise Time Synchronization – IEEE 1588v2
Redundant High-Voltage Power – Dual 100–240 VAC / 100–370 VDC inputs

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 1 satır

10/100/1000Base-T(X) ports in RJ45	-

LED Göstergeler 5 satır

System Indicator (Status)	Green : Indicates that the system ready. The LED is blinking when the system is upgrading firmware
Power Indicator (Power)	Green : Power LED x 2
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred

Güç 3 satır

Güç Tüketimi (Tipik)	43.5Watts max.
Yedekli Güç Girişi	Dual 100 - 240VAC / 100 - 370VDC power inputs at terminal block
Aşırı Akım Koruması	Present

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	440 (W) x 325 (D) x 44 (H) mm (17.32x12.8x1.73 inch)
Ağırlık (g)	6,600g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3ae for 10Gigabit Ethernet; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Disc
MAC Adres Tablosu	32K
Packet buffer Size	32Mbits
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 128Gbps; Max. Number of Available VLANs: 4095; VLAN ID range: VID 1 to 4094; IGMP multicast groups: 128 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 10K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); MAC-based authentication(802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; IP source guard
Software Features	IEEE 1588v2 clock synchronization; IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static); Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; Guest VLAN; GVRP; IGMP v2/v3 Snooping; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, sec
Network Redundancy	O-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible); ERPS

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output to carry capacity of 1A at 24VDC

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	24VDC~36VDC: 10G SFP+ module absent : -40 to 75oC; 24VDC~36VDC: 10G SFP+ module used: -20 to 50 oC; 36VDC~72VDC: 10G SFP+ module absent : -40 to 85oC; 36VDC~72VDC: 10G SFP+ module used: -20 to 60 oC; 10G SFP+ module absent : -40 to 85oC; 10G SFP+ module used: -20 to 60oC
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 9 satır

EMC	EN 55032, EN 55024 (CE EMC), EN 50121-1, EN 50121-4, FCC Part 15 B, EN 61000-6-2, EN 61000-6-4, IEC 61000-3-2, IEC 61000-3-3
EMI	CISPR 32, EN 55032, FCC Part 15 B Class A
EMS	IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000- 4-8 (PFMF), IEC 61000-4-11 (DIP)
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	IEC 60950-1, UL 60950-1, EN60950-1
Diğer	NEMA TS1 & TS2
MTBF	647,420 hours

Genel bakış

ORing RGS-P9000-HV kullanım alanları ve özellikleri.

ORing RGS-P9000-HV – IEC 61850-3 Modular Cyber-hardened Managed L2 Ethernet Switch, 4 Slots, Dual AC/DC. Bu ürün ORing Industrial Networking'in IEC 61850-3 Trafo Merkezi Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 43.5Watts max.
Yedekli Güç Girişi: Dual 100 - 240VAC / 100 - 370VDC power inputs at terminal block
Kasa: IP-30
MAC Adres Tablosu: 32K
Jumbo Frame: Up to 10K Bytes
Garanti: 5 years
MTBF: 647,420 hours

Temel Özellikler (Features)

IEC 61850-3 & IEEE 1613 Certified – Built for power utility and substation networks
IEC 62443 Cybersecurity – IEC 62443-4-1 developed and IEC 62443-4-2 certified
Flexible Modular Design – 4 slots with Gigabit and 10GbE options
High Network Availability – O-Ring, O-Chain, MRP, ERPS, RSTP and MSTP
IEC 61850 Support – Built-in MMS server and IEC 61850 QoS
Industrial Protocols – Modbus TCP and EtherNet/IP
Precise Time Synchronization – IEEE 1588v2
Redundant High-Voltage Power – Dual 100–240 VAC / 100–370 VDC inputs
Optional HSR/PRP – IEC 62439-3 seamless redundancy module
Wide Operating Temperature – Up to −40°C to +85°C

Genel Bakış (Description)

ORing RGS-P9000 is a modular managed industrial Ethernet switch designed for power utility, smart grid, and substation networks . Built for reliable communication in mission-critical power environments, the RGS-P9000 complies with TÜV IEC 61850-3, TÜV IEEE 1613/IEEE 1613.1, and IEC 62443-4-2 cybersecurity standards , providing secure and resilient network connectivity for modern power infrastructure. With four modular slots , the RGS-P9000 enables flexible port configurations to meet different network requirements. It supports O-Ring Ethernet redundancy with recovery times under 30 ms for networks of up to 250 switches , as well as MSTP, RSTP, and STP, helping maintain network availability during link or device failures. For network management, the RGS-P9000 supports ORing Open-Vision network management software, web-based management, Telnet, and CLI console configuration , giving operators flexible options for network monitoring and administration. Its rugged industrial design supports an operating temperature range of −40°C to +85°C , or −20°C to +60°C when using 10G SFP modules , making it suitable for demanding substation and power utility environments.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

IEC 61850-3 & IEEE 1613 Certified – Built for power utility and substation networks
IEC 62443 Cybersecurity – IEC 62443-4-1 developed and IEC 62443-4-2 certified
Flexible Modular Design – 4 slots with Gigabit and 10GbE options
High Network Availability – O-Ring, O-Chain, MRP, ERPS, RSTP and MSTP
IEC 61850 Support – Built-in MMS server and IEC 61850 QoS
Industrial Protocols – Modbus TCP and EtherNet/IP
Precise Time Synchronization – IEEE 1588v2
Redundant High-Voltage Power – Dual 100–240 VAC / 100–370 VDC inputs
Optional HSR/PRP – IEC 62439-3 seamless redundancy module
Wide Operating Temperature – Up to −40°C to +85°C

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RGS-P9000-HV Kullanım Kılavuzu (EN)PDF · RGS-P9000-HV Hızlı Kurulum Kılavuzu (EN)PDF · RGS-P9000-HV

Sık sorulanlar

RGS-P9000-HV hakkında kısa yanıtlar.

RGS-P9000-HV fiyatı ne kadar?

RGS-P9000-HV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
