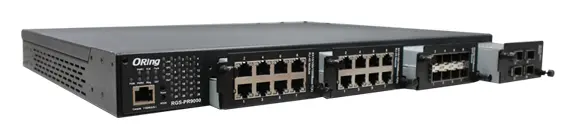

ORing RGS-PR9000-LV IEC 61850-3 Modular L3 Yönetilebilir Substation Ethernet Switch, 4 Slots, Dual 24/48VDC IEC 61850-3 Trafo Merkezi Switch

Q: RGS-PR9000-LV fiyatı ne kadar?

RGS-PR9000-LV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRGS-PR9000-LV

ORing RGS-PR9000-LV gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Designed for power substation / railway application
Fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Modular designed makes network planning easy
Supports Layer 3 routing, RIP and static routing
Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol)
Support IEEE 1588v2 clock Synchronization

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 1 satır

10/100/1000Base-T(X) ports in RJ45	-

LED Göstergeler 5 satır

System Indicator (Status)	Green: Indicates that the system ready. The LED is blinking when the system is upgrading firmware
Power Indicator (Power)	Green : Power LED x 2
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	440 (W) x 356 (D) x 44 (H) mm (17.32x14x1.73 inch)
Ağırlık (g)	6,450g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3ae for 10Gigabit Ethernet; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Disc
MAC Adres Tablosu	32k
Packet buffer Size	32Mbits
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 128Gbps; Max. Number of Available VLANs: 4095; VLAN ID range: VID 1 to 4094; IGMP multicast groups: 128 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 10K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); MAC-based authentication (802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; IP source guard
Software Features	Hardware routing, RIP and static routing; IEEE 1588v2 clock synchronization; IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; Guest VLAN; GVRP; IGMP v2/v3 Snooping; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring,
Network Redundancy	O-Ring; O-Chain; MRP NOTE 1; MSTP (RSTP/STP compatible); ERPS

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85oC (-40 to 185oF)
Çalışma Sıcaklığı	24VDC~36VDC 10G SFP+ module absent : -40 to 75°C; 24VDC~36VDC 10G SFP+ module used: -20 to 50°C; 36VDC~72VDC 10G SFP+ module absent : -40 to 85°C; 36VDC~72VDC 10G SFP+ module used: -20 to 60°C
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 9 satır

EMC	CE EMC (EN 55024, EN 55032), FCC Part 15 B, IEC 61850-3, IEEE 1613, EN 61000-6-2/-4 ; EN 50121-1/-4
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A, EN 61000-6-4
EMS	EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)), EN 61000-6-2
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	IEC 60950-1, UL 60950-1, EN60950-1
Diğer	NEMA TS1&TS2
MTBF	608,907 hours

Genel bakış

ORing RGS-PR9000-LV kullanım alanları ve özellikleri.

ORing RGS-PR9000-LV – IEC 61850-3 Modular L3 Managed Substation Ethernet Switch, 4 Slots, Dual 24/48VDC. Bu ürün ORing Industrial Networking'in IEC 61850-3 Trafo Merkezi Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Kasa: IP-30
MAC Adres Tablosu: 32k
Jumbo Frame: Up to 10K Bytes
Çalışma Sıcaklığı: 24VDC~36VDC 10G SFP+ module absent : -40 to 75°C; 24VDC~36VDC 10G SFP+ module used: -20 to 50°C; 36VDC~72VDC 10G SFP+ module absent : -40 to 85°C; 36VDC~72VDC 10G SFP+ module used: -20 to 60°C
Garanti: 5 years
MTBF: 608,907 hours

Temel Özellikler (Features)

Designed for power substation / railway application
Fully compliant with the requirement of IEC 61850-3 and IEEE 1613
Modular designed makes network planning easy
Supports Layer 3 routing, RIP and static routing
Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol)
Support IEEE 1588v2 clock Synchronization

Genel Bakış (Description)

RGS-PR9000 is Layer-3 modular managed redundant ring Ethernet switch with 4 slots. The switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40 oC to 85 oC (If use 10G SFP module then operating temperature is -20°C - 60°C). RGS-PR9000 can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for substation automation and rolling stock application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · RGS-PR9000-LV Hızlı Kurulum Kılavuzu (EN)PDF · RGS-PR9000-LV Kullanım Kılavuzu (EN)PDF · RGS-PR9000-LV

Sık sorulanlar

RGS-PR9000-LV hakkında kısa yanıtlar.

RGS-PR9000-LV fiyatı ne kadar?

RGS-PR9000-LV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
