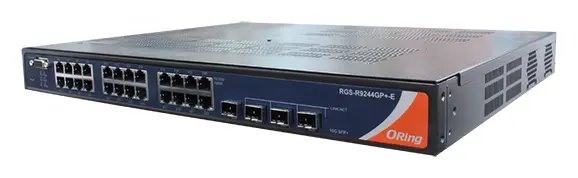

ORing RGS-R9244GP+-E 24GE + 4 1G/10G SFP L3 Ethernet Switch, AC ve Dual DC input Endüstriyel Yönetilebilir Switch

Q: RGS-R9244GP+-E kaç portlu?

RGS-R9244GP+-E 45 porta sahiptir.

Q: RGS-R9244GP+-E fiyatı ne kadar?

RGS-R9244GP+-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRGS-R9244GP+-E

ORing RGS-R9244GP+-E, 45 portlu gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 45 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Support Layer 3 routing, RIP and static routing function
Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IPv6 new internet protocol version
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 2 satır

10/100/1000Base-T(X) ports in RJ45	24
1000/10G Base-X with SFP/SFP+ port	4

LED Göstergeler 5 satır

Power Indicator (Power)	Green : Power indicator
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator	Dual color LED for Speed/Link/Act; Green : 1000Mbps Link/Act; Amber : 10/100Mbps Link/Act

Güç 3 satır

Güç Tüketimi (Tipik)	37.4W
Güç Girişi	100 ~ 240VAC with power cord, dual 36 ~ 72VDC power input
Aşırı Akım Koruması	Present

Fiziksel Özellikler 2 satır

Dimensions (mm)	431 x 342 x 44mm (17 x 13.46 x 1.73 inch)
Ağırlık (g)	4,754g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3ae for 10Gigabit Ethernet; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Disc
MAC Adres Tablosu	32K
Packet buffer Size	32bits
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 128Gbps; Max. Number of Available VLANs: 4095; VLAN ID range: VID 1 to 4094; IGMP multicast groups: 128 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 10K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); MAC-based authentication(802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; IP source guard
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP v2/v3 Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; D
Network Redundancy	O-Ring Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-40 to 75°C (-40 to 167°F)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5-years

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55035, EN 55032), FCC Part 15B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
EMS	IEC/EN 61000-4-2 (ESD) IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4 (EFT); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF); IEC/EN 61000-4-11 (DIP))
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6
Güvenlik Standardı	EN 62368-1

Genel bakış

ORing RGS-R9244GP+-E kullanım alanları ve özellikleri.

ORing RGS-R9244GP+-E – 24GE + 4 1G/10G SFP L3 Managed Ethernet Switch, AC and Dual DC input. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 37.4W
MAC Adres Tablosu: 32K
Jumbo Frame: Up to 10K Bytes
Çalışma Sıcaklığı: -40 to 75°C (-40 to 167°F)
Garanti: 5-years

Temel Özellikler (Features)

Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Support Layer 3 routing, RIP and static routing function
Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IPv6 new internet protocol version
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL and 802.1x User Authentication for security

Genel Bakış (Description)

RGS-R9244GP+ series are Layer-3 Gigabit managed redundant ring Ethernet switch with 24x10/100/1000Base-T(X) ports and 4x1G/10GBase-X SFP+ ports. These switches support Layer-3 function like RIP and static routing. RGS-R9244GP+ series support wide operating temperature from -20°C to 60°C. RGS-R9244GP+ series can also be managed centralized and convenient by Open-Vision as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and fiber Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Support Layer 3 routing, RIP and static routing function
Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support IPv6 new internet protocol version
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL and 802.1x User Authentication for security
Support 9.6K Bytes Jumbo Frame
SFP socket support DDM function
Multiple notification for warning of unexpected event
Support LLDP Protocol
19 inches rack mountable design
Support DBU-01 backup unit device to quickly backup/restore configuration
Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Kullanım Kılavuzu (EN)PDF · RGS-R9244GP+-E Datasheet (EN)PDF · RGS-R9244GP+-E Hızlı Kurulum Kılavuzu (EN)PDF · RGS-R9244GP+-E

Sık sorulanlar

RGS-R9244GP+-E hakkında kısa yanıtlar.

RGS-R9244GP+-E kaç portlu?

RGS-R9244GP+-E 45 porta sahiptir.

RGS-R9244GP+-E fiyatı ne kadar?

RGS-R9244GP+-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
