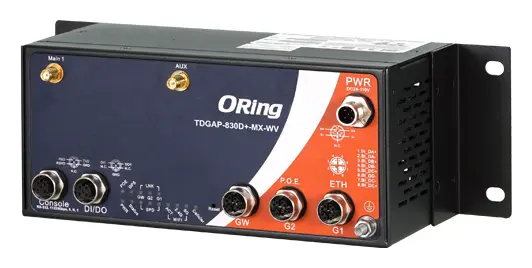

ORing TDGAP-830D+-M12X-WV EN50155 WIFI5 Access Point ve 3x10/100/1000Base-T(X), M12 konnektör Endüstriyel Access Point

ModelTDGAP-830D+-M12X-WV

ORing TDGAP-830D+-M12X-WV endüstriyel access point: Leading EN50155 -compliant wireless access point for rolling stock application, High Speed Air Connectivity: WIFI5 interface support up to 867, Mbps link speed and WIFI6 up to 1733Mbps link speed, Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PS.

Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Leading EN50155 -compliant wireless access point for rolling stock application
High Speed Air Connectivity: WIFI5 interface support up to 867
Mbps link speed and WIFI6 up to 1733Mbps link speed
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Support external SMA antenna installation
Support AP/Client Mode
Support Multiple-SSID to 4 SSID
Support MAC Filter

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 1 satır

10/100/1000Base-T(X) ports in M12	3(LAN)

LED Göstergeler 5 satır

Ethernet Port Indicator	6 x LEDs,; LNK: Green for port Link/AcT.; SPD: Green On for 1000/100Base-T(X) link; Green Off for 10Base link
WIFI(WLAN) Indicator	3 x LEDs,; 1 x LED, Green On: RF on, Blink: data transmitting; 1 x LED, Green for WLAN work on 2.4GHz; 1 x LED, Green for WLAN work on 5GHz
SIM Indicator	1 x LED, Green slow blink for normal, off for system halt
Güç Göstergesi	1 x LED, Green for DC Power in
PoE Indicator	1 x LED, Green for POE Power in

Güç 5 satır

Isolation	DC 2KV/ AC 1.5KV
Güç Tüketimi (Tipik)	25 watts Max.
Güç Girişi	24 ~ 110Vdc
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present

Antenna Connector 1 satır

WIFI	2 x RP-SMA female

Kablosuz (WLAN) Arayüz 6 satır

Modülasyon	IEEE 802.11a: OFDM; IEEE 802.11b: CCK, DQPSK, DBPSK; IEEE 802.11g: OFDM; IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM; IEEE 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Frekans Bandı	America / FCC:; 2.412~2.462 GHz; 5.180~5.240 GHz & 5.745~5.825 GHz; Europe CE / ETSI:; 2.412~2.472 GHz; 5.180~5.240 GHz
İletim Hızı	IEEE 802.11b: 1/2/5.5/11 Mbps; IEEE 802.11a/g: 6/9/12/18/24/36/48/54 Mbps; IEEE 802.11n: UP to 300 Mbps; IEEE 802.11ac: up to 867Mbps
Yayın Gücü	IEEE 802.11a: 12dBm ± 2dBm@54Mbps; IEEE 802.11b: 18dBm ± 2dBm@11Mbps; IEEE 802.11g: 15dBm ± 2dBm@54Mbps; IEEE 802.11gn HT20: 14dBm ± 2dBm @MCS7; IEEE 802.11gn HT40: 14dBm ± 2dBm @MCS7; IEEE 802.11an HT20: 11dBm ± 2dBm @MCS7; IEEE 802.11an HT40: 10dBm ± 2dBm @MCS7; IEEE 802.11ac VHT80: 7dBm ± 2dBm @MCS9
Alıcı Hassasiyeti	IEEE 802.11a : -71dBm ± 2dBm@54Mbps; IEEE 802.11b : -86dBm ± 2dBm@11Mbps; IEEE 802.11g : -72dBm ± 2dBm@54Mbps; IEEE 802.11gn HT20:-68dBm ± 2dBm@MCS7; IEEE 802.11gn HT40:-66dBm ± 2dBm@MCS7; IEEE 802.11an HT20:-68dBm ± 2dBm@MCS7; IEEE 802.11an HT40:-67dBm ± 2dBm@MCS7; IEEE 802.11ac VHT80:-57dBm ± 2dBm@MCS9
Şifreleme Güvenliği	WEP: (64-bit ,128-bit key supported); WPA/WPA2 :802.11i(WEP and AES encryption); WPA-PSK (256-bit key pre-shared key supported); 802.1X Authentication supported; TKIP encryption

Protocol Support 1 satır

Protokol	ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP

Fiziksel Özellikler 3 satır

Kasa	IP-30. (IP-40 for front face)
Dimensions (mm)	200(W) x 100(D) x 89(H)
Ağırlık (g)	1170

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-25 to 70°C (-13 to 158°F)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 7 satır

Rail Traffic	EN50155
EMI	FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Darbe Dayanımı	IEC60068-2-27, EN61373
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6, EN61373
Güvenlik Standardı	EN60950-1

Genel bakış

ORing TDGAP-830D+-M12X-WV kullanım alanları ve özellikleri.

ORing TDGAP-830D+-M12X-WV – Industrial EN50155 WIFI5 Access Point with 3x10/100/1000Base-T(X), M12 Connector. Bu ürün ORing Industrial Networking'in Endüstriyel Access Point ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 25 watts Max.
Frekans Bandı: America / FCC:; 2.412~2.462 GHz; 5.180~5.240 GHz & 5.745~5.825 GHz; Europe CE / ETSI:; 2.412~2.472 GHz; 5.180~5.240 GHz
İletim Hızı: IEEE 802.11b: 1/2/5.5/11 Mbps; IEEE 802.11a/g: 6/9/12/18/24/36/48/54 Mbps; IEEE 802.11n: UP to 300 Mbps; IEEE 802.11ac: up to 867Mbps
Kasa: IP-30. (IP-40 for front face)
Çalışma Sıcaklığı: -25 to 70°C (-13 to 158°F)
Garanti: 5 years

Temel Özellikler (Features)

Leading EN50155 -compliant wireless access point for rolling stock application
High Speed Air Connectivity: WIFI5 interface support up to 867
Mbps link speed and WIFI6 up to 1733Mbps link speed
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Support external SMA antenna installation
Support AP/Client Mode
Support Multiple-SSID to 4 SSID
Support MAC Filter
Wireless connecting status monitoring
Secured Management by HTTPS
1KV isolation for PoE P.D. port
Event Warning by Syslog, Email, SNMP Trap, and Relay output
Rigid IP-40 housing design
Wall mounting enabled

Genel Bakış (Description)

ORing’s TransporterTM series access point is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TDGAP-820D+-M12X-WV is a reliable WIFI5 WLAN Access Point with 3 Ethernet 10/100/1000 ports. It can be configured to operate in AP/Client Mode. TDGAP-820D+-M12X-WV provide a dust-tight connection and reverses SMA-type connectors that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TDGAP-820D+-M12X-WV by WEB interface via LAN port or WLAN interface. TDGAP-820D+-M12X-WV can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. In addition, TDGAP-820D+-M12X-WV also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3at PoE P.D. specification. Therefore, TDGAP-820D+-M12X-WV is one of the best communication solutions for wireless applications.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Leading EN50155 -compliant wireless access point for rolling stock application
High Speed Air Connectivity: WIFI5 interface support up to 867
Mbps link speed and WIFI6 up to 1733Mbps link speed
Highly Security Capability: WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Support external SMA antenna installation
Support AP/Client Mode
Support Multiple-SSID to 4 SSID
Support MAC Filter
Wireless connecting status monitoring
Secured Management by HTTPS
1KV isolation for PoE P.D. port
Event Warning by Syslog, Email, SNMP Trap, and Relay output
Rigid IP-40 housing design
Wall mounting enabled

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · TDGAP-830D+-M12X-WV Hızlı Kurulum Kılavuzu (EN)PDF · TDGAP-830D+-M12X-WV Kullanım Kılavuzu (EN)PDF · TDGAP-830D+-M12X-WV

Sık sorulanlar

TDGAP-830D+-M12X-WV hakkında kısa yanıtlar.

TDGAP-830D+-M12X-WV fiyatı ne kadar?

TDGAP-830D+-M12X-WV için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
