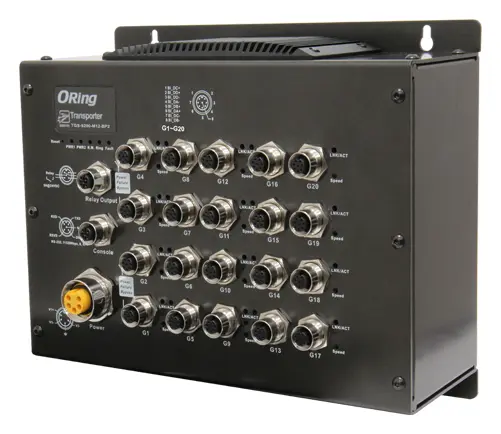

ORing TGS-9200-M12-BP2 EN50155 20 Port Yönetilebilir Gigabit Ethernet switch ve 20x10/100/1000Base-T(X) EN50155 Demiryolu Switch

ORing TGS-9200-M12-BP2 – EN50155 20-port managed Gigabit Ethernet switch with 20x10/100/1000Base-T(X), X-coded M12 connector and 2xbypass included. Bu ürün ORing Industrial Networking'in EN50155 Demiryolu Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 21 Watts
• Yedekli Güç Girişi: Dual DC inputs. 12~48VDC on 5-pin M23 female connector
• Kasa: IP-30, Iron
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 9.6K Bytes
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 years
• MTBF: 205269.3131 hrs.

Temel Özellikler (Features)

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• Supports standard ITU-T G.8032 ERPS v1/v2 for Ethernet Redundancy
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provides HTTPS/SSH protocol to enhance network security
• Supports SMTP client
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention

Genel Bakış (Description)

ORing TGS-9200-M12-BP2 is a managed Gigabit Ethernet switch from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It features twenty 10/100/1000Base-T(X) ports and two bypass port sets that maintain network integrity during power loss or maintenance. The switch supports O-Ring (recovery time under 30ms over 250 units), O-Chain, ERPS v1/v2, MRP, and MSTP/RSTP/STP (IEEE 802.1s/w/D) redundancy protocols to protect mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration. The switch operates across a temperature range of −40°C to +75°C.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Leading EN50155-compliant Ethernet switch for rolling stock application
• Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allows multiple redundant network rings
• Supports standard IEC 62439-2 MRP (Media Redundancy Protocol) function
• Supports standard ITU-T G.8032 ERPS v1/v2 for Ethernet Redundancy
• Supports IEEE 1588v2 clock synchronization
• Supports IPV6 new internet protocol version
• Supports Modbus TCP protocol
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Provides HTTPS/SSH protocol to enhance network security
• Supports SMTP client
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports ACL, TACACS+ and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notification for warning of unexpected event
• Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Supports LLDP Protocol
• Provides 2xRelay bypass function with four gigabit ports
• Wall mounting enabled
