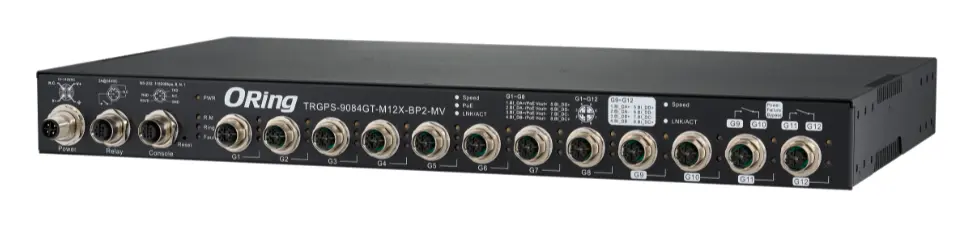

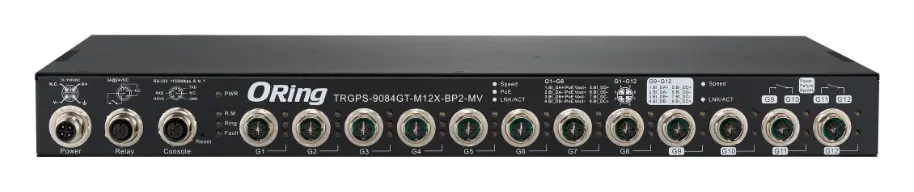

ORing TRGPS-9084GT-M12X-BP2-MV EN50155 Yönetilebilir PoE Switch ve 8GE PoE ve 4GE Bypass, M12 konnektör EN50155 Demiryolu PoE Switch

ORing TRGPS-9084GT-M12X-BP2-MV – EN50155 Managed PoE Switch with 8GE PoE and 4GE Bypass, M12 connector, IEEE 802.3af/at,110VDC. Bu ürün ORing Industrial Networking'in EN50155 Demiryolu PoE Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

• Güç Tüketimi (Tipik): 20 Watts (PoE output not include)
• Toplam PoE Çıkış Gücü: 60 watts Max.
• Kasa: IP-30, Iron
• MAC Adres Tablosu: 8K
• Jumbo Frame: Up to 9.6K Bytes
• Çalışma Sıcaklığı: -40 to 75℃ (-40 to 167℉)
• Garanti: 5 years
• MTBF: 298128 hrs.

Temel Özellikler (Features)

• Supports O-Ring (recovery time < 30ms over 250 units of connection) andMSTP (RSTP/STP compatible) for Ethernet O-Chain allow multiple redundant network rings
• VLAN unaware : Supports priority-tagged frames to be received by specific IEDs
• Provides HTTPS/SSH protocol to enhance network security
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Supports SMTP client and NTP server protocol
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports port mirror function to monitor port data
• Support ACL and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notification for warning of unexpected event
• Web-based ,Telnet, Console (CLI), and Windows utility ( Open-Vision ) configuration

Genel Bakış (Description)

ORing TRGPS-9084GT-M12X-BP2-MV is a managed Gigabit PoE Ethernet switch from ORing's Transporter™ series, fully compliant with the EN50155 standard for railway and transportation applications including rolling stock and in-vehicle networks. It features eight 10/100/1000Base-T(X) Power Sourcing Equipment (PSE) ports with PoE output up to 30W per port, four 10/100/1000Base-T(X) uplink ports, M12 industrial-grade connectors, and two bypass modules. The switch supports O-Ring redundancy protocol with recovery time under 30ms, and MSTP (RSTP/STP compatible), protecting mission-critical applications from network interruptions. Management options include ORing's Open-Vision network management software, web-based interface, Telnet, and CLI console configuration. The switch operates across a temperature range of −40°C to +75°C.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• Supports O-Ring (recovery time < 30ms over 250 units of connection) andMSTP (RSTP/STP compatible) for Ethernet O-Chain allow multiple redundant network rings
• VLAN unaware : Supports priority-tagged frames to be received by specific IEDs
• Provides HTTPS/SSH protocol to enhance network security
• Supports IEEE 802.3az Energy-Efficient Ethernet technology
• Supports SMTP client and NTP server protocol
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports port mirror function to monitor port data
• Support ACL and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notification for warning of unexpected event
• Web-based ,Telnet, Console (CLI), and Windows utility ( Open-Vision ) configuration
• Supports LLDP Protocol
• Supports DBU-01 backup unit device to quickly backup/restore configuration
• 19 inches rack mountable design
