Kablosuz Access Point Cloud-managed wall-plate APs

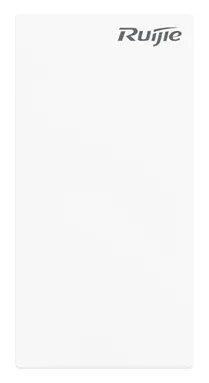

Ruijie RG-AP180P-L Wi-Fi 6 Çift Bant Duvar Tipi Access Point

ModelRG-AP180P-L

Ruijie RG-AP180P-L access point: Flat Rear Panel, Easy Installation on Any Wall in All Countries, 2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms, PoE Out for IP Phones and Other IoT Devices, 2.976 Gbps High Speed with 160 MHz Band, Ruijie cloud management, intelligent optimi.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Flat Rear Panel, Easy Installation on Any Wall in All Countries
2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms
PoE Out for IP Phones and Other IoT Devices
2.976 Gbps High Speed with 160 MHz Band
Ruijie cloud management, intelligent optimization

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 18 satır

Unit dimensions(W x H x D)	86 mm x 170 mm x 43 mm (3.39 in. × 6.69 in. × 1.69 in.)
Shipping dimensions; (W x H x D)	367 mm x 399 mm x 245 mm (14.45 in. × 15.71 in. × 9.65 in.)
Cihaz Ağırlığı	Main unit: 0.3 kg (0.66 lbs); Mounting bracket: 0.1 kg (0.22 lbs)
Kutulu Ağırlık	11.53 kg (25.42 lbs)
Montaj	Wall-mount (a mounting bracket is delivered with the main unit); Junction box-mount (86 mm/European-standard/American-standard junction box)
Renk	Elegant white
Lock option	Kensington lock
Radyo Tasarımı	Dual-radio and up to four spatial streams:; Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO
Çalışma Frekansları	Radio 1, 802.11b/g/n/ax:; 2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13; Radio 2, 802.11a/n/ac/ax:; 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48; 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64; 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140; 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165; Note: Available frequency bands may vary with countries or regions. To use the
Data rates	Combined peak data rate: 2.976 Gbps; Radio 1: 2.4 GHz, 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); Radio 2: 5 GHz, 2.402 Gbps; Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (max
Data rate set	The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160); 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Anten Tipi	Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Anten Kazancı	2.4 GHz: 5 dBi; 5 GHz: 5 dBi
Maks. Yayın Gücü	2.4 GHz radio: 20 dBm (17 dBm per chain); 5 GHz radio: 20 dBm (17 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm; 5725-58
Power increment	Configurable in increments of 1 dBm
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance 17 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS11
5 GHz, 802.11ax (HE160)	MCS0; MCS11

Bluetooth Radio 5 satır

Bluetooth	Bluetooth 5.1
Anten Tipi	Onboard omnidirectional antenna
Maks. Anten Kazancı	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maks. Yayın Gücü	10 dBm
Alıcı Hassasiyeti	–88 dBm (@BLE)

Ports Specifications 4 satır

Sabit Servis Portları	Uplink:; 1 x 100/1000/2.5GBASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+); When powered by 802.3af PoE, LAN 1 cannot supply power to an attached device.; Downlink:; 4 x 10/100/1000BASE-T ports; LAN 1 supports 48 V/10 W power supply to an attached device.
Sabit Yönetim Portu	1 x Micro USB console port
Status LED	1 x multi-color system status LED
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.

Güç Kaynağı ve Tüketim 3 satır

Input power supply	The AP supports the following two power supply modes:; 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.; PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).; Note:; When powered by 802.3at (PoE+), the AP operates with the optimal performance.; If both DC power and PoE are available, DC power is preferred.
PoE Portu	LAN 1 supports 48 V/10 W PoE output to an attached device.
Overall power consumption	Maximum power consumption: 25 W; DC powered: 25 W; PoE powered (802.3af): 15 W; PoE+ powered (802.3at): 25 W; Idle mode: 8 W

Ortam ve Güvenilirlik 3 satır

Sıcaklık	Operating temperature: 0°C to 40°C (32°F to +104°F); Storage temperature: –40°C to 70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 5% RH to 95% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Uyumluluk 4 satır

Security standards	IEC 62368-1; EN 62368-1
Cyber security standards	EN 18031-1; EN 18031-2
EMC Standartları	EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radio frequency standards	EN 300 328; EN 301 893; EN 300 440; EN IEC 62311; FCC Part 15

Yazılım Özellikleri 13 satır

Applicable software version	RGOS11.9(6)W3B3 or higher
Recommended maximum number of active devices per AP	120
Maximum number of associated clients	256; Note; The number of associated clients varies according to the environment.
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
STA management	SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment; ACL assignment based on time spans; ACL assignment (complete entry) based on MAC addresses; Execution of pre-configured ACLs (entry index) based on MAC addresses
CPP	Destekleniyor
NFPP	Destekleniyor

Routing and Switching 5 satır

IP Servisleri	Static IPv4 address and DHCP-assigned IPv4 address
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping; IPv6 DHCP Client
IP Yönlendirme	IPv4/IPv6 static routing
VPN	PPPoE client; IPsec VPN, up to four IPsec tunnels

Yönetim 4 satır

Ağ Yönetimi	Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client
Network management platform	Ruijie Cloud; Web-based management (Eweb)
STA access management	Console, Telnet, SSH, SNMP and TFTP-based management
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Temel Özellikler 8 satır

Wireless Protocols	802.11a/b/g/n/ac/ax
Veri Hızı	Combined peak data rate:2.4 GHz + 5 GHz, 2.976 Gbps
Maks. Güç Tüketimi	25 W
External Power Supply	Evet
Çalışma Sıcaklığı	0°C to +40°C (32°F to +104°F)
IP Koruma Sınıfı	-
Dimensions(W x H x D)	86 mm x 170 mm x 43 mm (3.39 in × 6.69 in × 1.69 in)
Garanti	3 Years

Genel bakış

Ruijie RG-AP180P-L kullanım alanları ve özellikleri.

High-density small-sized scenarios covering star hotels, enterprise VIP offices, and apartments

Wall Plate AP for All Countries

Ruijie Wall Plate Wireless AP RG-AP180P-L

Appearance

Scenario

Wi-Fi 6

AX3000

Universal Mounting Kit

PoE Out

Free Cloud Management

Flat Rear Panel, Easy Installation on Any Wall in All Countries

Innovative rear panel，Simple wall mounting

2.976 Gbps High Speed with 160 MHz Band

AX3000 chip, increasing data transmission volume 2.976 Gbps, smoother experiences

160MHz | 2.976 Gbps

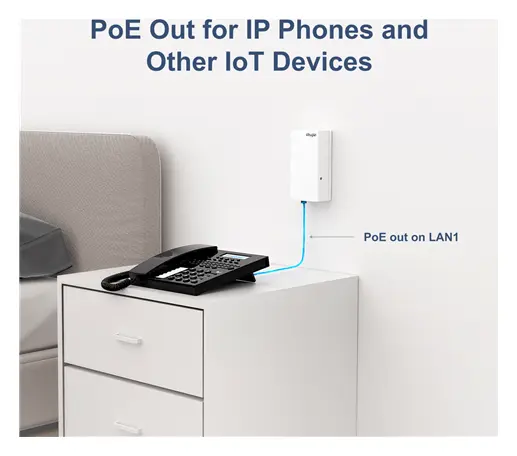

PoE Out for IP Phones and Other IoT Devices

PoE out on LAN1, one cable for data and power transmission Plug-and-play IP phones, no service interruption in a power failure

2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms

Soaring transmission rate, Superior Internet experience

Cloud, Make Your Business Easy

Cloud portal authentication
Remote Wi-Fi management
Wireless intelligent optimization

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP180P-L Compliance DocumentPDF · RG-AP180P-L

Sık sorulanlar

RG-AP180P-L hakkında kısa yanıtlar.

RG-AP180P-L fiyatı ne kadar?

RG-AP180P-L için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
