Kablosuz Access Point WaaS

Ruijie RG-SAP750-SP Wi-Fi 5 Çift Bant Tavan Tipi Access Point

ModelRG-SAP750-SP

Ruijie RG-SAP750-SP access point: Cost-effective high-speed at 1.167 Gbps, PoE and DC power supply, flexible deployment, WIS unified cloud management for easy O&M.

Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Cost-effective high-speed at 1.167 Gbps
PoE and DC power supply, flexible deployment
WIS unified cloud management for easy O&M

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

802.11n	Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM; Packet aggregation:; Aggregat
802.11ac	Two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 867 Mbps; Radio 2 – 5 GHz: 6.5 Mbps to 867 Mbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DFS); Cyclic Delay/Shift
Anten	Wi-Fi; 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 4.3 dBi.; 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.7 dBi.

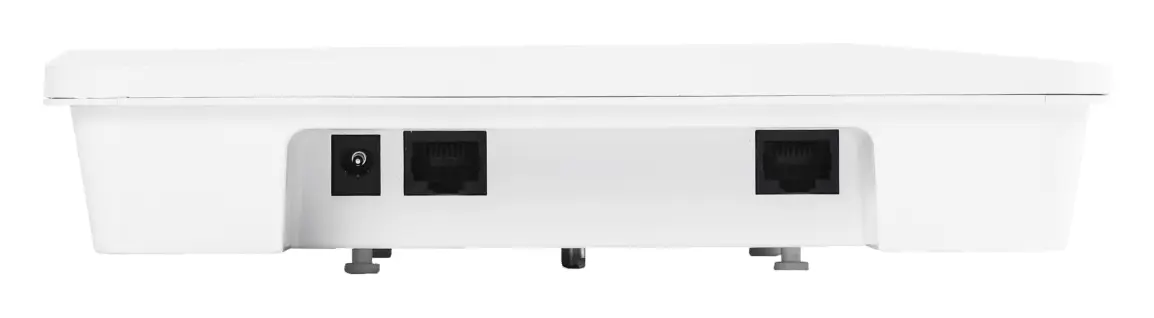

Port	1 x 10/100/1000BASE-T port; 1 x RJ45 console port (serial console port)
Status LED	1 x multi-color system status LED; AP power-on status; Software initialization status; Wireless user online status
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x D x Y)	Main unit: 194 mm x 194 mm x 37 mm (7.64 in. x 7.64 in. x 1.46 in.); Shipping: 460 mm x 360 mm x 242 mm (18.11 in. x 14.17 in. x 9.53 in.)
Ağırlık	Main unit: 0.42 kg (1.0 lbs); Mounting bracket: 0.07 kg (0.2 lbs); Shipping: 0.87 kg (2.0 lbs)
Montaj	Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
Lock option	Kensington lock and securing latch
Input power supply	The AP supports the following two power supply modes:; 12 V DC/1.5 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).; Note: If both DC power and PoE are available, DC power is preferred.
Maks. Güç Tüketimi	Maximum power consumption: 12.95 W; DC power: 12.95 W; 802.3af (PoE): 12.95 W; Idle mode: 6 W
Ortam Koşulları	Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: 0 m to 3,000 m (0 ft. to 9,842.52 ft.); Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	128 MB DRAM, 32 MB flash
Yayın Gücü	2.4 GHz; Maximum transmit power: 26 dBm (398.11 mW); 5 GHz; Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Radio Frequency Performance 11 satır

Frequency Band and Protocol	Data Rate
2.4 GHz 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz 802.11n (HT20)	MCS0; MCS7
2.4 GHz 802.11n (HT40)	MCS0; MCS7
5 GHz 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz 802.11n (HT20)	MCS0; MCS7
5 GHz 802.11n (HT40)	MCS0; MCS7
5 GHz 802.11ac (VHT20)	MCS0; MCS9
5 GHz 802.11ac (VHT40)	MCS0; MCS9
5 GHz 802.11ac (VHT80)	MCS0; MCS9

Basic Function 1 satır

Applicable software version	AP_RGOS 11.1(9)B1P37 or later

WLAN 11 satır

Maximum number of associated STAs	256; Radio 1: 2.4 GHz, up to 100 connected STAs; Radio 2: 5 GHz, up to 156 connected STAs
Practical maximum client count indication (per device)	75
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs	16; Maximum number of associated STAs per WLAN: 256
STA management	SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; CAPWAP through NAT; MTU setting and fragmentation over CAPWAP tunnels
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless locating	MU and TAG device locating

Security and Authentication 6 satır

Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK , web, 802.1x and MSCHAPv2 authentication; SMS-based and QR code-based guest authentication, and MAB authentication (used with RG-WS series wireless controller); Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	User isolation; Rogue AP detection and containment
ACL	IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; Time range-based ACL; Inbound ACL based on Layer 2 interfaces; Inbound ACL based on Layer 3 interfaces; Inbound ACL based on wireless interfaces; Dynamic ACL assignment based on 802.1X authentication (used with the AC)
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP)

Routing and Switching 9 satır

MAC	Static and filtered MAC addresses; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024
Ethernet	Jumbo frame length: 1,518; Ethernet II; IEEE802.1p and IEEE802.1Q
VLAN	Interface-based VLAN assignment; Maximum number of CVIs: 40; Maximum number of SVIs: 40; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094
ARP	ARP entry aging, proxy ARP, and IP address conflict detection between downlink users; Maximum number of ARP entries: 1,024; ARP check
IPv4 services	Static and DHCP-assigned IPv4 addresses; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG and DNS ALG
IPv6 services	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 tracert; Maximum number of IPv6 addresses configured on each Layer 3 interface: 16
IP Yönlendirme	IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast, Multicast-to-unicast conversion
VPN	PPPoE client

Network Management and Monitoring 4 satır

Ağ Yönetimi	SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging
Network management platform	Web management (Eweb)
User access management	Console, Telnet, SSH, FTP client, FTP server, and TFTP client
Switchover among Fat, Fit, and cloud modes	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud.

Intelligent O&M 6 satır

Experience	Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimization	Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions
Big data	Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history
Regional analysis	Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions
One-click report	One-click health report – generating a report on the overall operation of a network
Security radar	Unauthorized Wi-Fi signal location, presentation by category, and containment

Bulut Yönetimi 1 satır

Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation

Cloud Authentication 3 satır

Authentication mode	SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Customized portal	Customized Portal authentication page for mobile phones and PCs
SMS gateway	Interconnection with SMS gateways of GUODULINK and Alibaba Cloud

Platform Capabilities 3 satır

Big data capabilities	Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions
Hierarchy and decentralization	Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System management	Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions

Note: For details, refer to the latest hybrid cloud management solution. 1 satır

Uyumluluk	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, IEC 62368-1, EN 62368-1, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, and EN IEC 62311

Temel Özellikler 10 satır

Wireless Protocols	802.11a/b/g/n/ac
Radyo Tasarımı	Dual-radio: 2.4 GHz (2x2), 5GHz (2x2),up to 4 spatial streams
Veri Hızı	Combined peak data rate: 2.4 GHz + 5 GHz, 1.167 Gbps
Anten Tipi	Built-in omnidirectional antennas
Bluetooth	-
Maks. Güç Tüketimi	12.95 W
External Power Supply	Hayır
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F)
IP Koruma Sınıfı	-
Garanti	3 Years

Genel bakış

Ruijie RG-SAP750-SP kullanım alanları ve özellikleri.

Indoor network scenarios in the higher education, medical industry, government and commerce

WaaS Series Indoor Access Point RG-SAP750-SP

Cloud O&M

24/7 Network Optimization

Real-Time Warning

Fault Locating

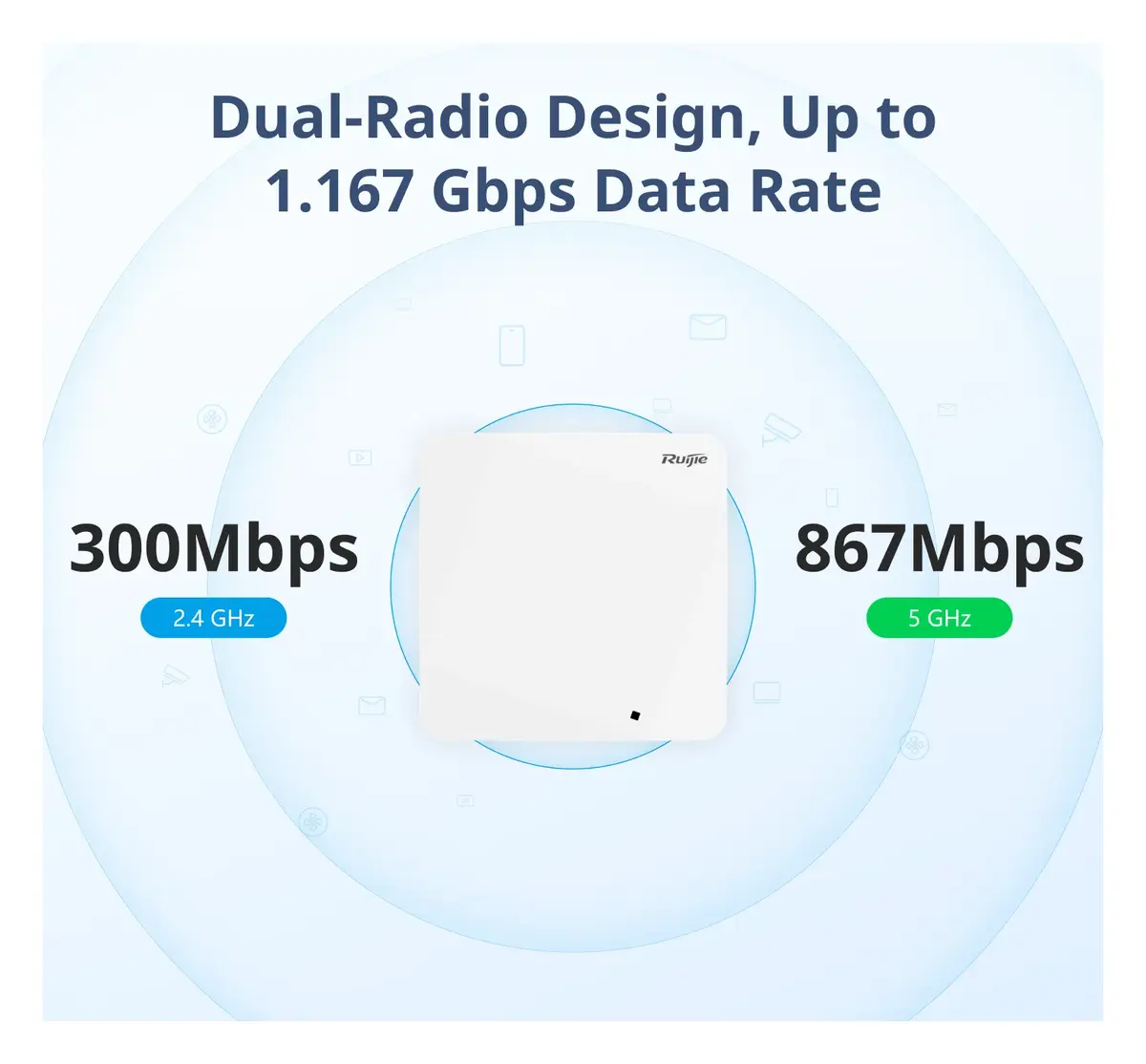

Dual-Radio Design, Up to 1.167 Gbps Data Rate

5 GHz signals provide stable and uninterrupted connection, while 2.4 GHz signals enable long-distance transmission, ensuring stable access for numerous wireless clients.

Built-in Smart Antennas, Superior Roaming Experience and Service Continuity

The built-in smart antennas can identify the directions of clients around the AP. Integrated with Ruijie's proprietary roaming algorithm, the AP also supports 802.11k/v/r protocols. Intelligent channel planning and accurate wireless positioning enable clients to associate with the optimal AP.

Automatic Provisioning, Simplified Deployment

Ruije's wireless controller delivers the configuration in batches, eliminating the need to pre-configure the AP before installation. This enables automatic provisioning and simplified deployment, reducing implementation and maintenance complexity.

Unified Cloud Management, Intelligent Optimization, Easy O&M

WIS Cloud enables network-wide configuration and optimization, eliminating the need for onsite operations. Remote O&M can be implemented on WiFi Moho. Network issue warnings allow wireless networks to be monitored anytime and anywhere.

Go to WIS Cloud >>

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-SAP750-SP Compliance DocumentsPDF · RG-SAP750-SP

Sık sorulanlar

RG-SAP750-SP hakkında kısa yanıtlar.

RG-SAP750-SP fiyatı ne kadar?

RG-SAP750-SP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
