RUIJIE · RG-SAP185-SP-W Ruijie RG-SAP185-SP-W Wi-Fi 6 Çift Bant Duvar Tipi Access Point

Ruijie RG-SAP185-SP-W Wi-Fi 6 Çift Bant Duvar Tipi Access Point

ModelRG-SAP185-SP-W

Ruijie RG-SAP185-SP-W access point: Upgraded to Wi-Fi 6, high-speed access at 2.976 Gbps, PoE and DC power supply, flexible deployment, WIS unified cloud management for easy O&M.

Kablosuz standart: Wi-Fi 6

Upgraded to Wi-Fi 6, high-speed access at 2.976 Gbps
PoE and DC power supply, flexible deployment
WIS unified cloud management for easy O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-SAP185-SP-W özellikleri ve kullanım alanları.

Indoor scenarios covering higher education, government, general education, finance, and commerce sectors

Ruijie WaaS Series Wall-Plate Access Point (86 mm Junction Box-Mount) RG-SAP185-SP-W

Ports

Scenarios

PoE Input

2.4 GHz/5 GHz Dual-Radio

Four Spatial Streams

Max Data Rate 2.976 Gbps

Max Power Consumption 8 W

Upgraded to Wi-Fi 6, Up to 2.976 Gbps Data Rate

High Speed

1024-QAM used in Wi-Fi 6, delivering a data rate of up to 2.976 Gbps

High Concurrency

OFDMA and MU-MIMO technologies, increasing the concurrent capacity to four times that of Wi-Fi 5 and ensuring stable connections for multiple clients

Low Latency

OFDMA and RRM2.0 technologies, reducing latency to 20 ms and enabling fast speed for playing mobile games and watching live videos

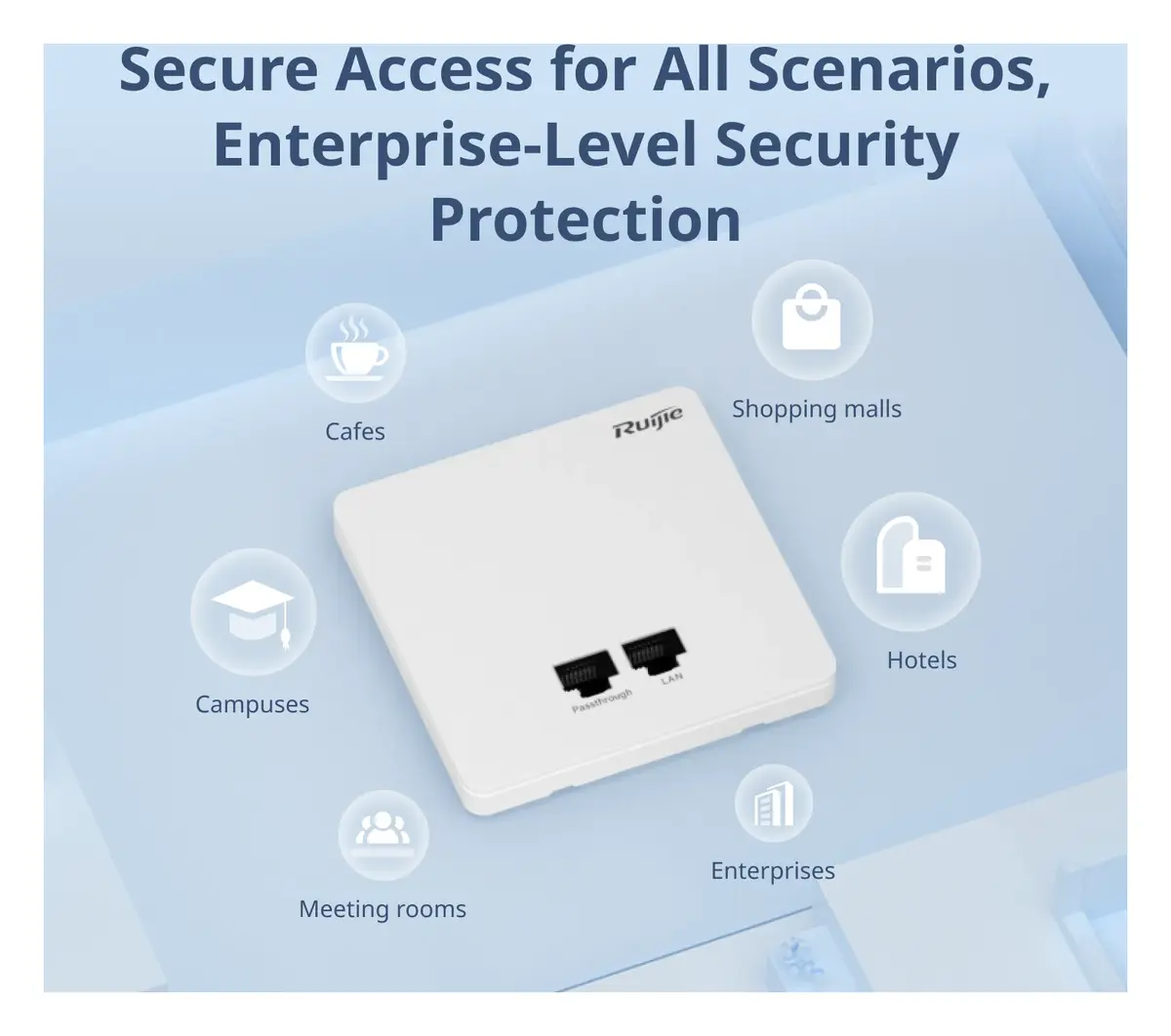

Secure Access for All Scenarios, Enterprise-Level Security Protection

Comprehensive Authentication

Security Protection

PSK, WPA, WPA2, and WAP Authentication

QR Code-based Guest Authentication

MAC address filtering

Rogue AP detection

Wireless intrusion detection

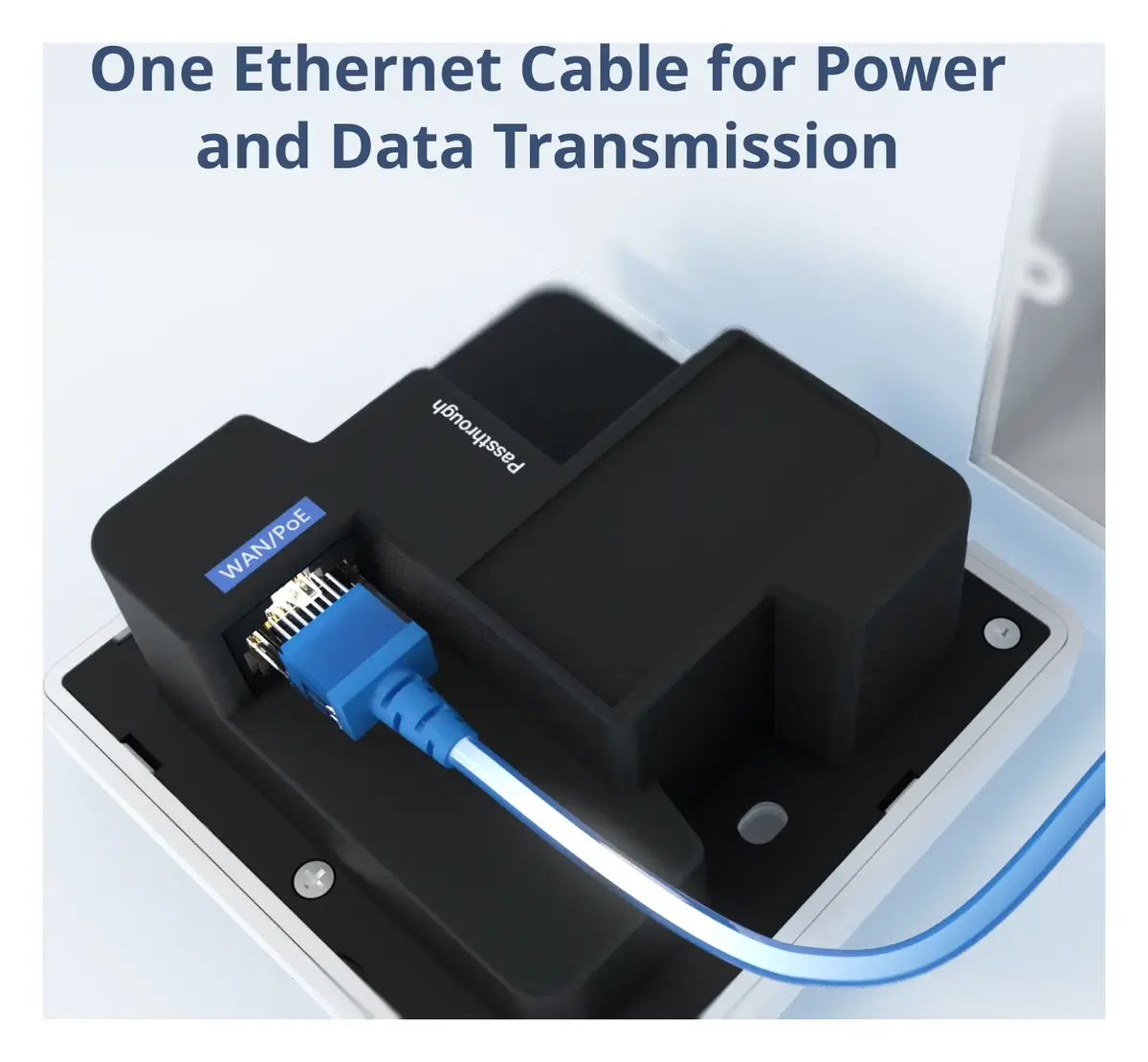

One Ethernet Cable for Power and Data Transmission

PoE input is adopted, eliminating the need for external power supply and high-voltage construction. This saves both time and effort during installation. The AP can be installed wherever the Ethernet cable is routed, enabling plug-and-play and convenient network connection.

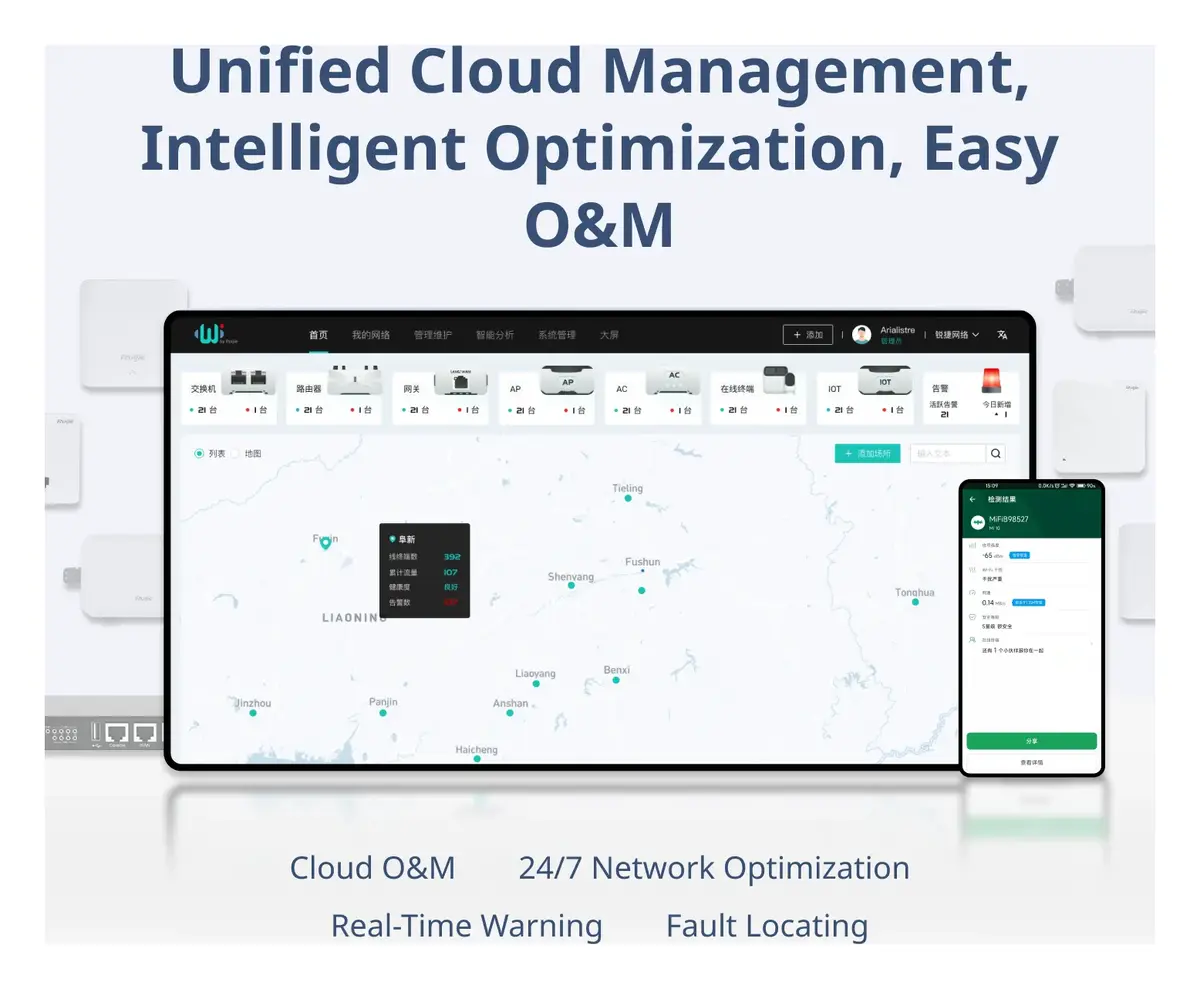

Unified Cloud Management, Intelligent Optimization, Easy O&M

WIS Cloud enables network-wide configuration and optimization, eliminating the need for on-site operations. Remote O&M can be implemented on WiFi Moho. Network issue warnings allows wireless networks to be monitored anytime and anywhere.

Go to WIS Cloud >>

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
802.11n	Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM; Packet aggregation:; Aggregate
802.11ac	Two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DFS); Cyclic Delay/Sh
802.11ax	Four spatial streams; Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz; Combined peak data rate: 2.976 Gbps:; Radio 1 – 2.4 GHz: 8.6 Mbps to 574 Mbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA
Anten	Wi-Fi; 2.4 GHz: two built-in smart antennas with the peak gain of 2 dBi; 5 GHz: two built-in smart antennas with the peak gain of 3 dBi
Port	Uplink:; 1 x 10/100/1000BASE-T port, compliant with IEEE 802.3af/at standard (PoE/PoE+); 1 x pass-through port; Downlink:; 1 x 10/100/1000BASE-T port
Status LED	1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; CAPWAP tunnel timeout
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x D x Y)	Main unit: 86 mm x 86 mm x 38 mm (3.39 in. x 3.39 in. x 1.50 in.); Shipping: 125 mm x 115 mm x 60 mm (4.93 in. x 4.53 in. x 2.37 in.)
Ağırlık	Main unit: 0.21 kg (0.47 lbs); Shipping: 0.24 kg (0.53 lbs)
Montaj	86 mm junction box-mount
Input power supply	PoE input over the WAN port: compliance with 802.3af/at (PoE/PoE+)
Maks. Güç Tüketimi	Maximum power consumption: 8 W; DC power: 8 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2.; 802.3af/at (PoE/PoE+) : 8 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2.; Idle mode: 5 W
Ortam Koşulları	Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 1,800–5,000 m (5,905.51–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the max
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	256 MB DRAM, 128 MB flash
Yayın Gücü	2.4 GHz; Maximum transmit power: 20 dBm (100 mW); 5 GHz; Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Radio Frequency Performance
Frequency Band and Protocol	Data Rate
2.4GHz 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4GHz 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4GHz 802.11n (HT20)	MCS0; MCS7
2.4GHz 802.11n (HT40)	MCS0; MCS7
2.4GHz 802.11ax (HE20)	MCS0; MCS11
2.4GHz 802.11ax (HE40)	MCS0; MCS11
5GHz 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5GHz 802.11n (HT20)	MCS0; MCS7
5GHz 802.11n (HT40)	MCS0; MCS7
5GHz 802.11ac (VHT20)	MCS0; MCS9
5GHz 802.11ac (VHT40)	MCS0; MCS9
5GHz 802.11ac (VHT80)	MCS0; MCS9
5GHz 802.11ax (HE20)	MCS0; MCS11
5GHz 802.11ax (HE40)	MCS0; MCS11
5GHz 802.11ax (HE80)	MCS0; MCS11

Basic Functions
Applicable software version	RGOS 11.9(6)W3B7 or later

WLAN
Maximum number of associated STAs	512 (up to 256 STAs per radio)
Maximum number of BSSIDs	16 (up to 8 BSSIDs per radio)
Maximum number of WLAN IDs	8
STA management	SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification technology; Intelligent load balancing based on the STA quantity or traffic; Rate set settings
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless locating	MU and TAG device locating

Security and Authentication
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	Wireless Intrusion Detection System(WIDS); User isolation; Rogue AP detection and containment
ACL	IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC)
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP)

Routing and Switching
MAC	Static and filtered MAC addresses; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024
Ethernet	Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q
VLAN	Interface-based VLAN assignment; Maximum number of SVIs: 100; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094
ARP	ARP entry aging and proxy ARP; Maximum number of ARP entries: 1,024; IP address conflict detection between downlink users
IPv4 services	Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG
IPv6 services	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client
IP Yönlendirme	IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast-to-unicast conversion
VPN	PPPoE client; IPsec VPN

Network Management and Monitoring
Ağ Yönetimi	NTP server and NTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging
Network management platform	Web management (Eweb)
User access management	Telnet and TFTP management
Switchover among Fat, Fit, and cloud modes	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud.

Intelligent O&M
Experience	Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimization	Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions
Big data	Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history
Regional analysis	Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions
One-click report	One-click health report – generating a report on the overall operation of a network
Security radar	Unauthorized Wi-Fi signal location, presentation by category, and containment

Bulut Yönetimi
Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation

Cloud Authentication
Authentication mode	SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Customized portal	Customized Portal authentication page for mobile phones and PCs
SMS gateway	Interconnection with SMS gateways of GUODULINK and Alibaba Cloud

Platform Capabilities
Hierarchy and decentralization	Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System management	Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions

Uyumluluk
Uyumluluk	EN 55032, EN 55035, EN IEC 62368-1, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, and EN IEC 62311

Temel Özellikler
Wireless Protocols	802.11a/b/g/n/ac/ax
Radyo Tasarımı	Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2),up to 4 spatial streams
Veri Hızı	Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps
Anten Tipi	Built-in smart antennas
Bluetooth	-
Maks. Güç Tüketimi	8 W
External Power Supply	Hayır
Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
IP Koruma Sınıfı	-
Garanti	3 Years

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-SAP185-SP-W hakkında kısa yanıtlar.

RG-SAP185-SP-W fiyatı ne kadar?

RG-SAP185-SP-W için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
