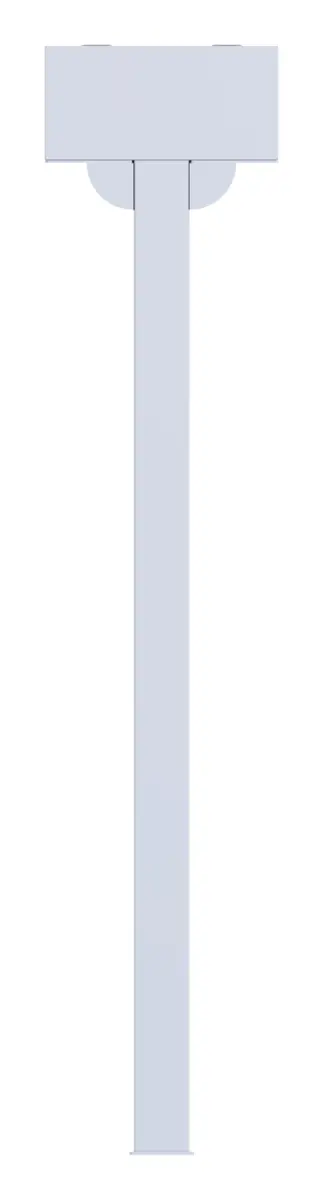

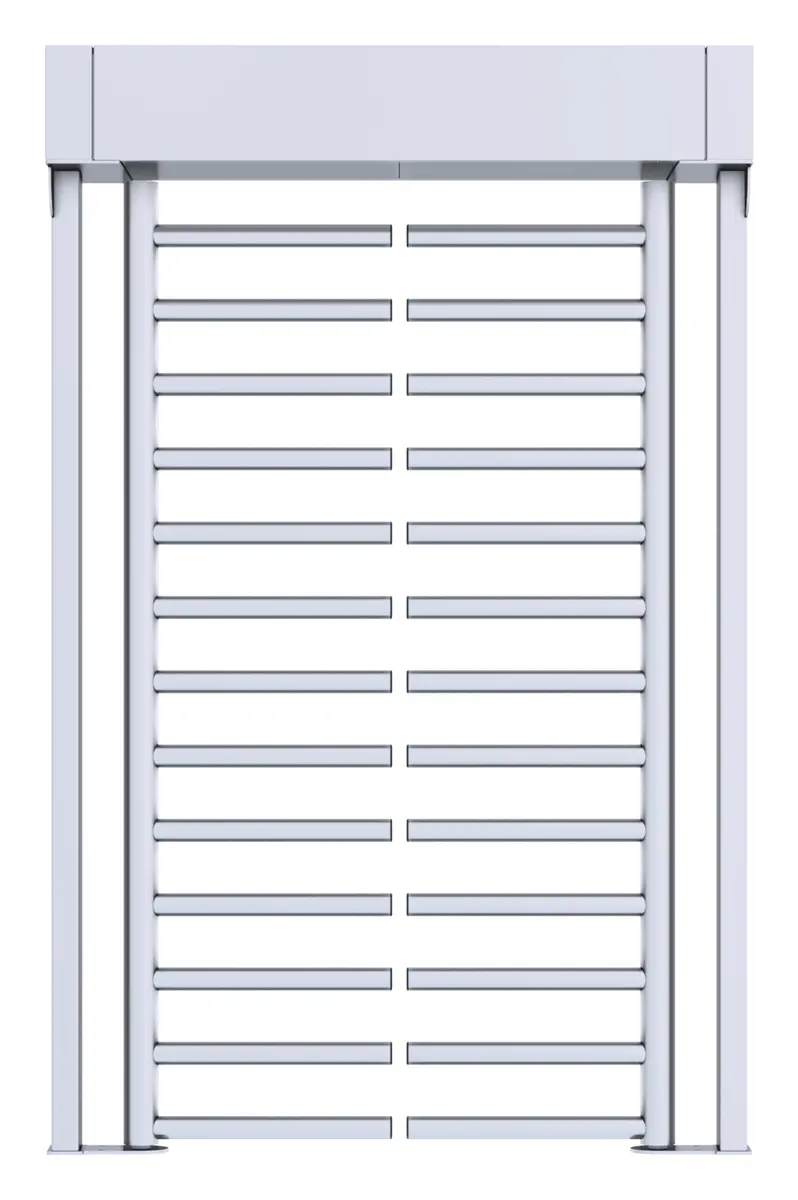

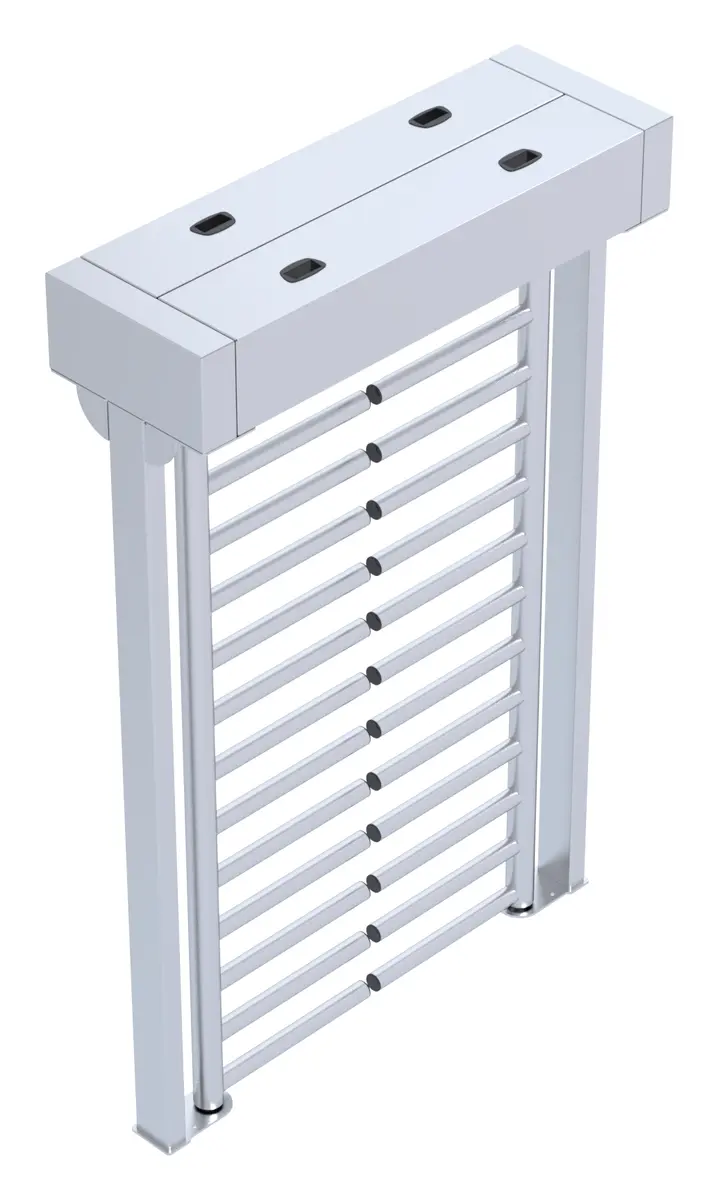

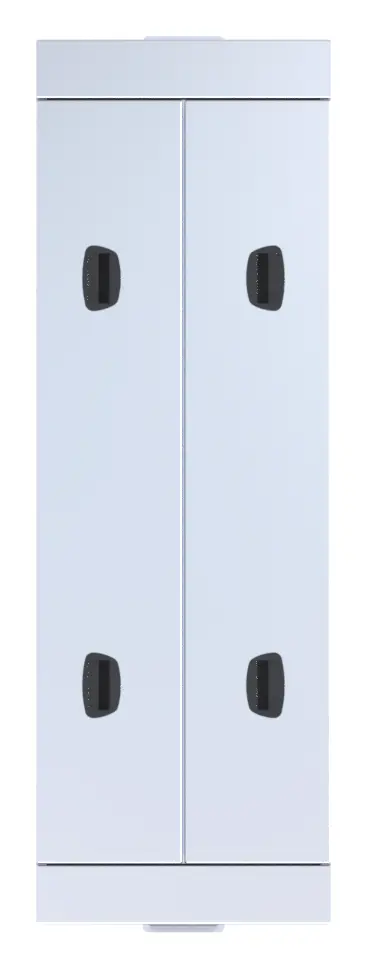

Tansa MS 102 Boy Turnike

Nerelerde kullanılır?

Fabrika, okul, stadyum ve ofis girişlerinde kartlı, şifreli veya yüz tanımalı geçiş sistemleriyle entegre çalışarak tek tek ve kontrollü geçiş sağlar.

Tüm özellikler

• Elektromechanic / Hand operated
• BLDC Motor-driven
• A self centring mechanism to ensure complete rotation of the mechanism to the home position.
• A hydraulic damper to ensure smooth operation
• Anti backup device to prevent reverse rotation once the mechanism has moved 30 degrees from the home position
• Logic controlled interface, bi-directional operation
• Entrance and exit directions can be individually set as controlled, locked or free before or after the installation.
• In controlled access mode, after release confirmation which was sent by access control system, the turnstile unlocks the released direction and enables one person access in the direction of travel. After each person, the
• After the release, the turnstile blocks itself after an adjusted time if no transition or passage occures.
• If people from both directions would like to pass through simultaneously, the first person who activates the turnstile takes precedense.
• Multiple opening: An additional person is able to to release the next passage cycle during an ongoing passage cycle in both directions. The turnstile controller
• stores up to 255 releases and lets corresponding number of individuals pass through.
• Relay outputs for counting passage in either direction
• RS 232 serial port
• Control for inputs and outputs via potential-free contact
• Portal and housing made of steel
• Portal turnstile, four-part rotor blade with spars, 90° division
• As standard with 13 rod-shaped crossbars with plastic caps on each section of the rotor. Arm diameter 51mm
• Rotor with 13 rod-shaped bars made of steel
• Limitation of passage: with steel filler rods
• Unidirectional or bidirectional operation
• Completely assembled or disassembled delivery as a kit for easier transport or for places that are difficult to access.
• Lockable maintenance lid with top and side opening for easy maintenance and installation in areas with low ceilings.
• In addition to the turnstile: Motorized or manually operated pedestrian door in full height (bi-directional)
