Aruba

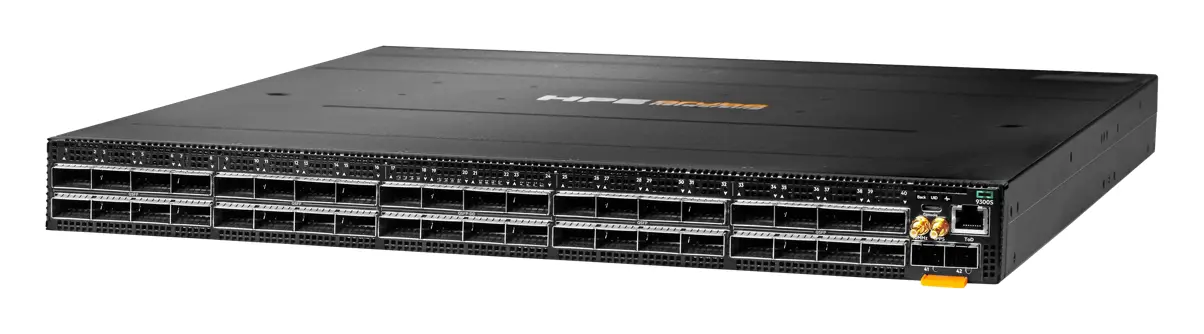

Aruba S0F82A CX9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC PSU Veri Merkezi Switch

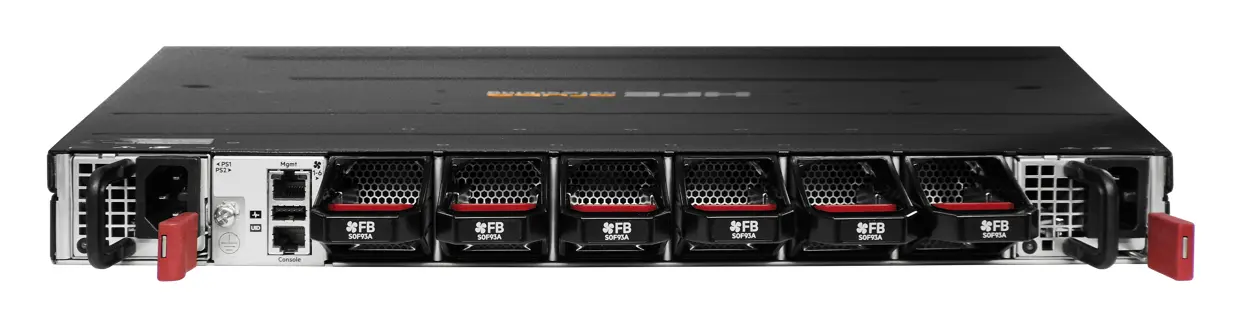

Aruba S0F82A CX9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC PSU Veri Merkezi Switch — görsel 2
1 / 2
Yönetilebilir Switch CX 9300

Aruba S0F82A CX9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC PSU Veri Merkezi Switch

ModelS0F82A

Aruba S0F82A, 32 portlu bir yönetilebilir switch'tir. Öne çıkan özellikleri: the switch series provides high performance switching up to 25.6 tbps in a 1u fixed configuration supporting 32 ports of 100/400gbe, dynamic vxlan with bgp-evpn for deep segmentation in data center and campus networks, the cx 9300s 32p qsfp28 100g 8p qsfp-dd 400g back-to-front and front-to-back bundles along with new compatible transceivers and power supply options, hpe aruba networking cx 9300 switch series is based on aos-cx, a modern, database-driven operating system that automates and simplifies many critical and...

PoE
PoE yok
Port sayısı
32 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
  • Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
  • The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
  • HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
  • HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-toend visibility of the network fabric underlay and virtualized overlay.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır
Ürün Adı (Üretici)HPE Networking CX9300S 32p QSFP28 100G 8p QSFP-DD 400G Front-to-Back 6xFan 2xAC PSU Switch Bundle
Teknik Özellikler 11 satır
Model FarkıCX 9300S 32-port front-toback AC bundle
Güç TüketimiIdle: 185W Maximum: 920W Typical: 395W
Giriş Gerilimi100–127 VAC 50/60 Hz 12A 200–240 VAC 50/60 Hz 10A 200–240 V required to support > 5 W transceiver power in any port
Portlar32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Yönlendirme/Anahtarlama Kapasitesi8.0 Tbps
Anahtarlama Fabric Hızı8.0 Tbps
Bellek ve İşlemci128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
Çalışma Sıcaklığı32°F to 113°F (0°C to 45°C) at sea level
Yönetim ÖzellikleriSNMP, RJ-45 console port, Micro USB console port
GarantiLimited lifetime warranty.
Fanlar6 redundant fans, field-replaceable, hot-swappable
Seri Özellikleri 4 satır
Isı Yayılımı4,435 BTU/hr maximum
Anahtarlama KapasitesiCX 9300-32D: 25.6 Tbps CX 9300S-32C8D: 16 Tbps
Veri Hızı5 Bpps
Güç Kaynağı2 redundant power supplies, field-replaceable, hot-swappable

Genel bakış

Aruba S0F82A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as it transitions server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX 9300-32D switch supports large data center PODS of up to 16834 x 25GbE servers or up to 8192 x 100GbE servers when using 4 x 100G SN transceivers.

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.

  • The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
  • Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
  • The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
  • HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
  • HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-toend visibility of the network fabric underlay and virtualized overlay.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 9300 Switch SeriesPDF · S0F82A

Sık sorulanlar

S0F82A hakkında kısa yanıtlar.

S0F82A kaç portlu?
S0F82A 32 porta sahiptir.
S0F82A fiyatı ne kadar?
S0F82A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
