Aruba

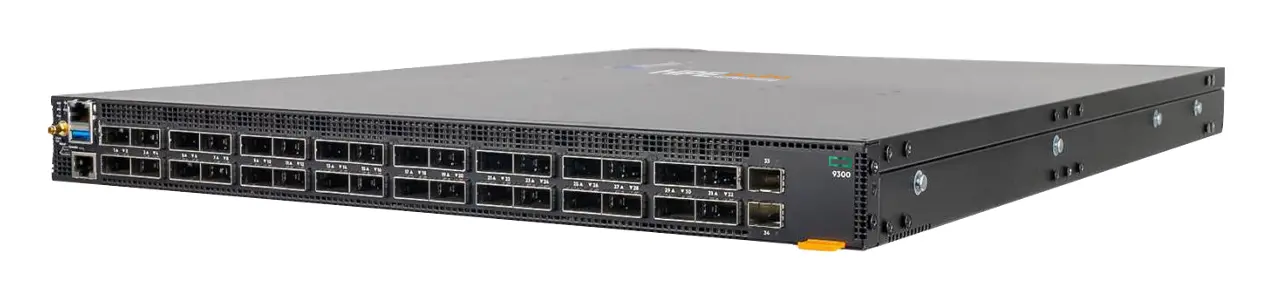

Aruba S1D07A CX9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6xFan 2xAC PSU Veri Merkezi Switch

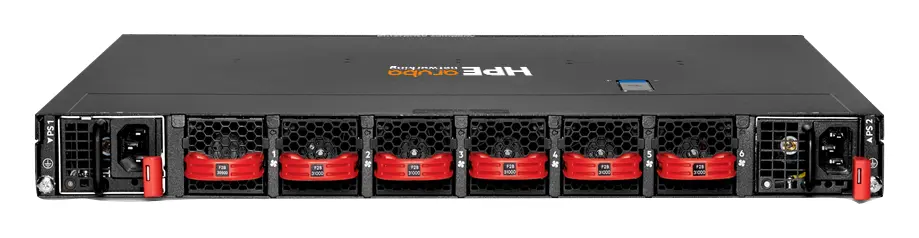

Aruba S1D07A CX9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6xFan 2xAC PSU Veri Merkezi Switch — görsel 2
1 / 2
Yönetilebilir Switch CX 9300

Aruba S1D07A CX9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6xFan 2xAC PSU Veri Merkezi Switch

ModelS1D07A

Aruba S1D07A, 32 portlu bir yönetilebilir switch'tir. 2 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı
10G uplink
PoE
PoE yok
Port sayısı
32 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
  • Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
  • The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
  • HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
  • HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-toend visibility of the network fabric underlay and virtualized overlay.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır
Ürün Adı (Üretici)HPE Networking CX9300-32D 32xQSFP-DD 400G 2xSFP+10G Prt2Pwr Airflow 6xFan 2xAC PSU Switch Bundle
Teknik Özellikler 10 satır
Güç Tüketimi600W or 615W, Idle: 210W or 221W maximum depending on the model
Giriş GerilimiCX 9300-32D: 100-127 / 220-240 VAC 220-240 V required to support 8-32 port production configuration CX 9300S-32C8D: 100–127 VAC 50/60 Hz 12A 200–240 VAC 50/60 Hz 10A 200–240 V required to support > 5W transceiver power in any port
PortlarCX 9300-32D: 32 ports of 100GbE, 200GbE, or 400GbE 400 Gbps ports can be configured as 4 x 100GbE, 2 x 200GbE, or 1 x 400GbE CX 9300S-32C8D: 32 ports of 10/25/100/200GbE, 8 ports of 400GbE Flexibility to support 10/25/100/200GbE on the access ports
Anahtarlama KapasitesiCX 9300-32D: 25.6 Tbps CX 9300S-32C8D: 16 Tbps
Bellek ve İşlemciCX 9300-32D: 128 GB m.2 SSD, 4 GB mSATA, 128 MB SPI Flash, 16 GB x2 SODIMM CX 9300S-32C8D: 128 GB m.2 SSD, 16 MB SPI Flash, 32 GB x2 SODIMM
Güç Kaynağı2 redundant power supplies, field-replaceable, hot-swappable
Çalışma Sıcaklığı32°F to 113°F (0°C to 45°C) maximum depending on the model
Yönetim ÖzellikleriCX 9300-32D: SNMP REST RJ-45 serial Micro USB console port RJ-45 OOBM Port CX 9300S-32C8D: SNMP REST RJ-45 and USB-C serial console connectors RJ-45 OOBM Port
GarantiLimited lifetime warranty.
Fanlar6 redundant fans, field-replaceable, hot-swappable
Seri Özellikleri 2 satır
Isı Yayılımı4,435 BTU/hr maximum
Veri Hızı5 Bpps

Genel bakış

Aruba S1D07A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 9300 Switch Series provides 25.6 Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as it transitions server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. The CX 9300-32D switch supports large data center PODS of up to 16834 x 25GbE servers or up to 8192 x 100GbE servers when using 4 x 100G SN transceivers.

The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large-scale virtualized and cloud networks. Provides flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links, 100GbE ports can breakout to four 25GbE ports linking one switch port and accommodating up to four adapter cards in servers or other subsystems.

  • The switch series provides high performance switching up to 25.6 Tbps in a 1U fixed configuration supporting 32 ports of 100/400GbE
  • Dynamic VXLAN with BGP-EVPN for deep segmentation in data center and campus networks
  • The CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G back-to-front and front-to-back bundles along with new compatible transceivers and power supply options
  • HPE Aruba Networking CX 9300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks
  • HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-toend visibility of the network fabric underlay and virtualized overlay.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF-Lite, and IPv6

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 9300 Switch SeriesPDF · S1D07A

Sık sorulanlar

S1D07A hakkında kısa yanıtlar.

S1D07A kaç portlu?
S1D07A 32 porta sahiptir ve 2 adet SFP uplink portu bulunur.
S1D07A fiyatı ne kadar?
S1D07A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
