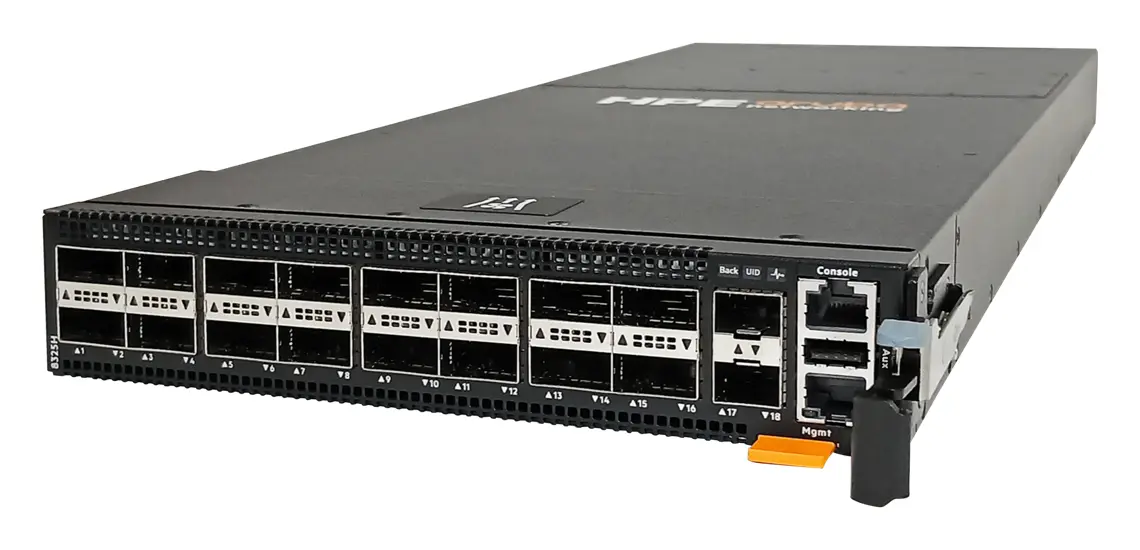

Aruba S4B23A CX8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU Veri Merkezi Switch

ModelS4B23A

Aruba S4B23A bir yönetilebilir switch'tir. 10 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı: 10G uplink
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. Highavailability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations:; 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE; 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX8325H 16p QSFP28 40G/100G Back-to-Front 4xFan 2xPSU Switch

Teknik Özellikler 13 satır

Güç Tüketimi	Maximum: 500 W, 1705 BTU/hr Idle: 114 W, 389 BTU/h
Isı Yayılımı	1705 BTU/hr
Giriş Gerilimi	100–240 AC
Portlar	(16) 100G QSFP28 ports and (2) 10 SFP+ ports
Anahtarlama Kapasitesi	4 Tbps
İstifleme (Stack)	These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).
Veri Hızı	2000 Mpps
Bellek ve İşlemci	CPU: AMD® x86 8-core processor Memory: 32 GB, 120 GB SSD Packet Buffer: 32 MB
Güç Kaynağı	Fixed
Çalışma Sıcaklığı	0°C to 45°C (32F-113F)* (F2B); 0°C to 40°C (32F-104F)* (B2F) at sea level Derate 1°C for every 1,000 ft to 10,000 ft (300 m to 3.0 km)
Yönetim Özellikleri	Industry-standard CLI with a hierarchical structure; SNMP v2c/v3; sFlow (RFC 3176); Remote monitoring (RMON); Precision Time Protocol (PTP Class C (G.8275.1/.2)
Garanti	Limited lifetime warranty.
Fanlar	4 fixed fans (N+1)

Genel bakış

Aruba S4B23A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This gamechanging solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned controlplane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor.

The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are

high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

The HPE Aruba Networking CX 8325 Switch Series is a campus core and aggregation switch and data center (ToR) solution with an innovative and powerful approach to dealing with the cross-domain demands of the mobile, cloud, and IoT era.

High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. Highavailability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations:; 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE; 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 8325 Switch SeriesPDF · S4B23A

Sık sorulanlar

S4B23A hakkında kısa yanıtlar.

S4B23A fiyatı ne kadar?

S4B23A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
