Cisco C1131-8PLTEPW ISR 1000 8 Port GE LAN 4G LTE Wi-Fi 5G Router

ModelC1131-8PLTEPW

Cisco C1131-8PLTEPW router: 8 Port GE LAN, 4G LTE, Wi-Fi, 5G.

Port sayısı: 8 port
Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

8 Port GE LAN
4G LTE
Wi-Fi
5G

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 37 satır

Boyutlar (Y x G x D)	1.65 x 12.70 x 8.90 in.
Ağırlık	5.68 lb. (2.58 kg)
Maximum power consumption (excluding external PS loss)	31W
External power supply	AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz; Output voltage: 12 VDC; Maximum output power: 66W; Requires 150W power supply for optional PoE and PoE+; PoE output voltage of -53.5 VDC
Operating conditions	Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C; Altitude: 0 to 10,000 ft (0 to 3048 m); Humidity: 10% to 85% relative humidity (noncondensing)
Nonoperating conditions	Temperature: -40° to +70°C (-40° to +158°F) Altitude: 0 to 15,000 ft (0 to 4572 m); Humidity: 5% to 95% relative humidity (noncondensing)
Wi-Fi domains	A, B, E, K, Q, or Z
Minimum supported version (XE SD-WAN)	17.7.1
WAN GE	2
WAN DSL	No
WAN 5G	Yes
WAN LTE	Yes
LAN 802.11ax	Yes
LAN GE	8
SD-WAN IPsec Throughput (512B)	Up to 650 Mbps
SD-WAN Profile: IPsec + QoS + Deep Packet Inspection + Flexible Netflow (512B)	Up to 250 Mbps
SD-WAN Overlay Tunnels scale	200
IPv4 Forwarding Throughput (512B)	Up to 1800 Mbps
IPsec Throughput (512B)	Up to 600 Mbps
DRAM/flash	4 GB/8 GB
Number of IPsec SVTI Tunnels	100
Number of ACLs per system	4K
Number of IPv4 ACEs per system	10K
Number of IPv4 routes	280K
Number of IPv6 routes	260K
Number of NAT sessions	100K
Number of firewall sessions	20K
Number of VRFs	1K
Boyutlar (H x W x D)	C1121: 1.65 x 10.80 x 7.85 in.; C112x: 1.65 x 12.70 x 8.90 in.
802.11ac (Wi-Fi 5)	802.11ax
Inline PoE	802.3af-compliant PoE, 802.3at-compliant PoE+.
Standard safety certifications	UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, UL 62368-1, CSA 62368-1, EN 62368-1, IEC 62368-1
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1
EMC immunity	EN55024/CISPR24, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN300-386
Radio immunity	EN 301 489-1, EN 301 489-7, EN 301 489-24
Cellular radio	EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, EN 301 908 -13
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)	PHY data rates up to 1.488 Gbps (80 MHz on 5 GHz and 20 MHz on 2.4 GHz)

Genel bakış

Cisco C1131-8PLTEPW kullanım alanları ve özellikleri.

Cisco C1131-8PLTEPW, ISR 1000 ailesinden şube ve kurumsal ağlar için router platformudur.

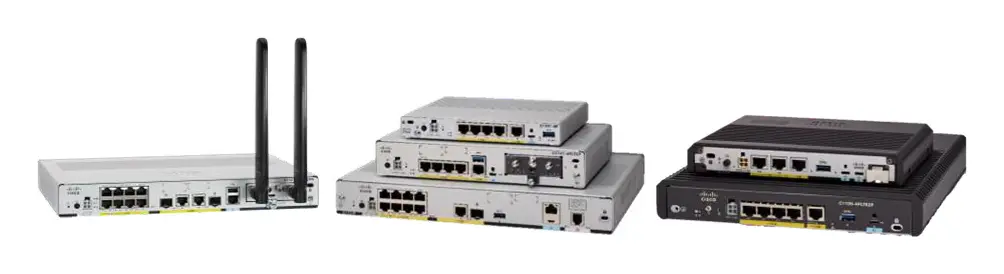

The Cisco ® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS ® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.

● Industry-leading hardware coupled with feature-rich software combine to make high-performance small-office routers. Up to 800 Mbps IMIX encrypted throughput.

Öne Çıkan Özellikler

8 Port GE LAN
4G LTE
Wi-Fi
5G

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

ISR 1000 Datasheet (EN)PDF · C1131-8PLTEPW ISR 1000 Datasheet (PDF)PDF · C1131-8PLTEPW

Sık sorulanlar

C1131-8PLTEPW hakkında kısa yanıtlar.

C1131-8PLTEPW fiyatı ne kadar?

C1131-8PLTEPW için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
