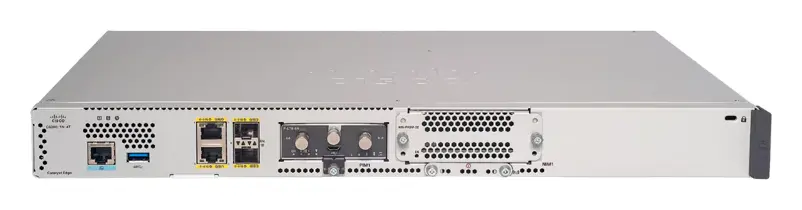

Cisco C8200-1N-4T Catalyst 8200 SD-WAN Router
Model
C8200-1N-4TCisco C8200-1N-4T router: C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports, Multicore processors, Embedded IPsec VPN hardware acceleration, Integrated Gigabit Ethernet ports, DRAM.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
- Power supply
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 47 satır
| 1G Port Yoğunluğu | 4 |
|---|---|
| Modül Yuvaları | 1 NIM; 1 PIM |
| Bellek (DRAM, varsayılan) | 8 GB |
| Depolama (M.2 SSD, varsayılan) | 16 GB |
| SD-WAN IPsec Throughput (1400Bytes) | Up to 1Gbps |
| SD-WAN IPsec Throughput with IQDF (1400Bytes) | Up to 1Gbps |
| SD-WAN IPsec Throughput (IMIX) | 900Mbps |
| SD-WAN IPsec Throughput with IQDF (IMIX) | 850Mbps |
| SD-WAN Overlay Tunnels scale | 2500 |
| 50% IQDF + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) | 950Mbps |
| DIA w. NAT + NGFW + IPS + URLF + AMP | 980Mbps |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 3.8Gbps |
| IPsec Throughput (1400Bytes) | Up to 1Gbps |
| IPsec Throughput (IMIX) | 900Mbps |
| Number of IPsec SVTI Tunnels | 2500 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 8K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
| Number of Firewall Sessions | 512K |
| Number of VRFs | 4000 |
| Minimum Yazılım Sürümü | Cisco IOS XE Software Release 17.4.1 |
| Boyutlar (Y x G x D) | 1.73 x 17.25 x 11.8 in. (4.39 x 43.81 x 29.97 cm) |
| Rack Yüksekliği (RU) | 1RU |
| Kasa Ağırlığı | 10 lb (4.54 kg) |
| Giriş Gerilimi | AC: 90 to 264 VAC |
| Çalışma Sıcaklığı | 32° to 104°F; (0° to 40°C) |
| Depolama Sıcaklığı | -40° to 150°F; (-40° to 70°C) |
| Acoustics, both models: Sound pressure (Typical/maximum) | 54 dBA/69 dBA |
| Acoustics, both models: Sound power (Typical/maximum) | 68 dBA/80 dBA |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 85%; Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Rakım | 0 to 10,000 feet; (0 to 3050 meters) |
| MTBF (Arızalar Arası Ortalama Süre) | 692,577 hours |
| Güvenlik Sertifikaları | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC/EN 60825 Laser Safety; FDA: Code of Federal Regulations Laser Safety |
| EMC (emissions) | 47 CFR Part 15 Class A; ICES 003 Class A; AS/NZS CISPR 32 Class A; CISPR 32 Class A; EN55032 Class A; VCCI-CISPR 32 Class A; CNS-13438 Class A; KN32 Class A; IEC/EN 61000-3-2: Power Line Harmonics; IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| EMC (immunity) | IEC/EN-61000-4-2: Electrostatic Discharge Immunity; IEC/EN-61000-4-3: Radiated Immunity; IEC/EN-61000-4-4: Electrical Fast Transient Immunity; IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports; IEC/EN-61000-4-6: Immunity to Conducted Disturbances; IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity; IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations; KN35 |
| EMC (ETSI/EN) | EN300 386: Telecommunications Network Equipment (EMC); EN55032: Multimedia Equipment (Emissions); EN55024: Information Technology Equipment (Immunity); EN55035: Multimedia Equipment (Immunity); EN61000-6-1: Generic Immunity Standard |
| Cisco ThousandEyes | ThousandEyes is supported with a minimum 8 GB DRAM and 8 GB bootflash/storage. Additional memory and storage will be necessary for concurrently running the ThousandEyes agent with containerized SD-WAN security services. |
| Protokoller | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Route Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), … |
| Encapsulations | Generic Routing Encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) |
| Traffic management | QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), and Network-Based Application Recognition NBAR |
| Cryptographic algorithms | Encryption: Data Encryption Standard (DES), 3DES, Advanced Encryption Standard (AES)-128 or AES-256 (in Cipher Block Chaining [CBC] and Galois/Counter Mode [GCM]); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
| Unified communications | Call Admission Control (CAC), Cisco Unified Boarder Element(CUBE) Session Border Controller(SBC), Cisco Unified Communications Manager Express (CUCME), (ISDN), RADIUS, RFC 4040-based clear channel codec signaling with Session Initiation Protocol (SIP), Resource Reservation Protocol (RSVP), RTP Control Protocol (RTCP), SIP for voice over IP (VoIP), Survivable Remote Site Telephony (SRST), Secure … |
| Core features | IPv4, IPv6, static routes, OSPF, EIGRP, BGP, Overlay Management Protocol (OMP), Application Aware Routing (AAR), Traffic Engineering, service insertion, zero trust, whitelisting, tamper-proof module, DTLS/TLS, IPsec, classification, prioritization, low latency queuing, remarking, shaping, scheduling, policing, mirroring, Multicast IPv4 support, service advertisement and insertion policy, Simple … |
| Application experience | QoS, FEC, Class of Service (CoS) marking, Weighted Random Early Detection (WRED), Hierarchical QoS, PBR, NBAR, SD-AVC, per-tunnel QoS, Cloud OnRamp for SaaS, Enhanced Office 365 traffic steering, direct access, FNF |
Sipariş Bilgileri 2 satır
| Ürün Tanımı (Üretici) | C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports |
|---|---|
| Planlanan Satış Sonu (End-of-Sale) Tarihi | 31.07.2027 |
Genel bakış
Cisco C8200-1N-4T kullanım alanları ve özellikleri.
Cisco C8200-1N-4T, Catalyst 8200 ailesinden şube ve kurumsal ağlar için güvenli SD-WAN destekli router platformudur.
The Cisco Catalyst 8200 Series Edge Platforms are 5G-ready cloud edge platforms designed for Secure Access Service Edge (SASE), multilayer security, and cloud-native agility to accelerate your journey to cloud.
The Cisco ® Catalyst ® 8200 Series Edge Platforms with Cisco IOS ® XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN and SD-Routing solutions to the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale in both SD-WAN and SD-Routing deployments to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats.
Öne Çıkan Özellikler
- C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
- Power supply
- Modularity and form factor
- Integrated security
- Dedicated management for netops and secops
Tüm özellikler
- C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
- Power supply
- Modularity and form factor
- Integrated security
- Dedicated management for netops and secops
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
C8200-1N-4T hakkında kısa yanıtlar.
C8200-1N-4T fiyatı ne kadar?
C8200-1N-4T için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, C8200-1N-4T için fiyat ve teslim süresini iletelim.
