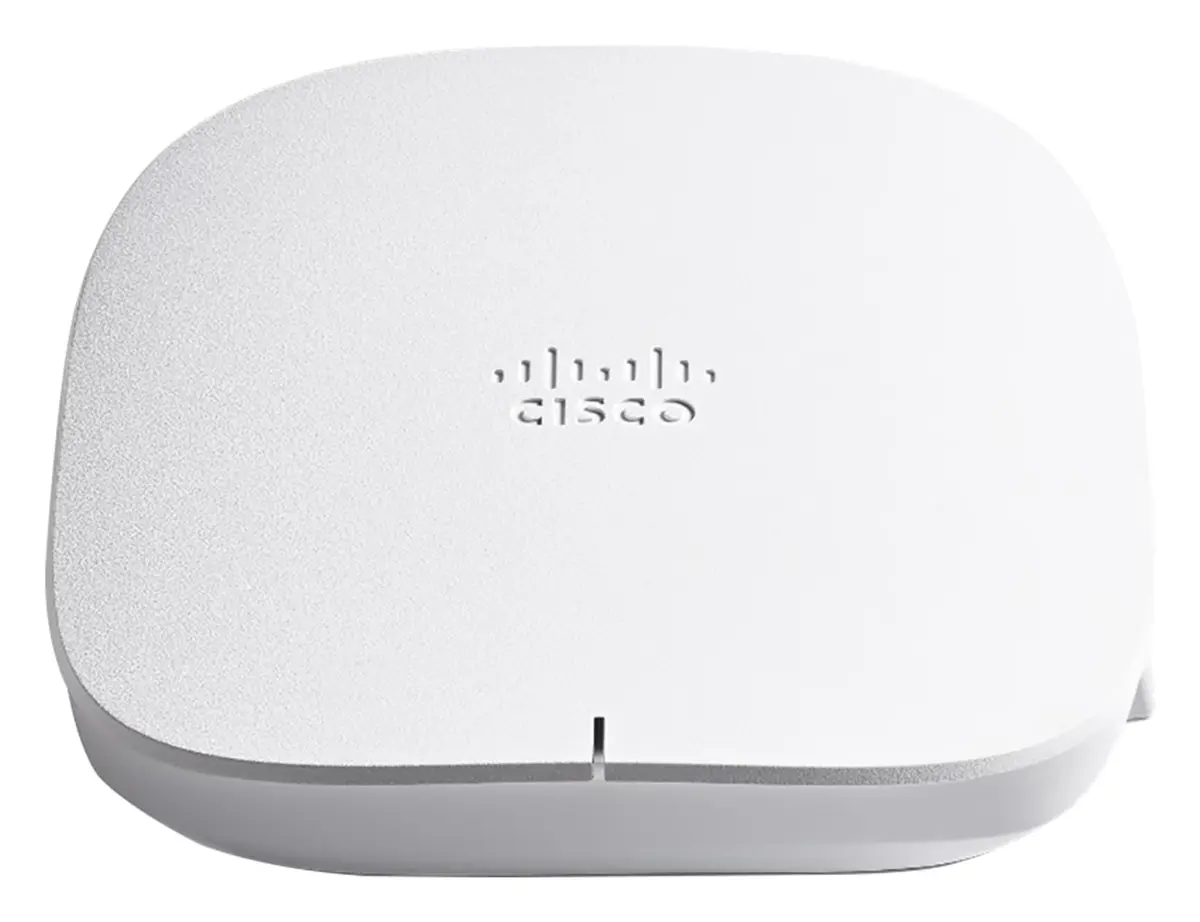

Cisco CBW150AX Wi-Fi 6 İç Ortam Access Point

ModelCBW150AX

Cisco CBW150AX access point: Wi-Fi 6 standardı, Kullanım: İç Ortam, Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted, Wi-Fi 6 (802.11ax), Uplink/downlink OFDMA.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: İç Ortam
Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU-MIMO technology
Simplified management
Mesh technology support

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 2 satır

Sipariş Kodları (PID)	CBW150AX-A-NA, CBW150AX-B-NA, CBW150AX-E-EU, CBW150AX-E-UK, CBW150AX-Z-AU, CBW150AX-Q-JP, CBW150AX-A-EU, CBW150AX-F-EU, CBW150AX-D-IN, CBW150AX-H-CN, CBW150AX-K-KR, CBW150AX-K-UK, CBW150AX-S-UK, CBW150AX-C-UK, CBW150AX-T-TW
Ürün Tanımı (Üretici)	Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted

Teknik Özellikler 20 satır

Maks. İstemci Sayısı	Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
Maximum # of Access Points	50; Recommended up to 25
802.11ax (Wi-Fi 6/6E)	2x2 downlink MU-MIMO with two spatial streams; Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80- channels; PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA3 support
802.11ac (Wi-Fi 5)	2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz; 20-, 40-, and 80-MHz channels; Dynamic Frequency Selection (DFS)
Ethernet ports	Authentication with 802.1X or MAC filtered; Dynamic VLAN or per port; Traffic locally switched or tunneled back to Master AP
Dahili Anten	2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth; 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth
Arayüzler	1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
Boyutlar (W x L x H)	Access point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm)
Ağırlık	Access point without mounting bracket or any other accessories: 11.6 oz (330 g)
Ortam Koşulları	Operating; Temperature: 32° to 104°F (0° to 40°C); Humidity: 0% to 95% (noncondensing); Maximum altitude: 9843 ft (3000 m) at 40°C; Nonoperating (storage and transportation); Temperature: –22° to 158°F (-30° to 70°C); Humidity: 0% to 95% (noncondensing); Maximum altitude: 15,000 ft (4570 m) at 25°C
Güç Tüketimi	9.2W (maximum, on PoE)
Mounting and physical security	Included with the access point: Mounting bracket and hardware
Authentication and security	Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication; 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA); Segmentation via VLANs (up to 16); 802.11r and 802.11i; Guest network can also authenticate against a Social Login account: Google and Facebook
Max # of Mesh Extenders	Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
Management Compatibility	A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity.; CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points.; CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher.
Desteklenen Veri Hızları	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
System	1 GB DRAM, 512MB flash; 1GHz quad core processor
Besleme Seçenekleri	Use the Cisco Business passive PoE injector (included with select country-specific models); or; 802.3af/at Ethernet switch; a Cisco Business Switch with PoE is recommended (CBS220/250/350 series); or Cisco Business PoE injector (CB-PWRINJ-XX)
Compliance	Safety: UL 60950-1; CAN/CSA-C22.2 No. 60950-1; IEC 60950-1; EN 60950-1; IEC 62368-1; EN 62368-1; UL/CUL 62368-1; Radio approvals: FCC Part 15.247, 15.407; RSS-247; EN 300328, EN 301893; EN 50385; ARIB-STD 66; ARIB-STD T71; EMC; EMI and susceptibility (Class B); FCC Part 15B; ICES-003; VCCI(Japan); EN 301489-1 and -17; EN 55032, EN55035; IEEE standards: IEEE 802.3; IEEE 802.3ab; IEEE 802.3af/at; …

Genel bakış

Cisco CBW150AX kullanım alanları ve özellikleri.

Cisco CBW150AX, Cisco Business Wireless 150AX serisinden Wi-Fi 6 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Business 150AX Access Point delivers industry-leading wireless performance with support for the latest Wi-Fi 6 standard, IEEE’s 802.11ax (Figure 1). It also meets the growing flexibility of wireless networks by introducing mesh technology which enables scalable expansion of the network where network cabling may not exist—all while delivering a simple user experience, deployable with the Cisco Business Mobile app or the integrated WebUI.

The 150AX access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated Wi-Fi 6 capabilities, while being backwards compatible with the previous 802.11ac Wave 1 or Wave 2 standards.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU-MIMO technology
Simplified management
Mesh technology support
Bluetooth 5
Flexible deployment
Optional Cloud-based Security

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU-MIMO technology
Simplified management
Mesh technology support
Bluetooth 5
Flexible deployment
Optional Cloud-based Security

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Business Wireless 150AX Datasheet (EN)PDF · CBW150AX Cisco Business Wireless 150AX Datasheet (PDF)PDF · CBW150AX
