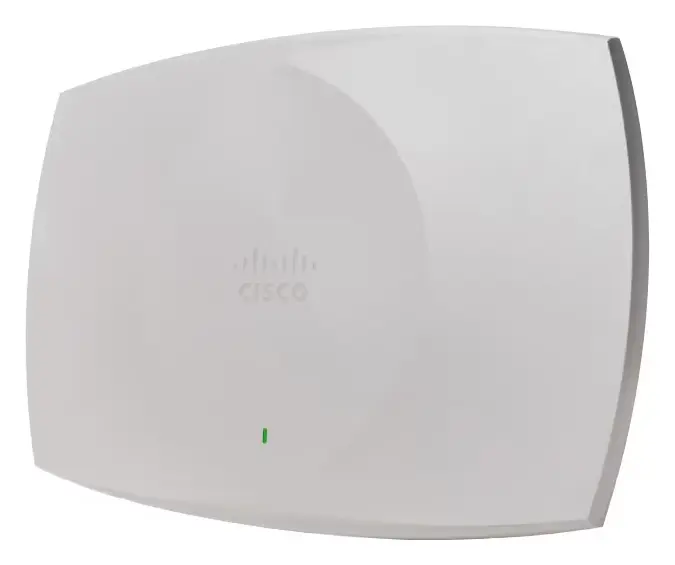

Cisco CW9179F Wi-Fi 7 Dış Ortam Access Point

ModelCW9179F

Cisco CW9179F access point: Wi-Fi 7 standardı, Kullanım: Dış Ortam, CW9179F access point.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 7 standardı
Kullanım: Dış Ortam
CW9179F access point

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 22 satır

Desteklenen Kablosuz Kontrolcüler	Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode
802.11be (Wi-Fi 7)	4x4 + 4x4 uplink/downlink MU-MIMO with 4 spatial streams each (5 GHz); 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz); 4096 QAM; Multilink operation; Preamble puncturing; Uplink/downlink OFDMA; TWT; BSS coloring; Maximal Ratio Combining (MRC); 20-, 40-, 80-, 160- and 320-MHz channels (6 GHz); 20-, 40-, 80-, and 160-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data …
802.11ax (Wi-Fi 6/6E)	4x4 + 4x4 uplink/downlink MU-MIMO with four spatial streams each (5 GHz); 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz); Uplink/downlink OFDMA 1024 QAM; TWT; BSS coloring MRC; 802.11ax beamforming; 20, 40, 80, and 160 MHz channels (5 and 6 GHz); 20 MHz channels (2.4 GHz); PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 4x4 + 4x4 80 MHz on 5 GHz, and 4x4 20 MHz on 2.4 …
802.11ac (Wi-Fi 5)	4x4 + 4x4 downlink MU-MIMO with 4x4 spatial streams; MRC; 802.11ac beamforming; 20, 40, 80, and 160 MHz channels; PHY data rates up to 3.4 Gbps (dual 4x4 160 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support WPA2/WPA3 support
802.11n Özellikleri	4x4 MIMO with four spatial streams MRC; 802.11n and 802.11a/g beamforming 20- and 40-MHz channels; PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support
Arayüzler	2x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45); Management console port (RJ-45) with default speed of 115200 bps
LED Göstergeleri	Front and back status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Boyutlar (W x L x H)	Access point (without mounting brackets): 18.7Wx 13.0Lx 2.9H in. (475mm x 330mm x 73mm)
Ağırlık	AP Weight: 10.0 lb (4.54 kg); Bracket Weight: 3.8 lbs (1.72 kg)
Input power requirements	802.3bt Cisco Universal PoE (Cisco UPOE®), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (only for configuring staging, all radios off); (Or) Cisco Power Injector – CW-INJ-8
Güç Tüketimi	Note: Actual power consumption may vary depending on AP usage. Typical power consumption assumes AP is passing traffic* during typical business hours, and is idle during off- business hours. Business hours are assumed to be 11 hours a day, 6 days a week.; Test Conditions: 802.3bt (UPoE): Dual 5 GHz and 6GHz band operating at 160 MHz (4x4) passing 400 Mbps per band of download traffic and the 2.4 …
Ortam Koşulları	Nonoperating (storage) temperature: -4° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 77°F (25˚C ) at 17,000 ft (5182 m); Operating temperature: -4° to 140°F (-20° to 60°C) not including solar load.; Operating temperature: -4° to 122°F (-20° to 50°C) including solar load.; Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 104°F (40˚C) at 9843 ft (3000 m); …
Available transmit power settings	2.4 GHz; 17 dBm (50 mW); -10 dBm (0.1mW)
Compliance standards	Safety: IEC 60950-1 / IEC 62368-1 Ed.3 (with Ed.2 Deviation annex); EN 60950-1 / EN 62368-1 Ed.3 (with Ed.2 Deviation annex); UL 60950-1 / UL62368-1 3rd (with Ed.2 Deviation annex); CAN/CSA-C22.2 No. 60950-1 / CAN/CSA-C22.2 No. 62368-1 3rd (with Ed.2 Deviation annex); AS/NZS60950.1 / AS/NZS62368.1 Ed.3 (with Ed.2 Deviation annex); UL 2043; Class III equipment; Emissions: CISPR 32 (rev. 2015) …
Sertifikalar	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
TAC support	Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco product. This support does not include solution or network level support beyond the specific device under consideration.
Devices covered	Applies to Cisco Wireless CW9179F access points.
Warranty duration	As long as the original customer owns the product.
End-of-Life Policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
Cisco.com access	Warranty allows guest access only to Cisco.com.

Sipariş Bilgileri 1 satır

Ürün Tanımı (Üretici)	CW9179F access point

Genel bakış

Cisco CW9179F kullanım alanları ve özellikleri.

Cisco CW9179F, Cisco Wireless 9179F serisinden Wi-Fi 7 dış ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Wireless CW9179F is the industry’s first enterprise-grade, Wi-Fi 7 certified high-density access point, made specifically for connecting large public venues. Connect every corner with this convertible indoor-outdoor unit, suitable for stadiums, arenas, festivals, airports, and anywhere where your audience needs reliable and high-performing connectivity. The CW9179F packs a lot of flexibility in an all-in-one integrated unit with software configurable beam patterns and coverage where you need it.

The industry’s first enterprise grade Wi-Fi 7 large public venue access point is designed to connect every corner, with the high-density wireless coverage your users demand and flexibility in deployment, management, and licensing.

Öne Çıkan Özellikler

Wi-Fi 7 standardı
Kullanım: Dış Ortam
CW9179F access point

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Wireless 9179F Datasheet (EN)PDF · CW9179F Cisco Wireless 9179F Datasheet (PDF)PDF · CW9179F

Sık sorulanlar

CW9179F hakkında kısa yanıtlar.

CW9179F fiyatı ne kadar?

CW9179F için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
