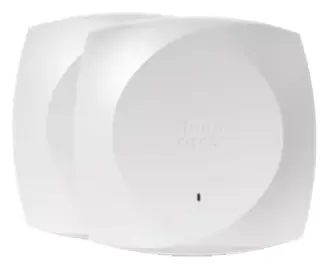

Cisco CW9178I Wi-Fi 7 İç Ortam Access Point

ModelCW9178I

Cisco CW9178I access point: Wi-Fi 7 standardı, Kullanım: İç Ortam, Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Dual 10G Multigigabit Ethernet.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
Dual 10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 31 satır

802.11be (Wi-Fi 7)	4x4 + 4x4 uplink/downlink MU-MIMO with 4 spatial streams each (5 GHz); 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz); 4096 QAM; Multilink operation; Preamble puncturing; Uplink/downlink OFDMA; TWT; BSS coloring; Maximal Ratio Combining (MRC); 20-, 40-, 80-, 160- and 320-MHz channels (6 GHz); 20-, 40-, 80-, and 160-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data …
802.11ax (Wi-Fi 6/6E)	4x4 + 4x4 uplink/downlink MU-MIMO with four spatial streams each (5 GHz); 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz); Uplink/downlink OFDMA; 1024 QAM; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (5 and 6 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 4x4 + 4x4 80 MHz on 5 GHz, and 4x4 20 MHz …
802.11ac (Wi-Fi 5)	4x4 + 4x4 downlink MU-MIMO with 4x4 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.4 Gbps (dual 4x4 160 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA2/WPA3 support
802.11n Özellikleri	4x4 MIMO with four spatial streams; MRC; 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support
Dahili Anten	2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth; IoT: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth; UWB: Peak gain 7 dBi, internal antenna, omnidirectional in azimuth; GNSS: (L1) Peak gain 5 dBi, (L5) Peak gain 2 dBi, …
Arayüzler	2x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45); Management console port (RJ-45) with default speed of 115200 bps; USB 2.0 at 9W
Boyutlar (W x L x H)	Access point (without mounting brackets): 9.9 x 9.9 x 2.0 in. (25.1 x 25.1 x 5.1 cm)
Ağırlık	4.1 lb. (1.87 kg)
Input power requirements	802.3bt Cisco Universal PoE (Cisco UPOE; ), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (only for configuring staging, all radios off); (Or) Cisco Power Injector – CW-INJ-8
Güç Tüketimi	Note: Actual power consumption may vary depending on AP usage. Typical power consumption assumes AP is passing traffic during typical business hours, and is idle during off-business hours. Business hours are assumed to be 11 hours a day, 6 days a week.; Test Conditions: 802.3bt: The 6 GHz, 5 GHz high-band and 5 GHz low-band all operating at 160 MHz (4x4) passing 1 Gbps per band of download …
Ortam Koşulları	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4570 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m); Note: When the ambient operating temperature exceeds 40˚C (104˚F), the access point will shift from 4x4 …
Sertifikalar	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Desteklenen Kablosuz Kontrolcüler	Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	Tri-radio mode (Default): 2.4 GHz 802.11 b/g/n/ax/be client access radio; 5 GHz 802.11 a/n/ac/ax/be client access radio; 6 GHz 802.11 ax/be client access radio; Quad-radio mode: 2.4 GHz 802.11 b/g/n/ax/be client access radio; 5 GHz 802.11 a/n/ac/ax/be client access radio (UNII-1 & 2 bands); 5 GHz 802.11 a/n/ac/ax/be client access radio (UNII-2E & 3 bands); 6 GHz 802.11 ax/be client access radio; …
Anten	2.4-GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5-GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: (XOR) Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6-GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS coloring; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams; SU-MIMO, UL MU-MIMO, and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz channels (802.11n); 20, 40 and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax); Note: 40MHz channels are supported only in the 5GHz band.; Up to …
802.11be Capabilities	Up to 4096-QAM on 2.4 GHz, 5 GHz and 6 GHz bands; 20 MHz channels on 2.4 GHz bands; 20, 40, 80, 160 MHz on 5 GHz bands; 20, 40, 80, 160, 320 MHz on 6 GHz bands; MLO (Multi-link operation) across different bands; MRU (Multiple Resource Unit) allocation in OFDMA; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
Güç	Power over Ethernet: 802.3bt/ 802.3at/ 802.3af; Power reservation: 60W max (802.3bt required for full operation); Power over Ethernet injector sold separately; Note: Actual power consumption may vary depending on access point usage. It is recommended that you ensure that Link Layer Discovery Protocol (LLDP)/Cisco Discovery Protocol is enabled to allow proper power negotiation.; Recommended Power …
Montaj	All standard mounting hardware included; Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
Environment	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4570 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m); Humidity:10% to 90% non-condensing
Boyutlar	9.9x9.9x2.0 inches (25x25x5.1 cm); Weight: 4.1 lb (1.87 kg)
GPS	Built-in GPS/ GNSS
Physical Security	Kensington lock slot
Reliability	Mean time between failure (MTBF): 942,282 hrs at +25°C operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); EAP Local authentication - …
Quality of Service	Advanced power save (U-APSD); WMM access categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, and 802.11r for fast layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global layer 7 traffic analytics reporting per network, per device, and per application
LED Göstergeleri	1 power/booting/firmware upgrade status; 1 link state, 1 Tx/ Rx LED ethernet port
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.3 ab/bz; 802.3 af/at/bt; 802.11a/b/g/n/ac/ax/be; 802.11d/h/i/k/r/u/v/w
Safety Approvals	CSA and CB 60950 & 62368; EN 60601 certified; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	FCC Part 15C; 15E RSS-247 (Canada); EN 300 328 ( v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (Australia/NZ); NOM-121 (Mexico); NCC LP0002 (Taiwan); For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	FCC Part 2 RSS-102 (Canada); EN 50385; EN 6231; EN 62479 (Europe); AS/NZS 2772 (Australia/NZ)

Genel bakış

Cisco CW9178I kullanım alanları ve özellikleri.

Cisco CW9178I, Cisco Wireless 9178 serisinden Wi-Fi 7 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

Cisco Wireless Wi-Fi 7 access points create wireless networks for the AI enterprise, bridging the gap between physical and digital experiences.

Cisco's Wi-Fi 7 access points power the next generation of wireless experiences, designed to revolutionize connectivity and digital experiences. Offering unprecedented speeds, enhanced security, and resilient connectivity, these products are ideal for high-density environments and critical applications. They seamlessly integrate into your existing network, whether on-premises, cloud-based, or hybrid, providing flexible deployment options to suit various organizational needs.

Öne Çıkan Özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
Dual 10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)
Band steering
Intelligent Capture
Flexible Radio Assignment (FRA) with quad-radio mode
Bluetooth/BLE

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
Dual 10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)
Band steering
Intelligent Capture
Flexible Radio Assignment (FRA) with quad-radio mode
Bluetooth/BLE
Application hosting
Container support for applications
Accelerometer

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Wireless 9178 Datasheet (EN)PDF · CW9178I Cisco Wireless 9178 Datasheet (EN)PDF · CW9178I

Sık sorulanlar

CW9178I hakkında kısa yanıtlar.

CW9178I fiyatı ne kadar?

CW9178I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
