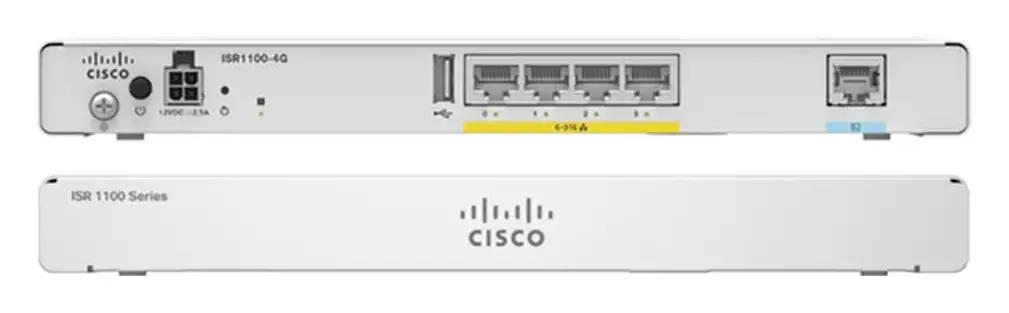

Cisco ISR1100-4GLTENA ISR 1100 4 Port GE LAN 4G LTE Router

ModelISR1100-4GLTENA

Cisco ISR1100-4GLTENA router: 4 Port GE LAN, 4G LTE, Lightweight, compact size with low power consumption, High performance to run concurrent services, High availability and business continuity.

Port sayısı: 4 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

4 Port GE LAN
4G LTE
Lightweight, compact size with low power consumption
High performance to run concurrent services
High availability and business continuity
Consistent, high application performance levels
Risk mitigation with multilevel security
Remote configuration and management to keep local IT staff lean

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 32 satır

Bellek	4GB DRAM
WAN GE (Copper)	4
WAN LTE (CAT4)	Yes
LAN GE (Copper)	4
Integrated USB 3.0 AUX/console	Yes
Bands	LTE: B2, B4, B5, B12, B13, B14, B17, B66; FDD LTE 1900 MHz (band 2), 1700 MHz (band 4), 850 MHz (band 5), 700 MHz (band 12, 13, 14, 17), 1700MHz (band 66); UMTS: B2, B4, B5
Theoretical download/upload speeds	150 Mbps/50 Mbps – LTE (CAT4)
Latin America	Dependent upon specific operators supporting the LTE bands listed above.
External power supply	Product power specifications: External Adapter: 30W 341-100891-01; AC input voltage: Universal 100 to 240 VAC; Frequency: 50 to 60 Hz; Maximum output power: 30W; Output voltage: +12VDC for system power
Physical dimensions (W x D x H)	ISR 1100 and ISR1100X Series - 10.2 x 7 x 1.1 in (259 x 178 x 28 mm)
Ağırlık	ISR 1100X-4G,ISR1100X-6G,ISR1100-4G,ISR1100-6G – 2.67 lbs (1.21 kg); ISR 1100-4GLTENA, ISR1100-4GLTEGB – 2.69 lbs (1.22 kg)
Standard safety certifications	UL 60950-1, second edition; CAN/CSA C22.2 No. 60950-1, second edition; EN 60950-1, second edition; CB to IEC 60950-1, second edition with all group differences and national deviations; AS/NZS 60950.1:2011; IEC-62368 (CB and UL/CSA); NOM-019-SCFI-1998; GB4943
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1
EMC immunity	EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386
Environmental operating range	Operating temperature: 0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m); Operating altitude: Maximum 10,000 ft (3000 m) with 1°C derating per 1000 ft; Operating humidity: 0 to 95% relative humidity noncondensing
Important LTE features	1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz RF bandwidth; WCDMA fallback; Last resort circuit; SIM based carrier firmware selection (Verizon, AT&T, Generic)
SIM support	Single Micro (3FF) SIM card socket
Wireless technologies supported	Cisco LTE Advanced 3.0 LTE (Refer to Table 9: LTE Bands Supported); Backward compatibility: UMTS and HSPA+.
Antennae	Two multiband swivel-mount dipole antennas (LTE-ANTM-SMA-D). One antenna included with the device.; For –N antenna and cable installation guidance, view the; Connected Grid Antennas Installation Guide.
Cisco IP Service-Level Agreements(IP SLAs)	App-aware routing based on SLAs and performance parameter polling
Protokoller	Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), eBGP, iBGP, BGP Router Reflector, static, connected, OMP, 802.1Q, native VLAN, bridge domains, IRB, host-mode bridging, zero-trust, whitelisting, tamper-proof module, DTLS/TLS, IPSec, DDOS protection, control plane protection, classification, prioritization, low latency queuing, remarking, shaping, scheduling, policing, mirroring, …
Encapsulations	Generic Routing Encapsulation (GRE), IPSec, Ethernet, 802.1q VLAN, CHAP/PAP for PPP over Ethernet (PPPoE)
Traffic management	Quality of Service (QoS), COS marking, Per Tunnel QOS, app-aware routing, Weighted Random Early Detection (WRED), loss/latency and jitter monitoring, route policies, app-aware routing, control policy, data policy, ACL policy, VPN membership policy, multi-VRF support, Performance Routing (PfR), Layer 7 Health Check to Zscaler, Tunnel support to Secure Internet Gateway (SIG), SSH Authentication …
Cryptographic algorithms	Encryption: AES-256 (in CBC and GCM modes), Internet Key Exchange (IKE), Cisco PKI; Authentication: Authentication, Authorization, and Accounting (AAA), RSA (2048 bit), Integrated QAT, ESP-256-CBC, Authentication Header, HMAC-SHA1, ECDSA (256/384 bit); Integrity: HMAC-MD5, SHA-1, SHA-2, HMAC_SHA256, HMAC_SHA384, HMAC_SHA512, SHA256 support for standard IPSEC Tunnel
Enterprise Firewall with Application Awareness	A stateful firewall with NBAR2 application detection engine to provide application visibility and granular control, capable of detecting 1400+ applications. Supported on Viptela OS also.
Intrusion Prevention System	This system is backed by Cisco Talos signatures and are updated automatically. The Intrusion Prevention System is deployed using a security virtual image.
URL Filtering	Enforces acceptable use controls to block or allow URLs based on 82 different categories and a web reputation score. The URL Filtering system is deployed using a security virtual image.
Advanced Malware Protection	Global threat intelligence, advanced sandboxing, and real-time malware blocking to prevent breaches. It also continuously analyses file activity across your extended network, so you can quickly detect, contain, and remove advanced malware. The Advanced Malware Protection system is deployed using a security virtual image.
Cisco Umbrella Integration	Cloud-delivered enterprise network security which provides users with a first line of defence against cyber security threats.
Authentication and security	TACACS+; RADIUS; Local, role-based access control
Modem information	WP7607 - ISR1100-4GLTEGB; WP7610 - ISR 1100-4GLTENA
Seri	Releases supported

Sipariş Bilgileri 1 satır

Satış Sonu (End-of-Sale) Tarihi	28.07.2026

Genel bakış

Cisco ISR1100-4GLTENA kullanım alanları ve özellikleri.

Cisco ISR1100-4GLTENA, ISR 1100 ailesinden şube ve kurumsal ağlar için router platformudur.

Part of the Cisco ® 1000 Series Integrated Services Routers (ISR), the ISR 1100 Series and ISR 1100X Series are powered by Viptela ® operating system or IOS XE SD-WAN operating system. These devices combine WAN and comprehensive security in a wired high-performance platform. The ISR 1100 Series and ISR 1100X Series combine an enterprise grade platform with best-in-class SD-WAN. The ISR 1100 Series come with 4GB DRAM, whereas the ISR 1100X Series offer 8GB DRAM.

Cisco Software-Defined WAN (SD-WAN) is a cloud-first architecture that provides unparalleled visibility across your WAN, optimal connectivity for end users, and the most comprehensive security platform to protect your network. Cisco SD-WAN provides transport independence, rich network, and security services as well as endpoint flexibility.

Öne Çıkan Özellikler

4 Port GE LAN
4G LTE
Lightweight, compact size with low power consumption
High performance to run concurrent services
High availability and business continuity
Consistent, high application performance levels
Risk mitigation with multilevel security
Remote configuration and management to keep local IT staff lean
Lower WAN expenditures
Pay as you grow: IPsec performance upgrade model
IT consolidation, space savings, and improved TCO
Security services

Tüm özellikler

4 Port GE LAN
4G LTE
Lightweight, compact size with low power consumption
High performance to run concurrent services
High availability and business continuity
Consistent, high application performance levels
Risk mitigation with multilevel security
Remote configuration and management to keep local IT staff lean
Lower WAN expenditures
Pay as you grow: IPsec performance upgrade model
IT consolidation, space savings, and improved TCO
Security services
Multicore architecture
Integrated Gigabit Ethernet ports
Console access
USB 3.0

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

ISR 1100 Datasheet (EN)PDF · ISR1100-4GLTENA ISR 1100 Datasheet (PDF)PDF · ISR1100-4GLTENA

Sık sorulanlar

ISR1100-4GLTENA hakkında kısa yanıtlar.

ISR1100-4GLTENA fiyatı ne kadar?

ISR1100-4GLTENA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
