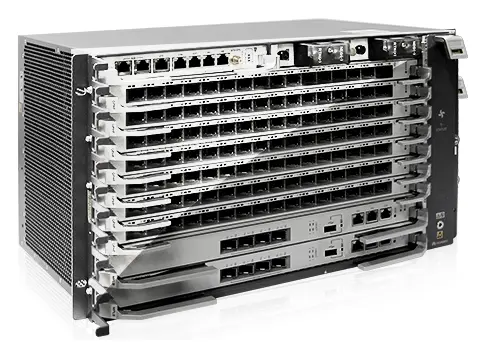

Huawei EA5800-X7 OLT
Model
EA5800-X7Huawei EA5800-X7 OLT: Distributed Architecture, High Reliability, Uninterrupted Service Upgrades, Ultra-Band Access.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Distributed Architecture
- High Reliability
- Uninterrupted Service Upgrades
- Ultra-Band Access
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 25 satır
| Supported Cabinets | N63E-22, N66E-22 |
|---|---|
| Board Configuration | Control board slots: 8, 9; Service board or upstream interface board slots: 1 to 7; Universal interface board slot: 0; Power board slots: 10, 11 |
| Boyutlar (G x D x Y) | 6U high and 19 inches wide; Excluding mounting brackets: 442 x 268.7 x 263.9 mm; Including IEC mounting brackets: 482.6 x 268.7 x 263.9 mm; Including ETSI mounting brackets: 535 x 268.7 x 263.9 mm |
| Maximum Weight (Including Mounting Brackets) | 26 kg |
| Maximum Input Current | 40 A |
| Power Supply Modes | DC power support (dual for backup) |
| Working Voltage Range | –38.4 V to –72 V DC |
| Rated Voltage | –48 V/–60 V |
| Ortam Sıcaklığı | –40°C to 65°C. The device can start up at temperatures as low as –25°C.; Note: The 65°C refers to the highest temperature measured at the air intake vent of the service subrack. |
| Ambient Humidity | 5–95% RH |
| Atmospheric Pressure | 70–106 kPa |
| Altitude | 4000 m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of EA5800 varies with altitude. |
| Switching Capacity of the Control Board (Load Sharing Mode) | 8.3 Tbit/s |
| Maximum Bandwidth per Service Slot (Load Sharing Mode) | 200 Gbit/s |
| Maximum Number of Concurrent 4K Video Users | 7000 |
| Maximum Number of ARP/Routing Entries | 131,072 |
| Switching/Forwarding Delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets with a delay shorter than 20 μs. |
| Bit Error Rate (BER) in Full Load | A BER smaller than 10e for a port that transmits data in full load. |
| System Reliability Specifications | System availability for typical configurations: > 99.999%; Mean-Time-Between-Failures (MTBF): Approximately 45 years.; Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact relevant Huawei engineers. |
| GPON Ports | 112 |
| XG-PON Ports | 112 |
| XGS-PON Ports | 112 |
| XGS-PON&GPON Combo Ports | 112 |
| GE/FE Ports | 336 |
| 10 GE Ports | 168 |
Genel bakış
Huawei EA5800-X7 kullanım alanları ve özellikleri.
Huawei SmartAX EA5800 series, including EA5800-X17, X15, X7, and X2, build ultra-broadband, green, and intelligent aggregation access networks for users. Featuring distributed architecture, this multi-service access device provides users with a unified transmission platform for broadband, wireless, video, and video security.
GPON、XG(S)-PON、XGS-PON&GPON Combo、50G-PON&XGS-GPON Combo、 10GE/2.5GE/GE access are all supported for multiple network construction modes, including Fiber To The Office (FTTO), Fiber To The Machine (FTTM), and Fiber To The Home (FTTH). One optical network covers all services, simplifying network architecture and reducing Operating Expenditure (OPEX).
EA5800 is available in small, medium, and large specifications, to meet the diverse needs of enterprises.
Distributed Architecture
Service processing, previously centered on the control board, is now distributed to every service board. The system switching capacity and performance are improved, with the throughput of a single slot reaching up to 200 Gbit/s
High Reliability
Type B/Type C dual-homing implements backup protection for remote Disaster Recovery (DR) through redundancy backup, by configuring two control boards and two power boards. Multiple uplinks are also configured to provide a secure and reliable operating environment
Uninterrupted Service Upgrades
Distributed architecture separates the control and forwarding planes, allowing software upgrades without any service interruption. User complaints are reduced and service downtime is eliminated
Ultra-Band Access
Support 50G PON Ultra-Band Access, Provide 50G bandwidth to rooms, desktops, homes, and machines, Meet the large bandwidth requirements of AI, AR/VR, industrial Internet and other applications, and Provide large bandwidth carrying Wi-Fi 7 wireless coverage
Nerelerde kullanılır?
FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.
