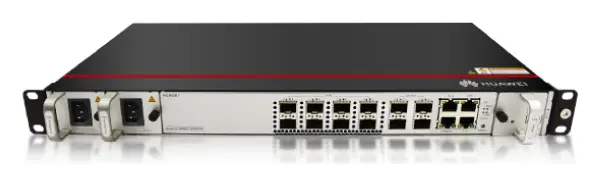

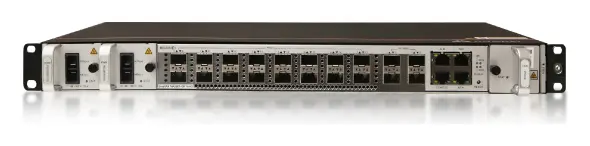

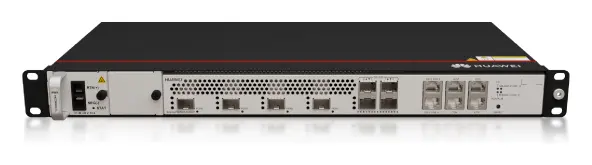

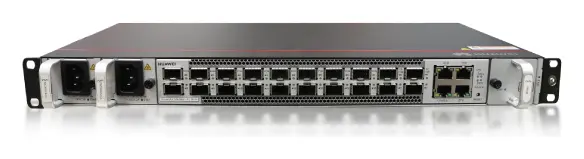

Huawei MA5801-FL04 OLT

ModelMA5801-FL04

Huawei MA5801-FL04 OLT: Lightweight and small size, Less than 5 kg 1 U installation space, High reliability, Dual AC/DC power supplies Type B/C quick switchover, Easy installation and flexible deployment.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Lightweight and small size
Less than 5 kg 1 U installation space
High reliability
Dual AC/DC power supplies Type B/C quick switchover
Easy installation and flexible deployment

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 20 satır

Dimensions (W x D x H) (mm)	Excluding mounting ears: 442 x 220 x 43.6; Including IEC mounting ears: 482.6 x 220 x 43.6; Including ETSI mounting ears: 531 x 220 x 43.6
Weight (full configuration) (kg)	DC Power supply: 3.3; AC Power supply: 3.5
Güç Besleme Modu	DC power supply; AC power supply
Working voltage range	DC power supply: –38.4 V to –72 V; AC power supply: 100–240 V
Rated voltage	DC power supply: –48 V/–60 V; AC power supply: 110 V/220 V
Maximum input current	DC power supply: 6 A; AC power supply: 2.5 A
Ortam Sıcaklığı	–40°C to +65°C; The device can start up at a lowest temperature of –25°C.; NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity	5%–95% RH
Atmospheric pressure	70–106 kPa
Altitude	< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity	185 Gbit/s
MAC addresses	32768
Access ONT	512
IPv4 routing table	8192
IPv6 routing table	4096
ARP table	16384
Bit error rate (BER) in full load	When FEC is enabled, the GPON BER is less than 10 e-10, and the XG(S)-PON BER is less than 10 e-12.
Upstream ports	optical ports: 4 x GE/10GE; electrical ports: 2 x GE/2.5GE
Servis Portları	4 x FlexPON (GPON, XG(S)-PON, XG(S)-PON&GPON Combo)
System reliability specifications	System availability in typical configuration: > 99.999%; Mean time between failures (MTBF): about 45 years; NOTE: Due to different network environments and different boards used by devices, the MA5801 MTBF (45 years) is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact Huawei technical support.

Genel bakış

Huawei MA5801-FL04 kullanım alanları ve özellikleri.

As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.

The MA5801 series OLT is a compact and low-density box-shaped OLT. It provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.

Lightweight and small size

Less than 5 kg 1 U installation space

High reliability

Dual AC/DC power supplies Type B/C quick switchover

Easy installation and flexible deployment

Suitable for both indoor and outdoor cabinets The matching small outdoor cabinet can be installed on a pole, tower, or wall

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

MA5801-GP08-H3 Product Datasheet 02.pdfPDF · MA5801-FL04 MA5801-GP16-H2 Product Datasheet 02.pdfPDF · MA5801-FL04 MA5801-FL04-H1 Product Datasheet 02.pdfPDF · MA5801-FL04 MA5801-FL16-H1 Product Datasheet 02.pdfPDF · MA5801-FL04

Sık sorulanlar

MA5801-FL04 hakkında kısa yanıtlar.

MA5801-FL04 fiyatı ne kadar?

MA5801-FL04 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
