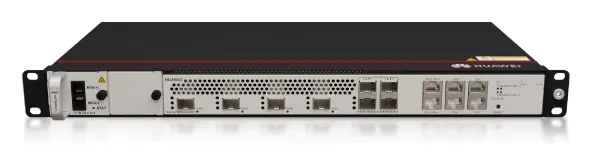

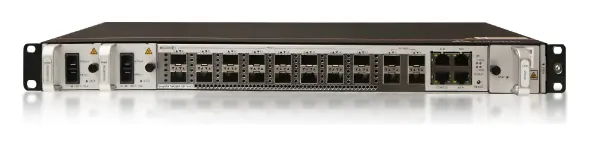

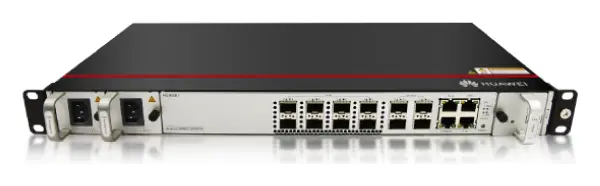

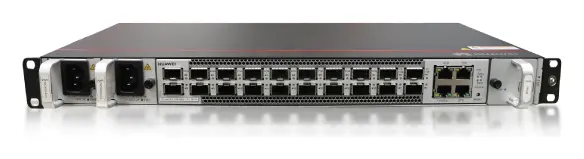

Huawei MA5801-GP08 OLT
Model
MA5801-GP08Huawei MA5801-GP08 OLT: Lightweight and small size, Less than 5 kg 1 U installation space, High reliability, Dual AC/DC power supplies Type B/C quick switchover, Easy installation and flexible deployment.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Lightweight and small size
- Less than 5 kg 1 U installation space
- High reliability
- Dual AC/DC power supplies Type B/C quick switchover
- Easy installation and flexible deployment
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 20 satır
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6; Including IEC mounting ears: 482.6 x 220 x 43.6; Including ETSI mounting ears: 531 x 220 x 43.6 |
|---|---|
| Weight (full configuration) (kg) | DC Power supply: 4.2; AC Power supply: 4.6 |
| Güç Besleme Modu | DC power supply (dual backup); AC power supply (dual backup) |
| Working voltage range | DC power supply: –38.4 V to –72 V; AC power supply: 100–240 V |
| Rated voltage | DC power supply: –48 V/–60 V; AC power supply: 110 V/220 V |
| Maximum input current | DC power supply: 6 A; AC power supply: 2.5 A |
| Ortam Sıcaklığı | –40°C to +65°C; The device can start up at a lowest temperature of –25°C.; NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| System switching capacity | 110 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Servis Portları | 8 GPON |
| System reliability specifications | System availability for the typical configuration: > 99.999%; Mean time between failures (MTBF): about 61 years; NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (61 years) of the MA5801 is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. |
Genel bakış
Huawei MA5801-GP08 kullanım alanları ve özellikleri.
As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.
The MA5801 series OLT is a compact and low-density box-shaped OLT. It provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.
Lightweight and small size
Less than 5 kg 1 U installation space
High reliability
Dual AC/DC power supplies Type B/C quick switchover
Easy installation and flexible deployment
Suitable for both indoor and outdoor cabinets The matching small outdoor cabinet can be installed on a pole, tower, or wall
Nerelerde kullanılır?
FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.
Sık sorulanlar
MA5801-GP08 hakkında kısa yanıtlar.
MA5801-GP08 fiyatı ne kadar?
MA5801-GP08 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
