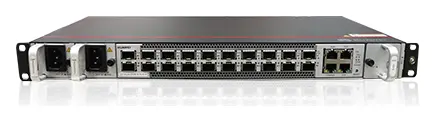

Huawei EA5801E-FL16 OLT

ModelEA5801E-FL16

Huawei EA5801E-FL16 OLT: High reliability, Easy installation, Smooth evolution.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High reliability
Easy installation
Smooth evolution

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 21 satır

Dimensions (W x D x H) (mm)	Excluding mounting ears: 442 x 220 x 43.6; Including IEC mounting ears: 482.6 x 220 x 43.6; Including ETSI mounting ears: 535 x 220 x 43.6
Maximum fully-loaded weight	5 kg
Güç Besleme Modu	• DC power supply (dual backup); • AC power supply (dual backup)
Working voltage range	• DC power supply: –38.4 V to –72 V; • AC power supply: 100–240 V
Rated voltage	• DC power supply: –48 V/–60 V; • AC power supply: 110 V/ 220V
Maximum input current	• DC power supply: 6 A; • AC power supply: 2.5 A
Ortam Sıcaklığı	–40°C to +65°C; The device can start up at a lowest temperature of –25°C.; NOTE; The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity	5%–95% RH
Atmospheric pressure	70–106 kPa
Altitude	< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity	240 Gbit/s
MAC addresses	32768
Access ONT	2048
IPv4 routing table	8192
IPv6 routing table	4096
ARP table	16384
Bit error rate (BER) in full load	When FEC is enabled, the GPON BER is less than 10 e-10, and the XG(S)-PON BER is less than 10 e-12.
10GE/GE upstream ports	4 GE/10GE
Servis Portları	16 Flex-PON
System reliability specifications	System availability for the typical configuration: > 99.999%; Mean time between failures (MTBF): about 45 years; NOTE; Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5801E is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers.
Güç Tüketimi	DC power supply:; • Static power consumption: 72W; • Typical power consumption: 127W; • Maximum power consumption: 228W; AC power supply:; • Static power consumption: 73W; • Typical power consumption: 128W; • Maximum power consumption: 229W; NOTE; The power consumption of a product is tested in the following conditions:; • Static power consumption: 25°C, no optical module in optical ports, and no service.; • Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 16 x Flex-PON(XGS Combo

Genel bakış

Huawei EA5801E-FL16 kullanım alanları ve özellikleri.

Huawei OptiXaccess EA5801E-FL16

Huawei OptixXaccess EA5801E-FL16 is a compact and High-density box-shaped OLT. It provides Flex-PON access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

High reliability

Dual AC/DC power supplies. Type B/C quick switchover.

Easy installation

Light weight and small size. Flexibly adapted to various installation scenarios.

Smooth evolution

3-in-1 Flex-PON board. Easily upgrade from GPON to 10G PON.

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (Tüm Teknik Özellikler)PDF · EA5801E-FL16

Sık sorulanlar

EA5801E-FL16 hakkında kısa yanıtlar.

EA5801E-FL16 fiyatı ne kadar?

EA5801E-FL16 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
